Transaxle Connector Layouts

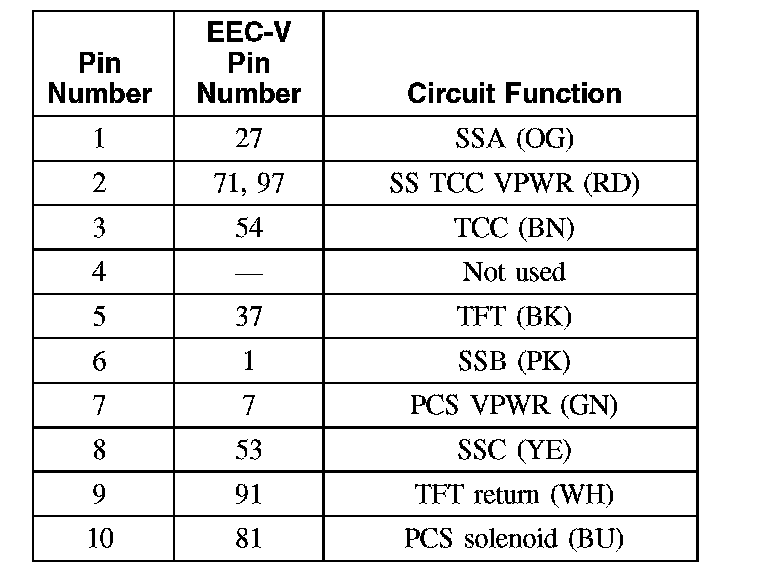

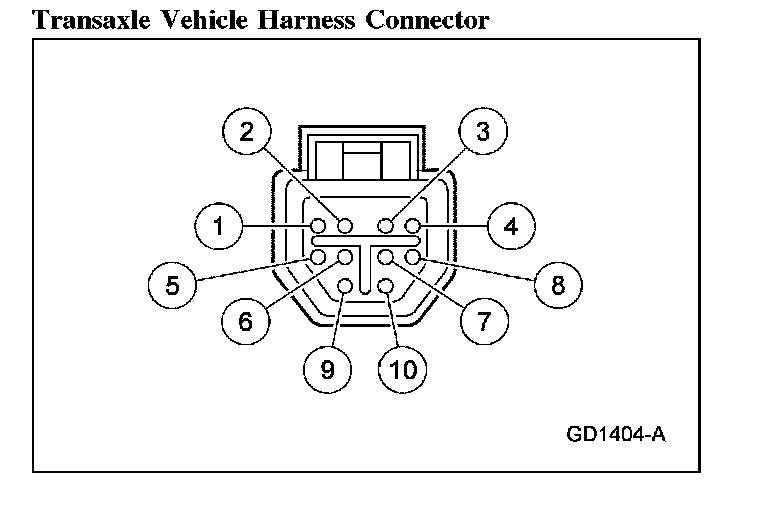

Transaxle Vehicle Harness Connector (Part 1):

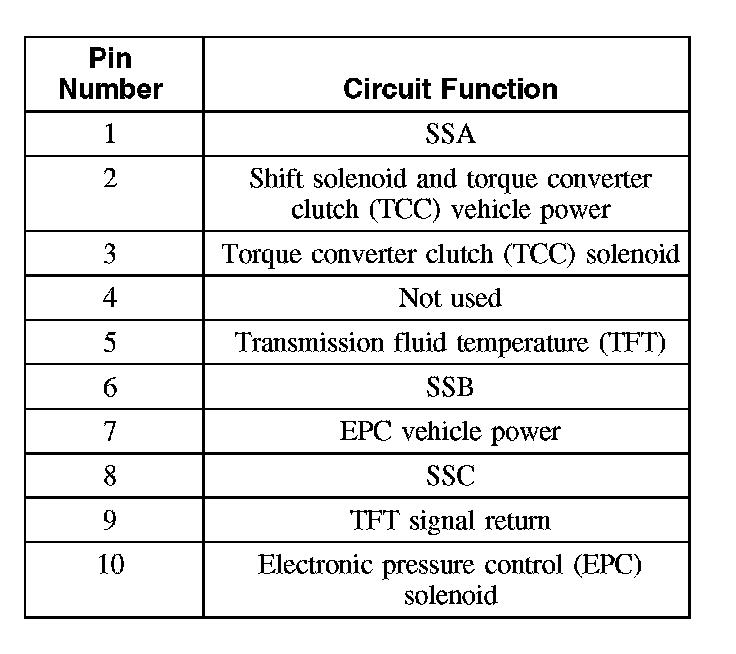

Transaxle Vehicle Harness Connector (Part 2):

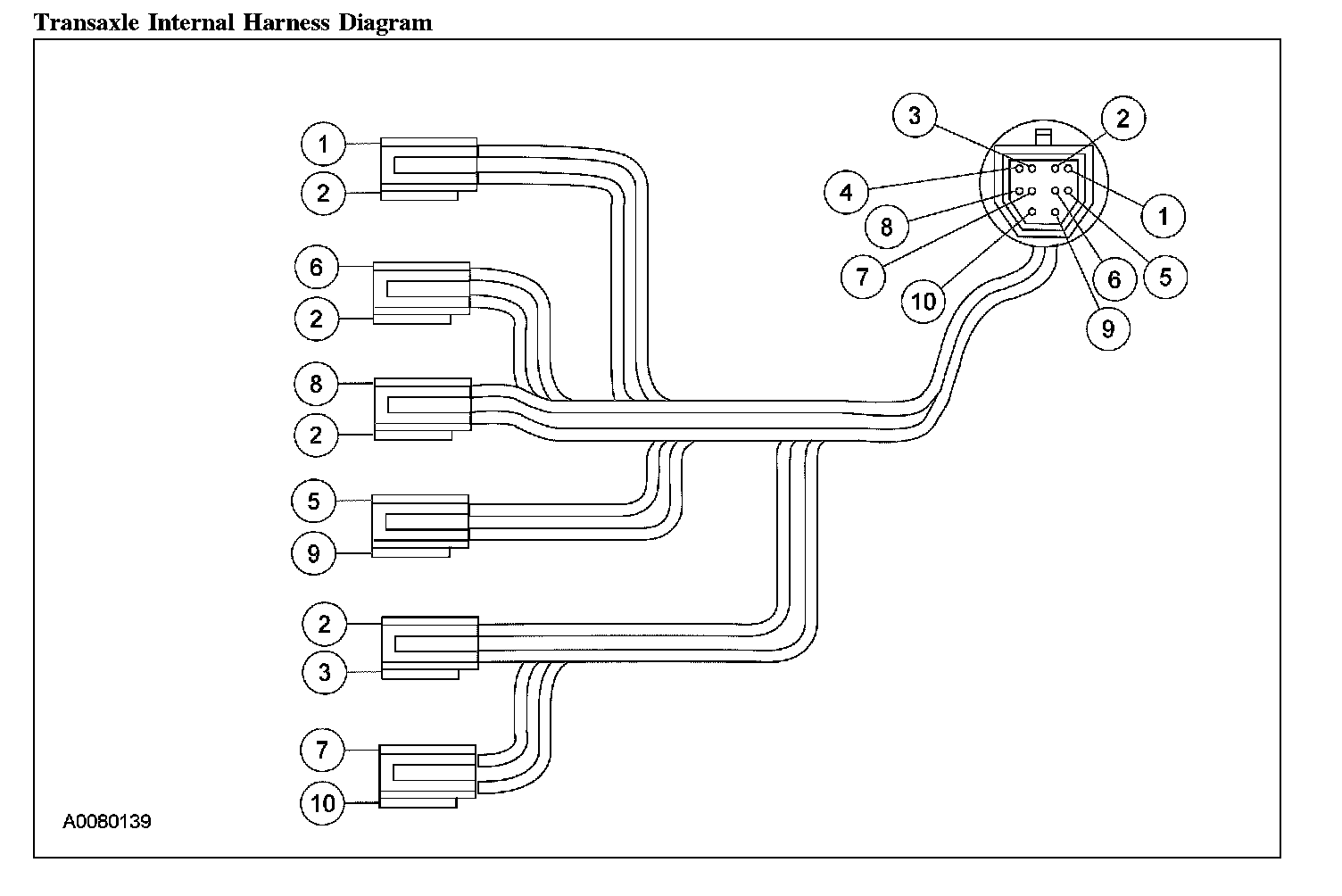

Transaxle Internal Harness Diagram (Part 1):

Transaxle Internal Harness Diagram (Part 2):

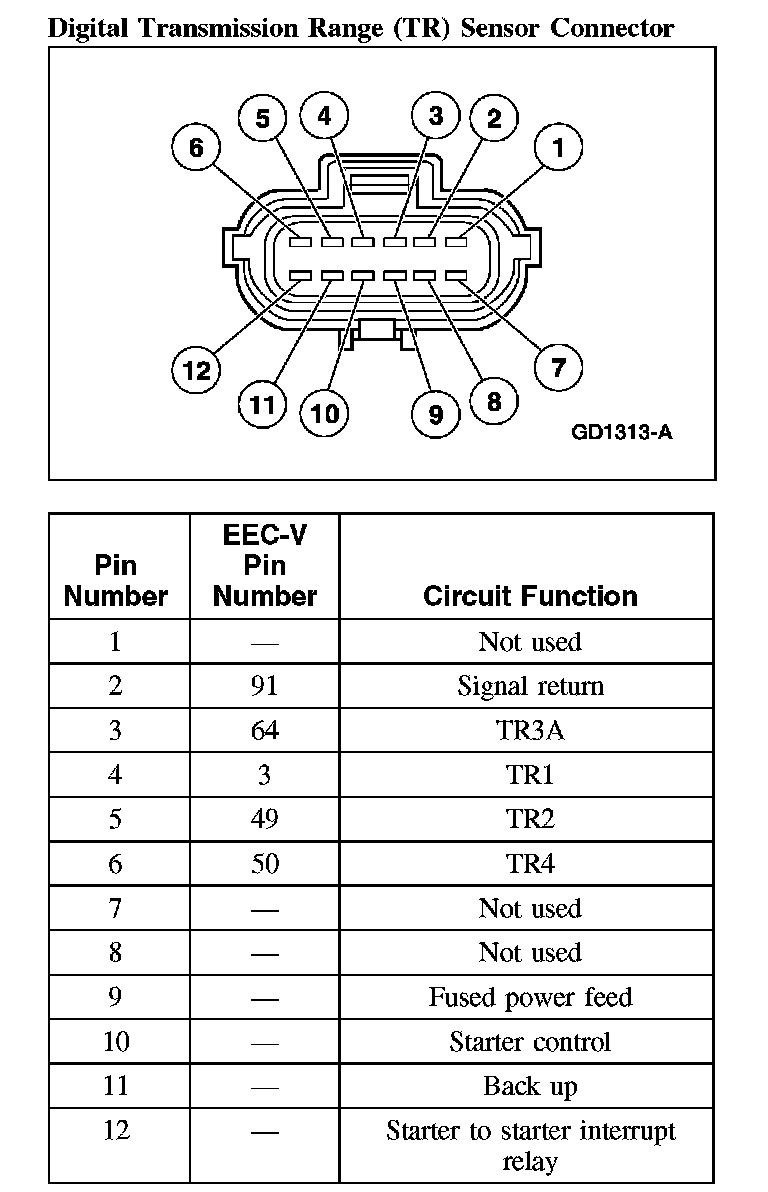

Digital Transmission Range (TR) Sensor Connector:

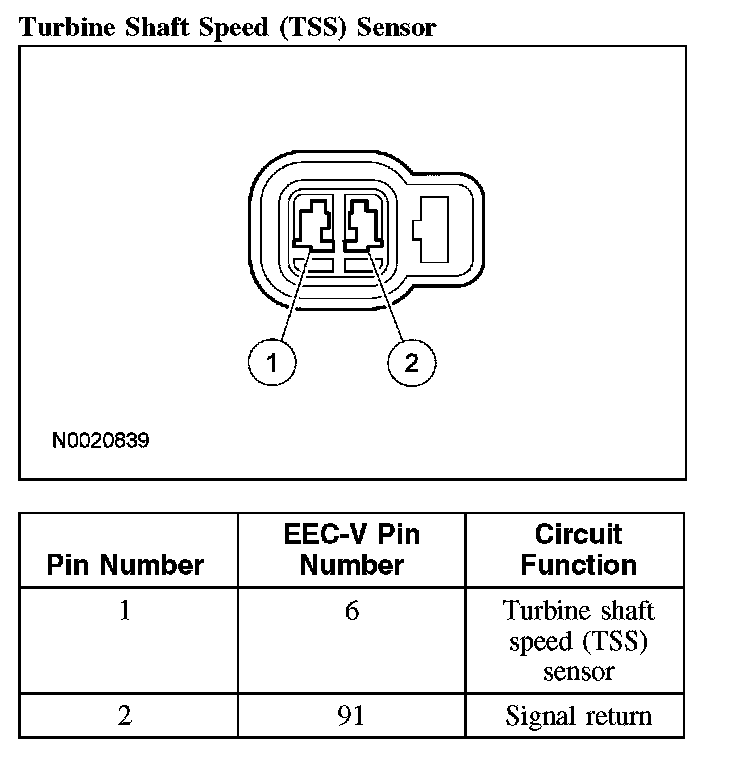

Turbine Shaft Speed (TSS) Sensor:

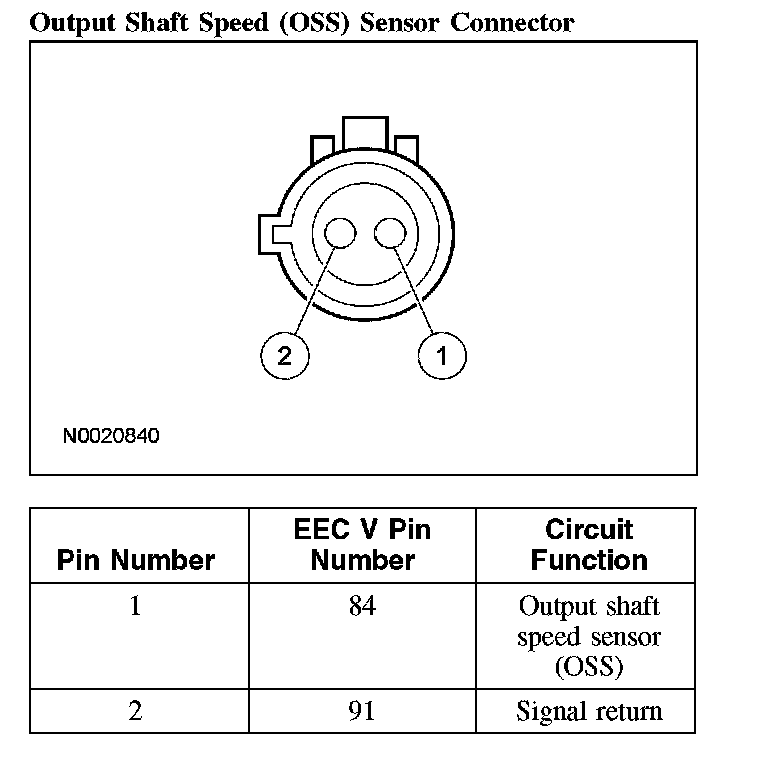

Output Shaft Speed (OSS) Sensor Connector:
