Test G: Output Shaft Speed (OSS) Sensor
Test G: Output Shaft Speed (OSS) Sensor

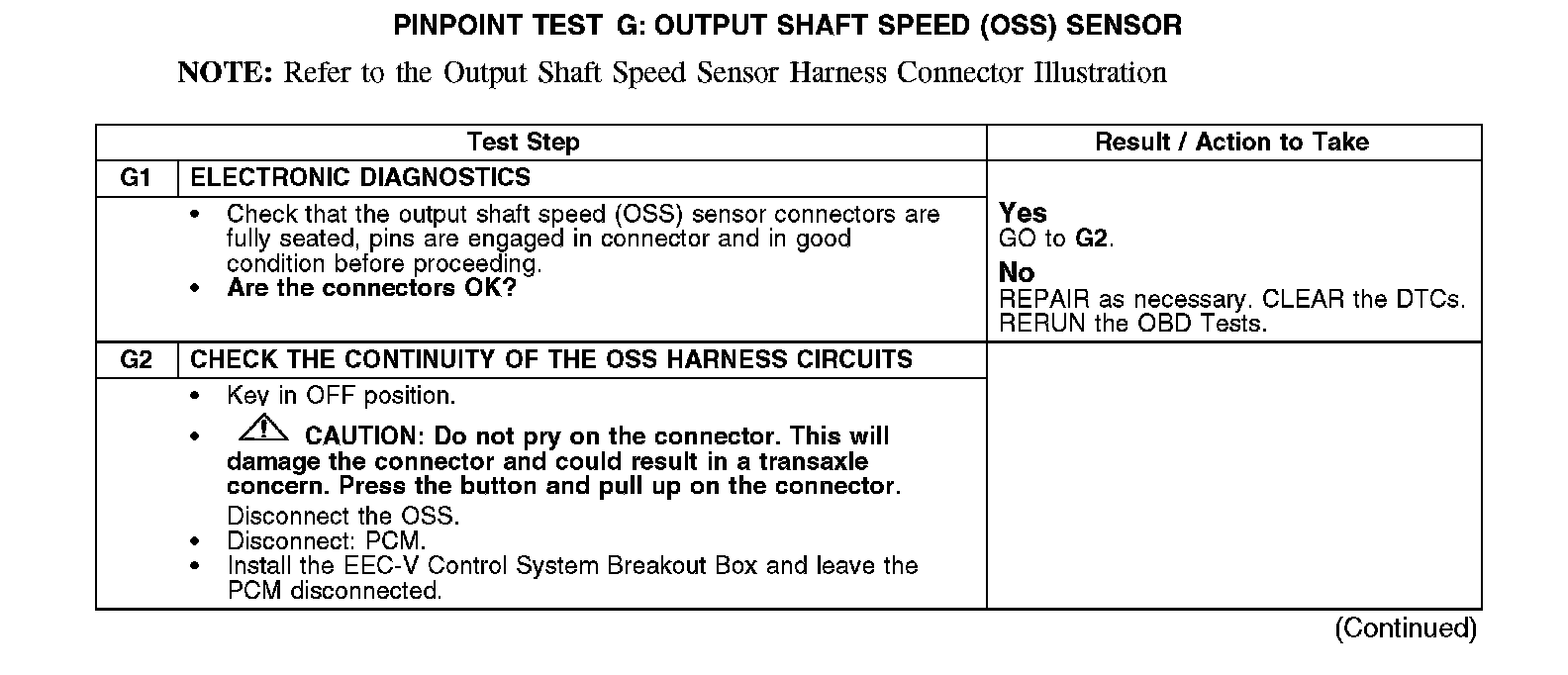

PINPOINT TEST G: OUTPUT SHAFT SPEED (OSS) SENSOR
G1-G2:

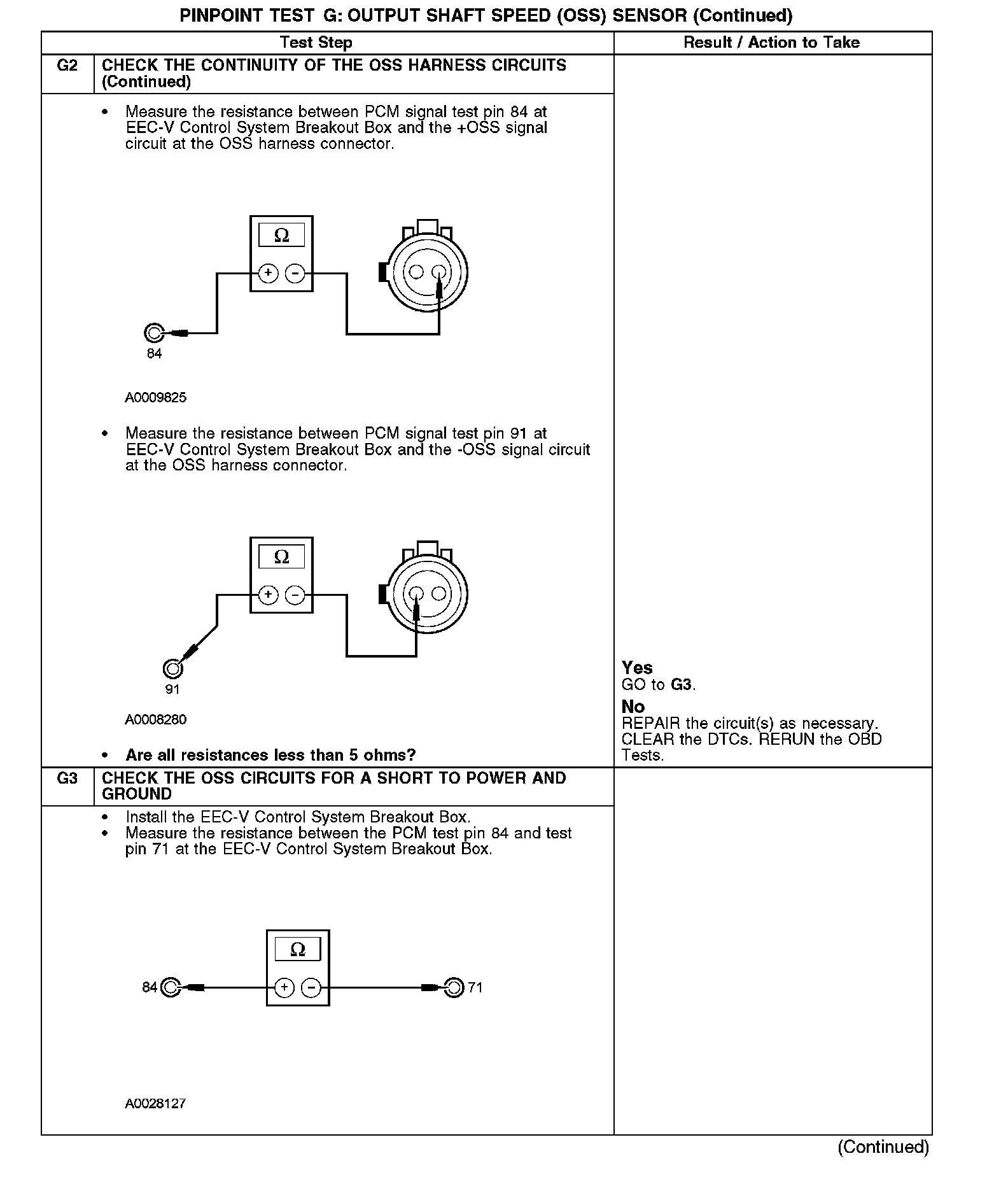

G2-G3:

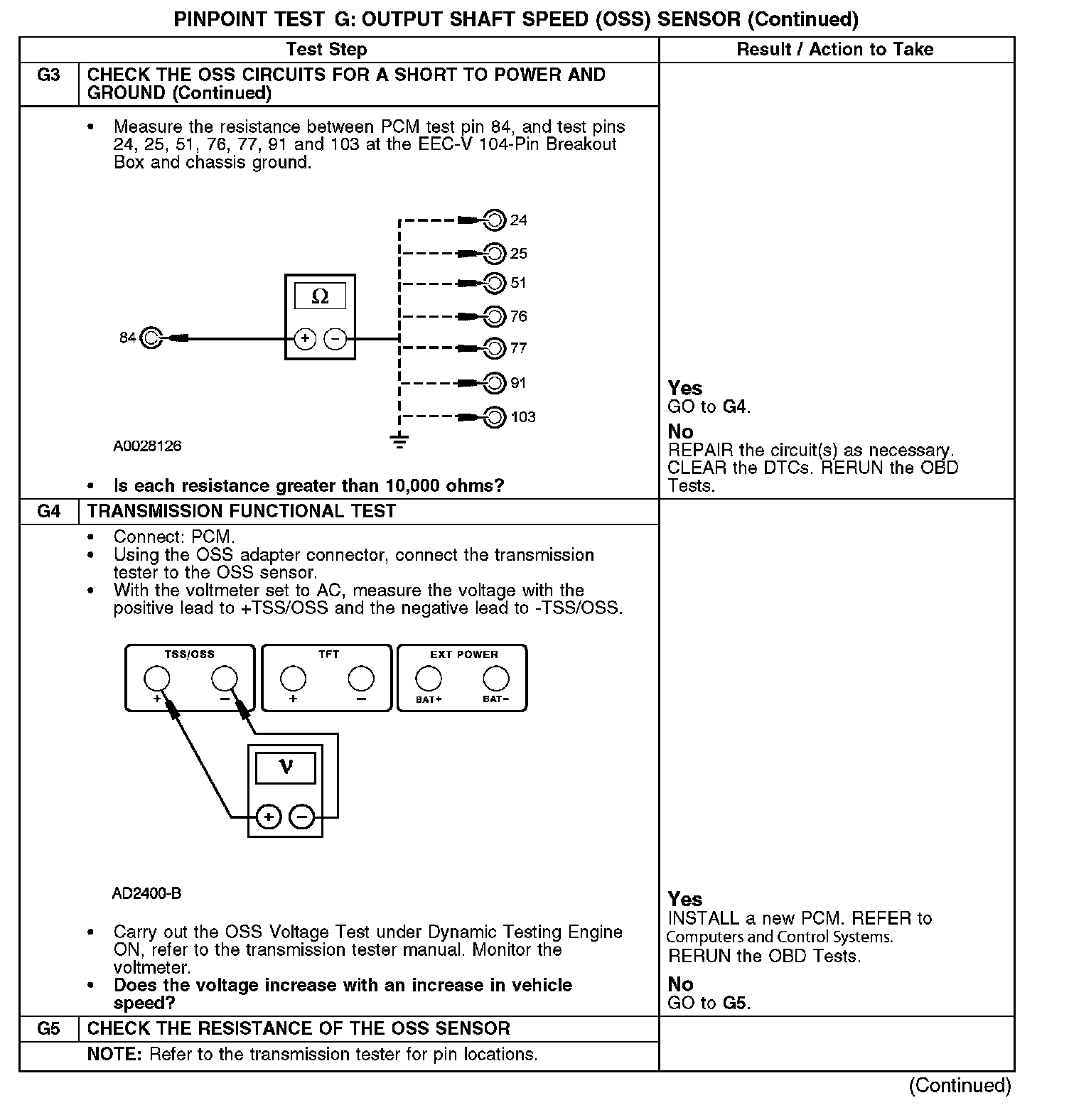

G3-G5:

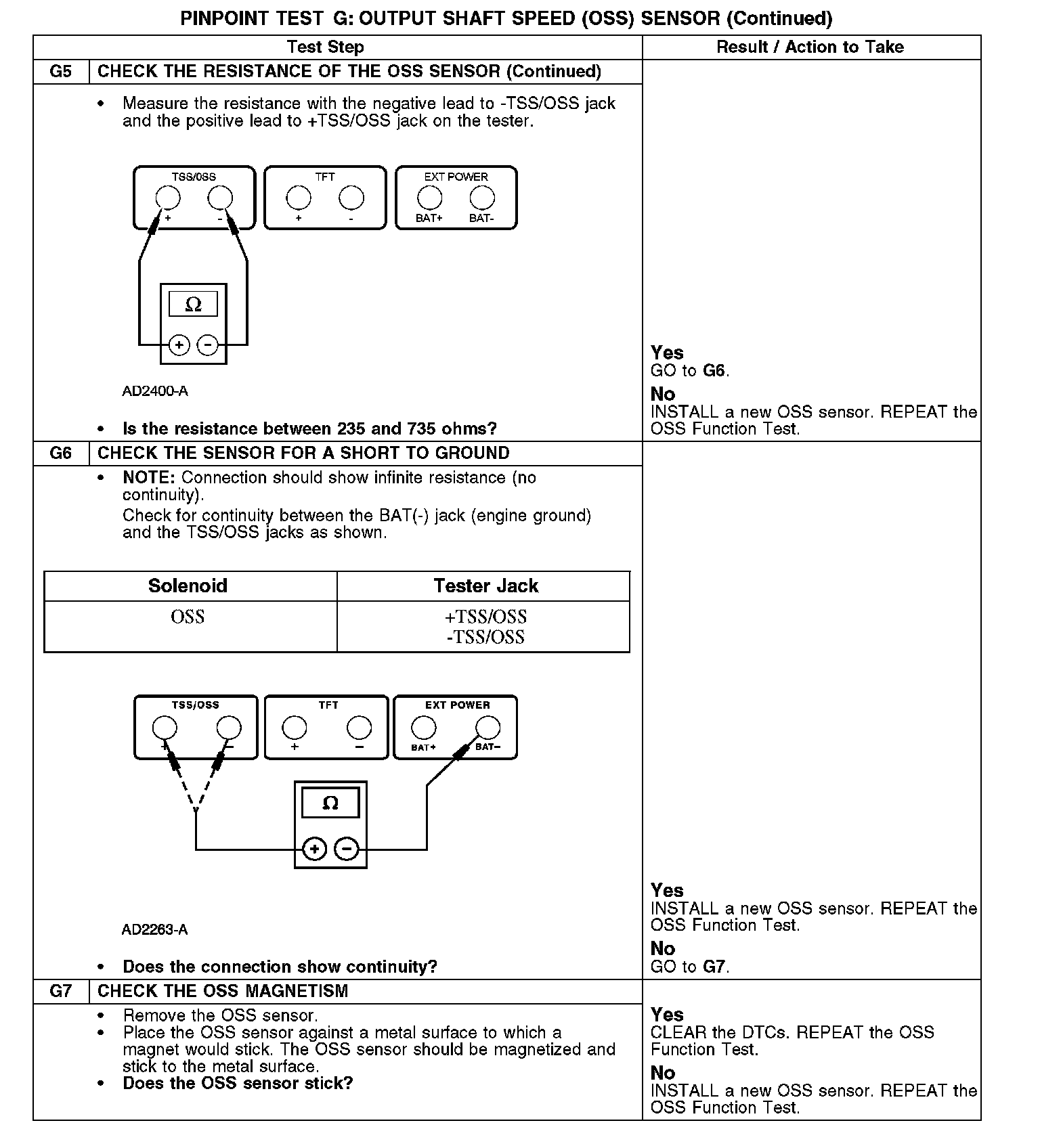

G5-G7:
