Test F: Turbine Shaft Speed (TSS) Sensor

PINPOINT TEST F: TURBINE SHAFT SPEED (TSS) SENSOR

F1-F2:

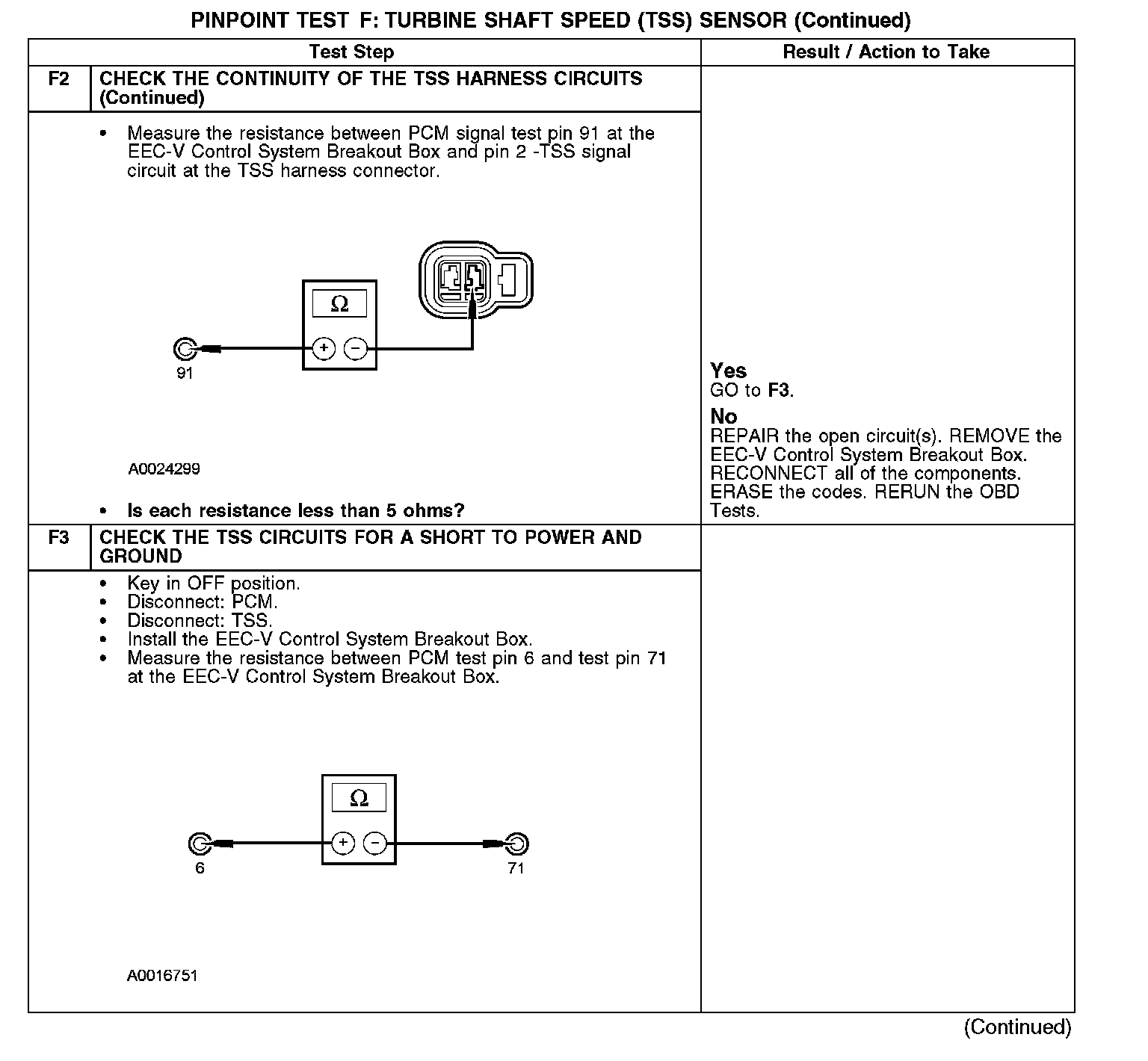

F2-F3:

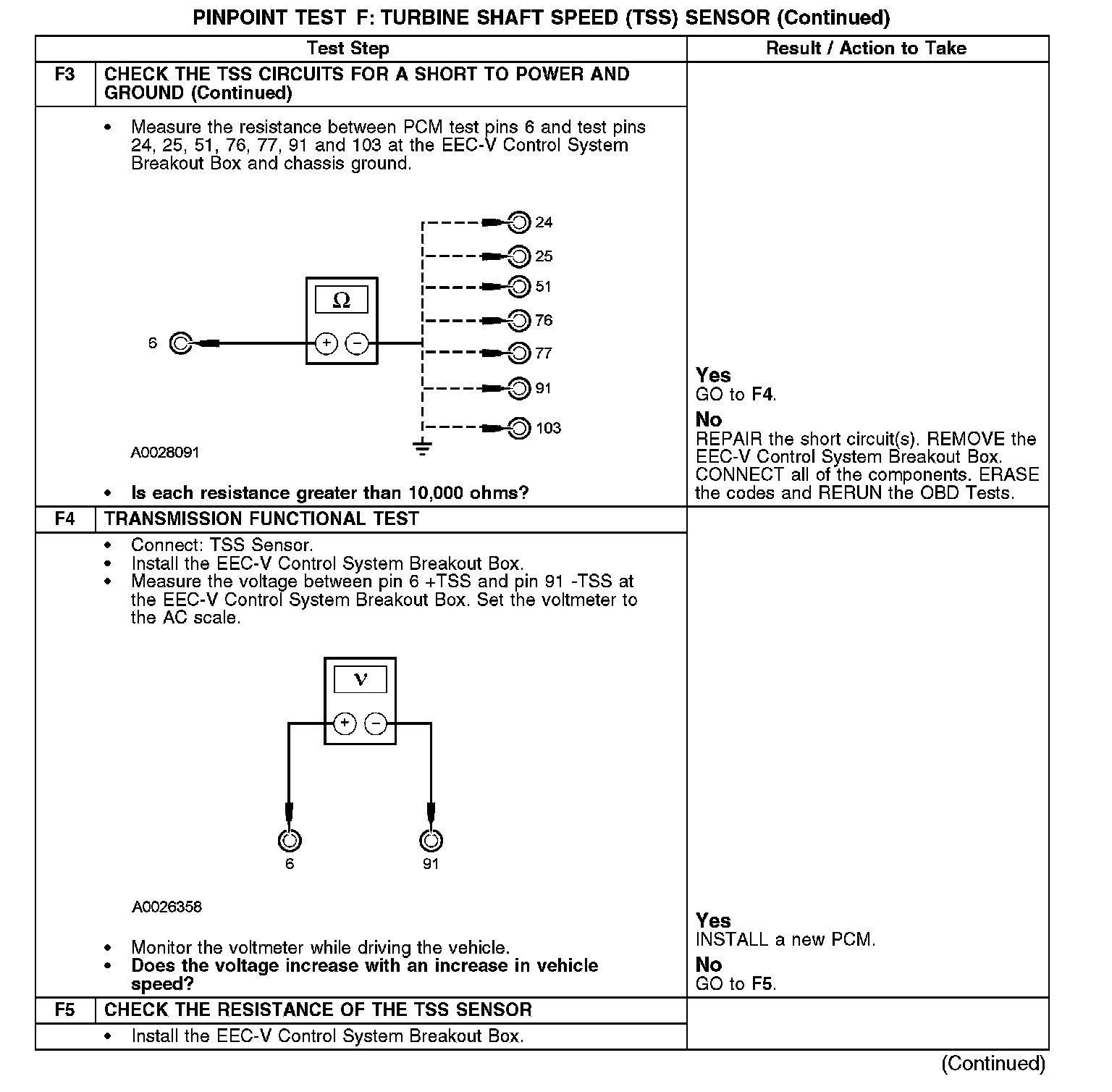

F3-F5:

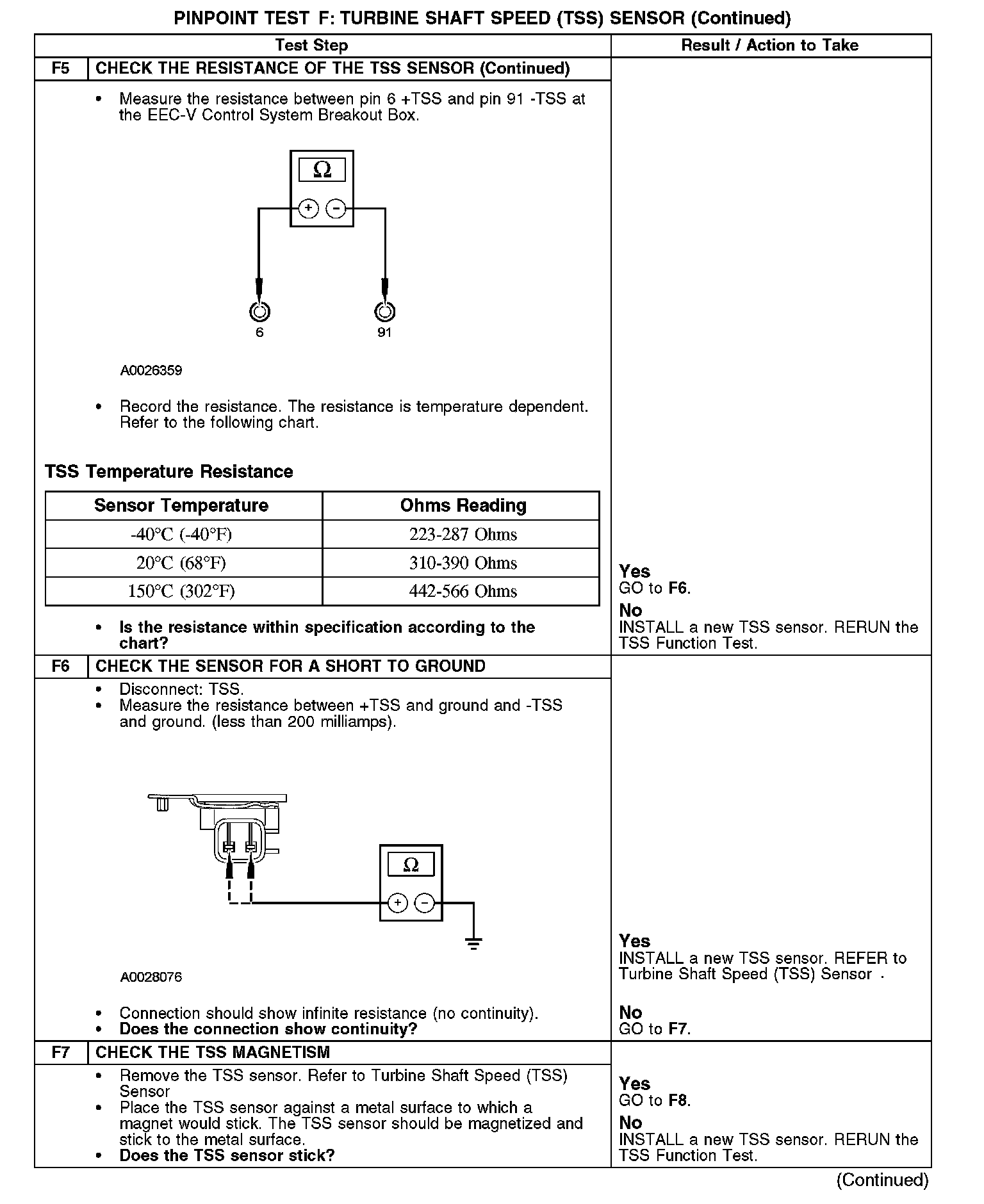

F5-F7:




F8:
