Test E: Electronic Pressure Control (EPC) Solenoid
Test E: Electronic Pressure Control (EPC) Solenoid

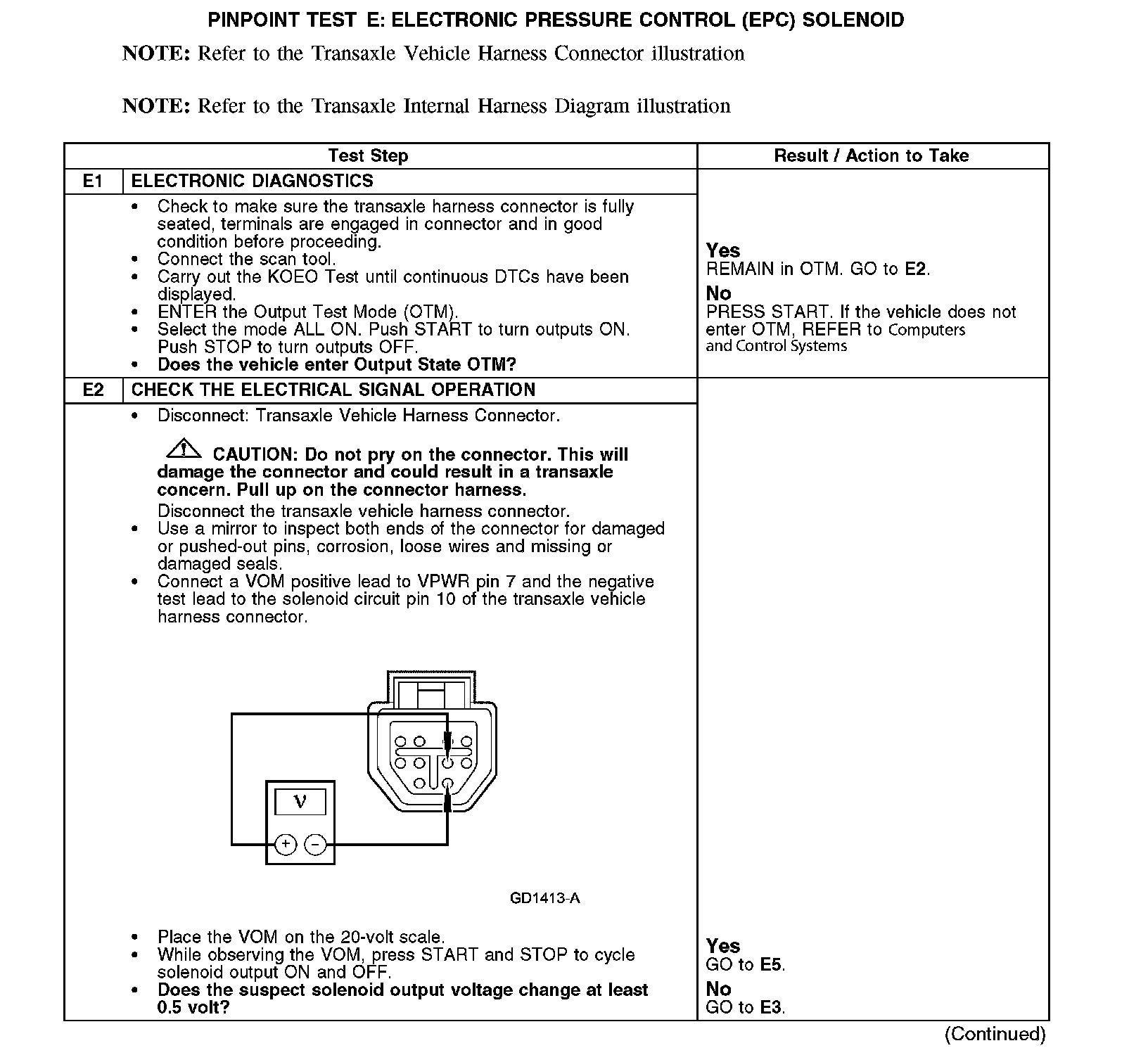

PINPOINT TEST E: ELECTRONIC PRESSURE CONTROL (EPC) SOLENOID
E1-E2:

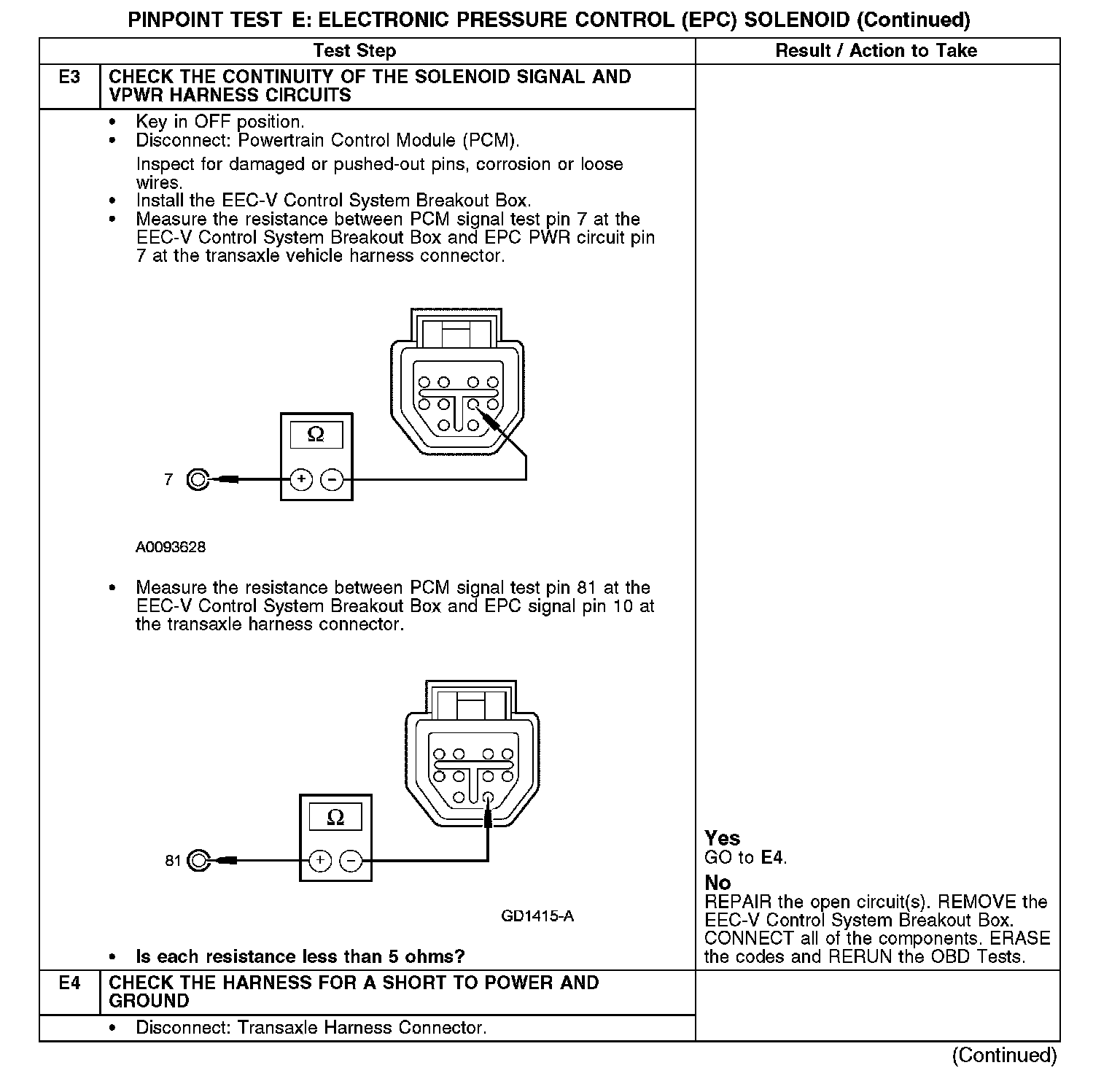

E3-E4:

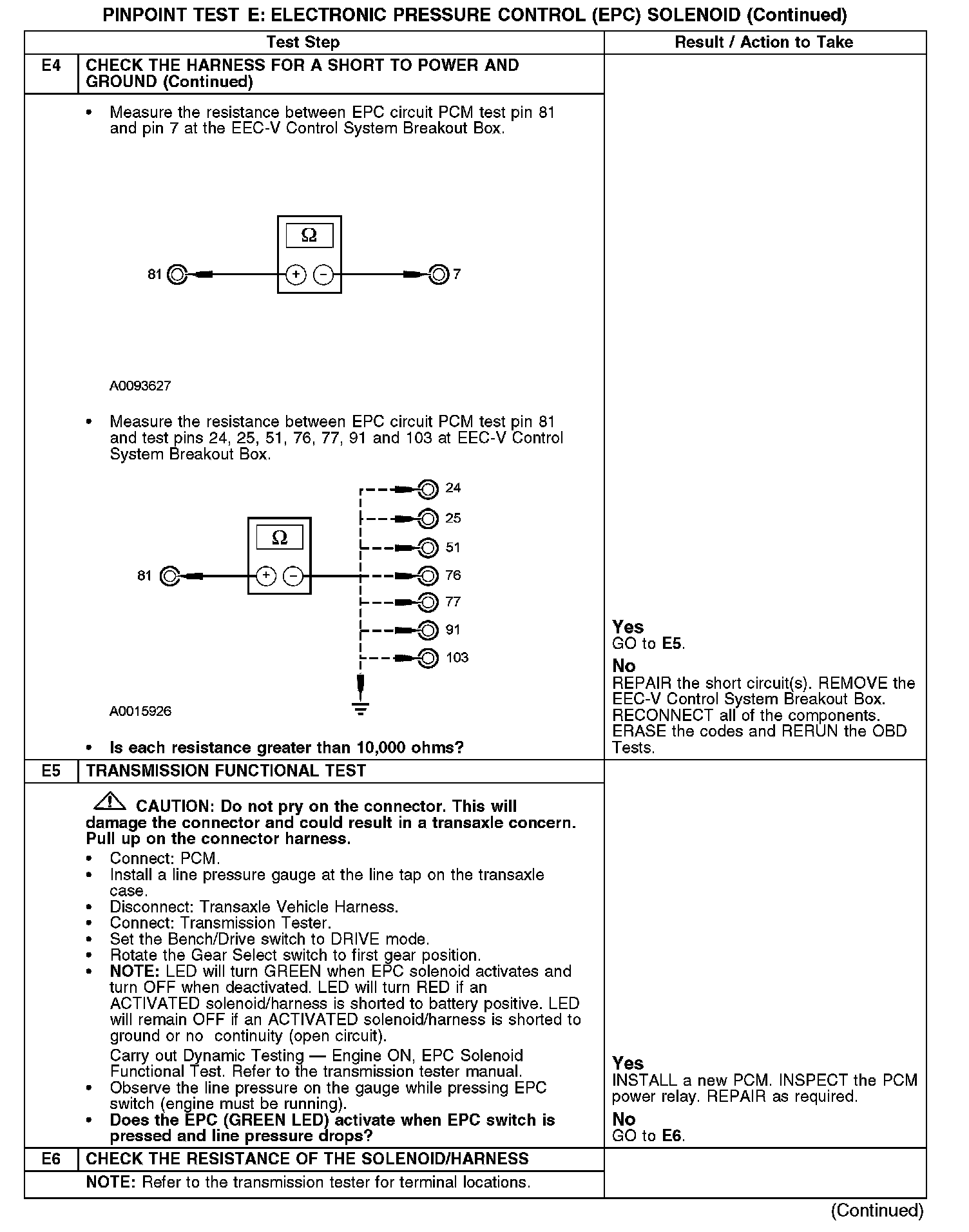

E4-E6:

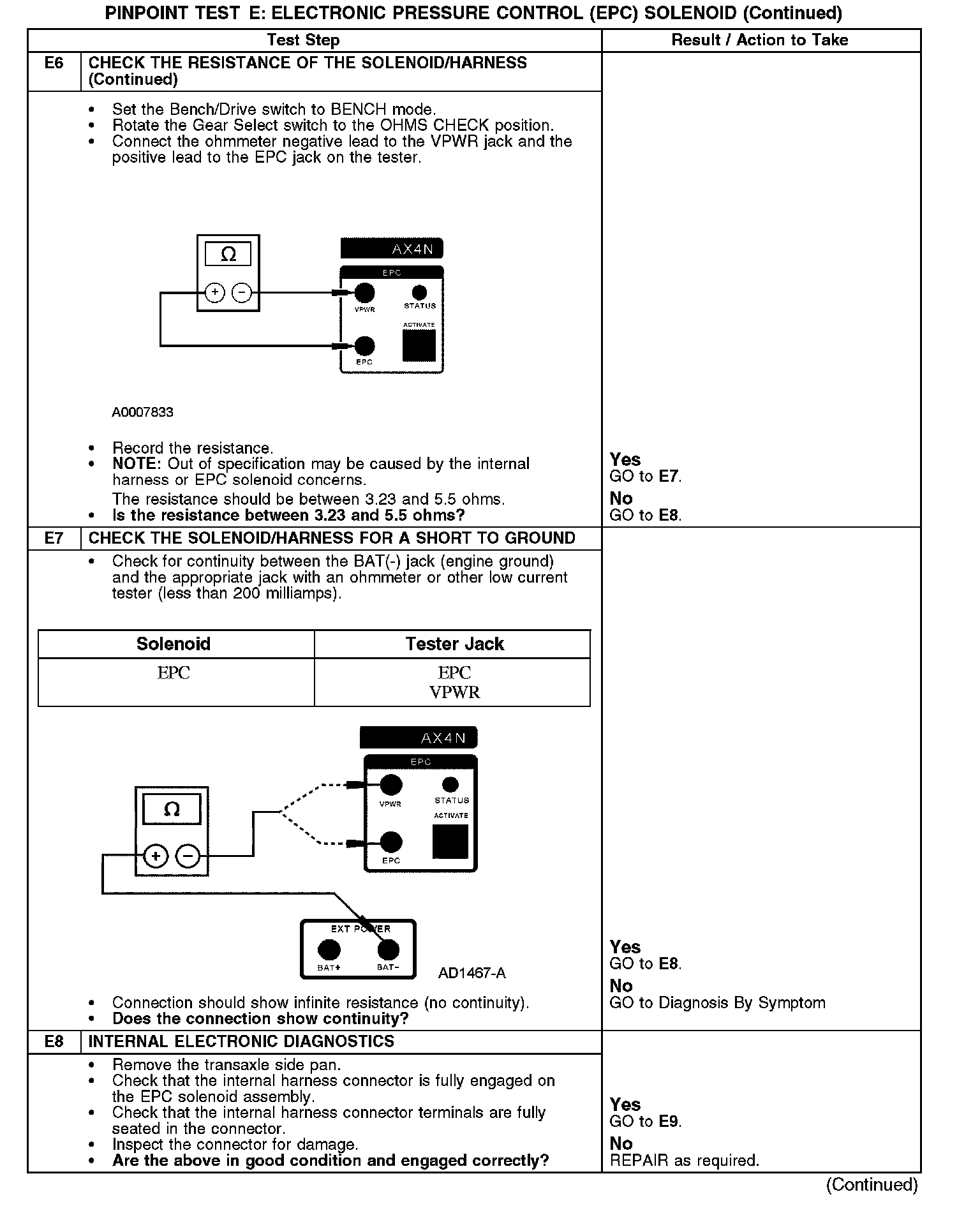

E6-E8:

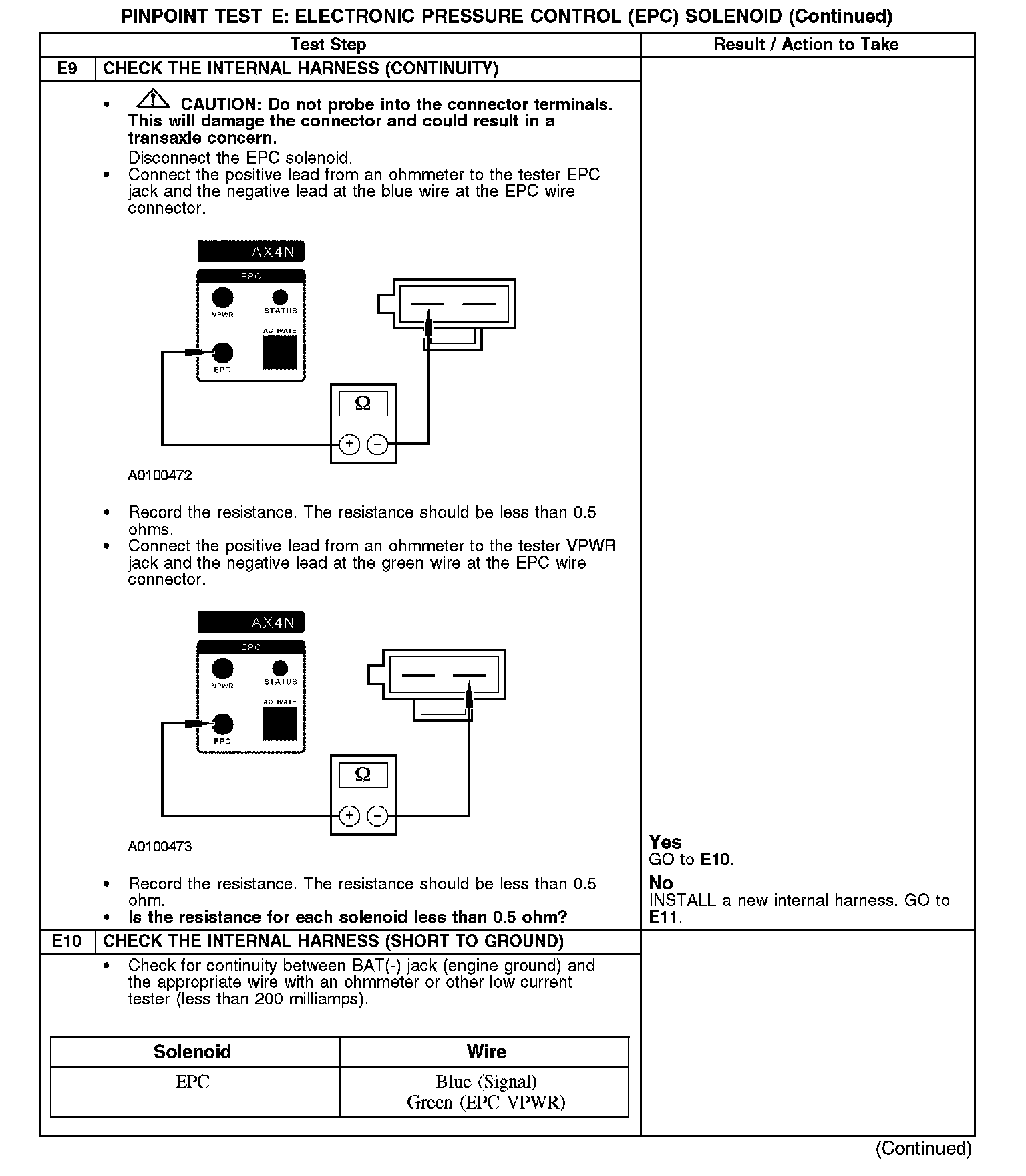

E9-E10:

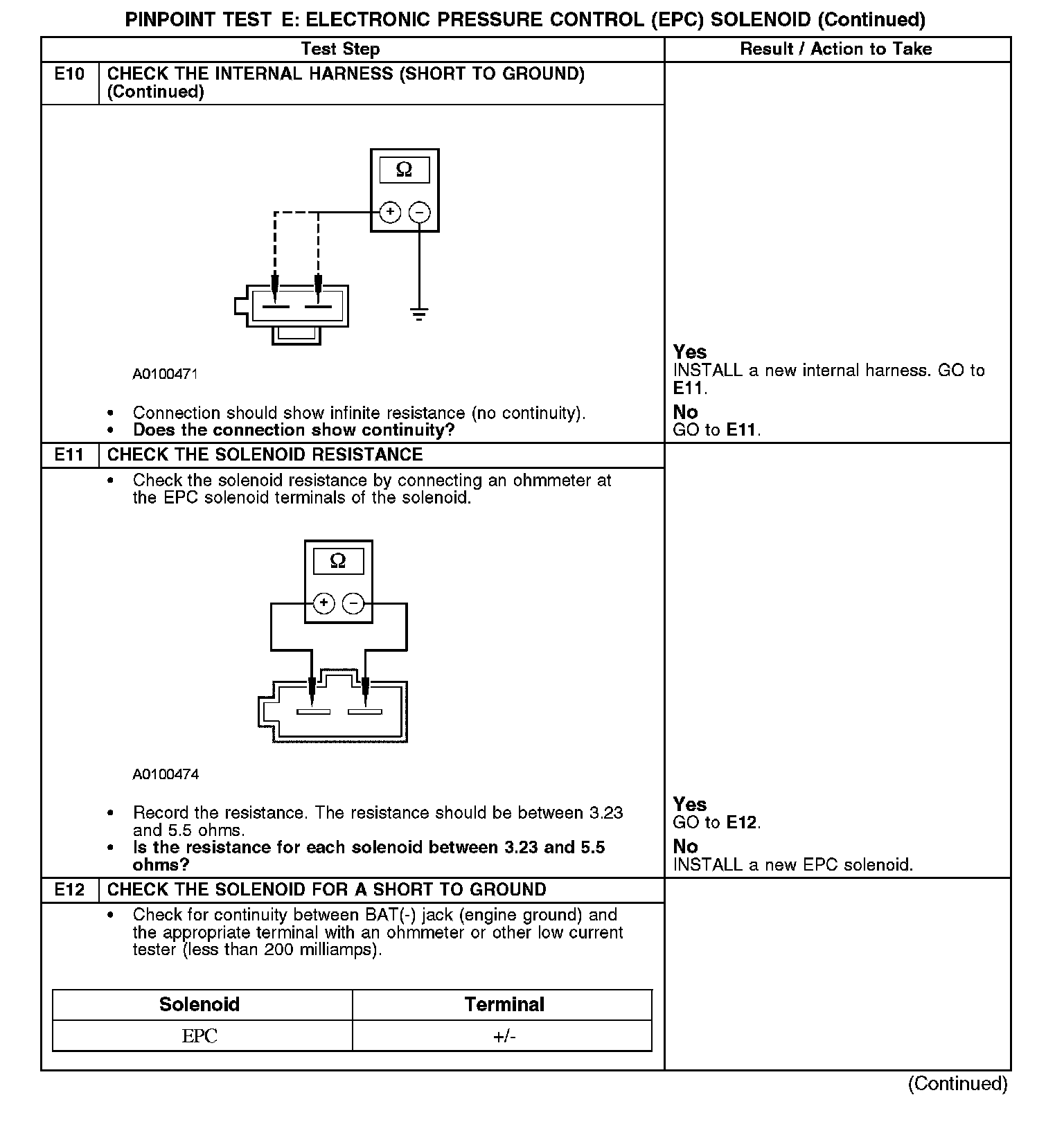

E10-E12:

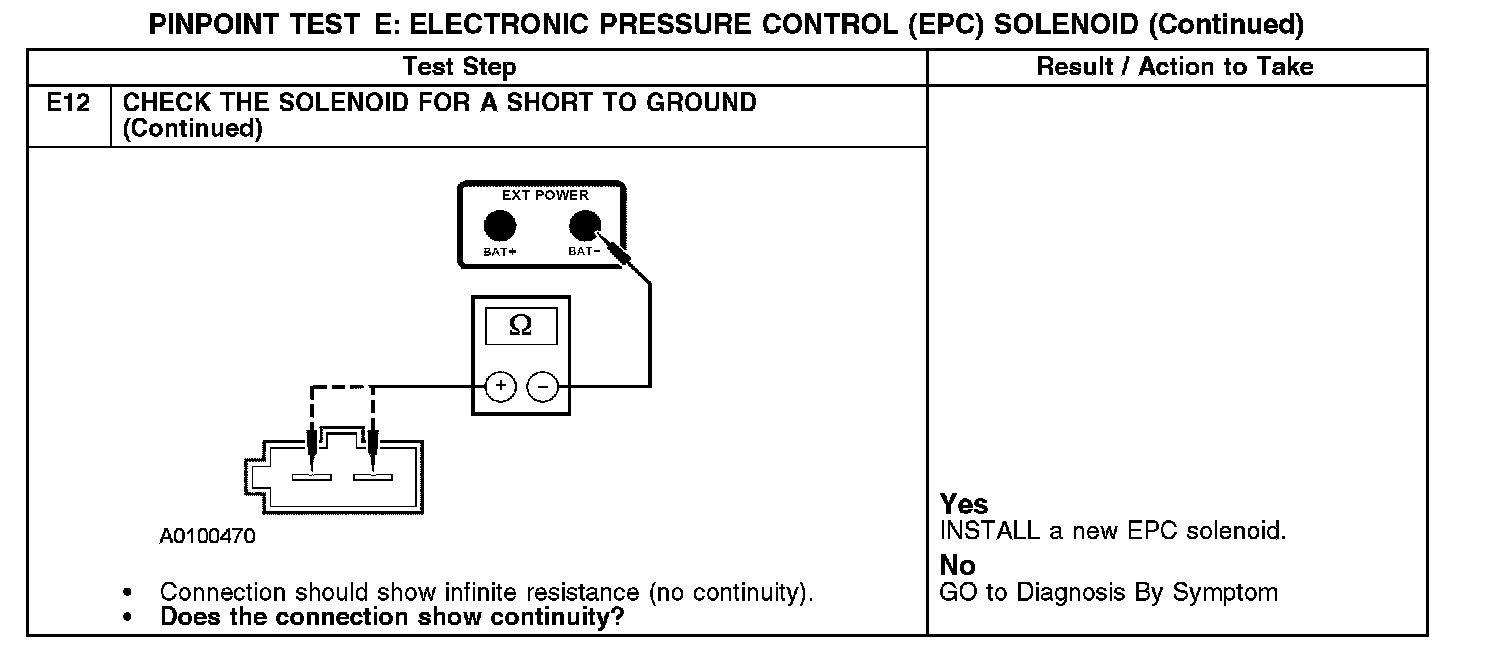

E12:
