Test A: Shift Interlock System Does Not Release/Lock Correctly
Test A: Shift Interlock System Does Not Release/Lock Correctly
PINPOINT TEST A: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

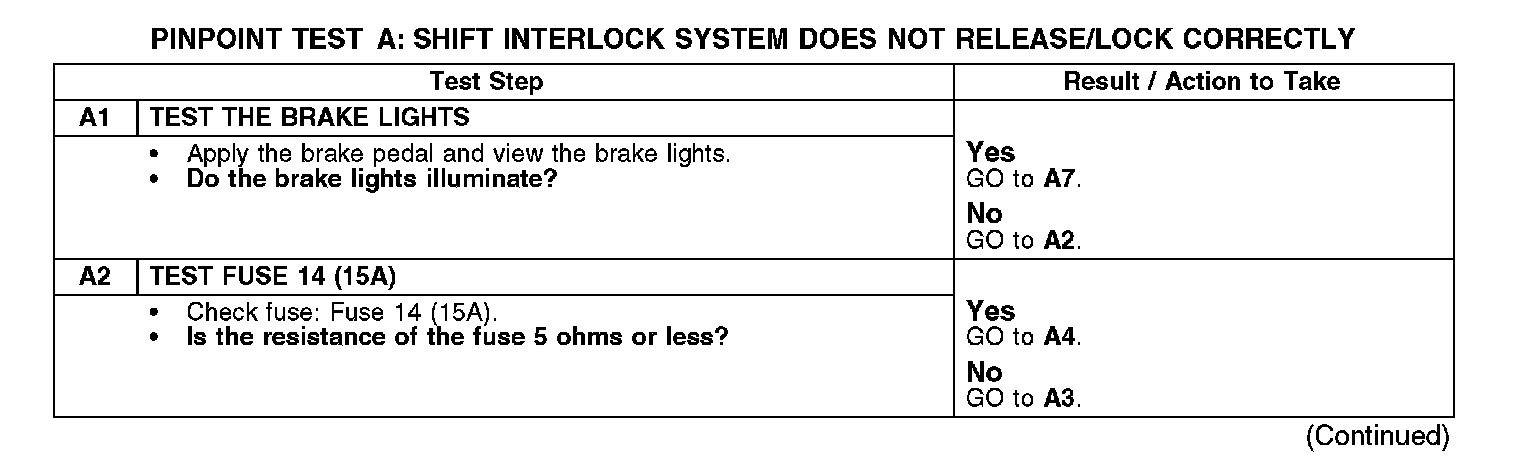

A1-A2:

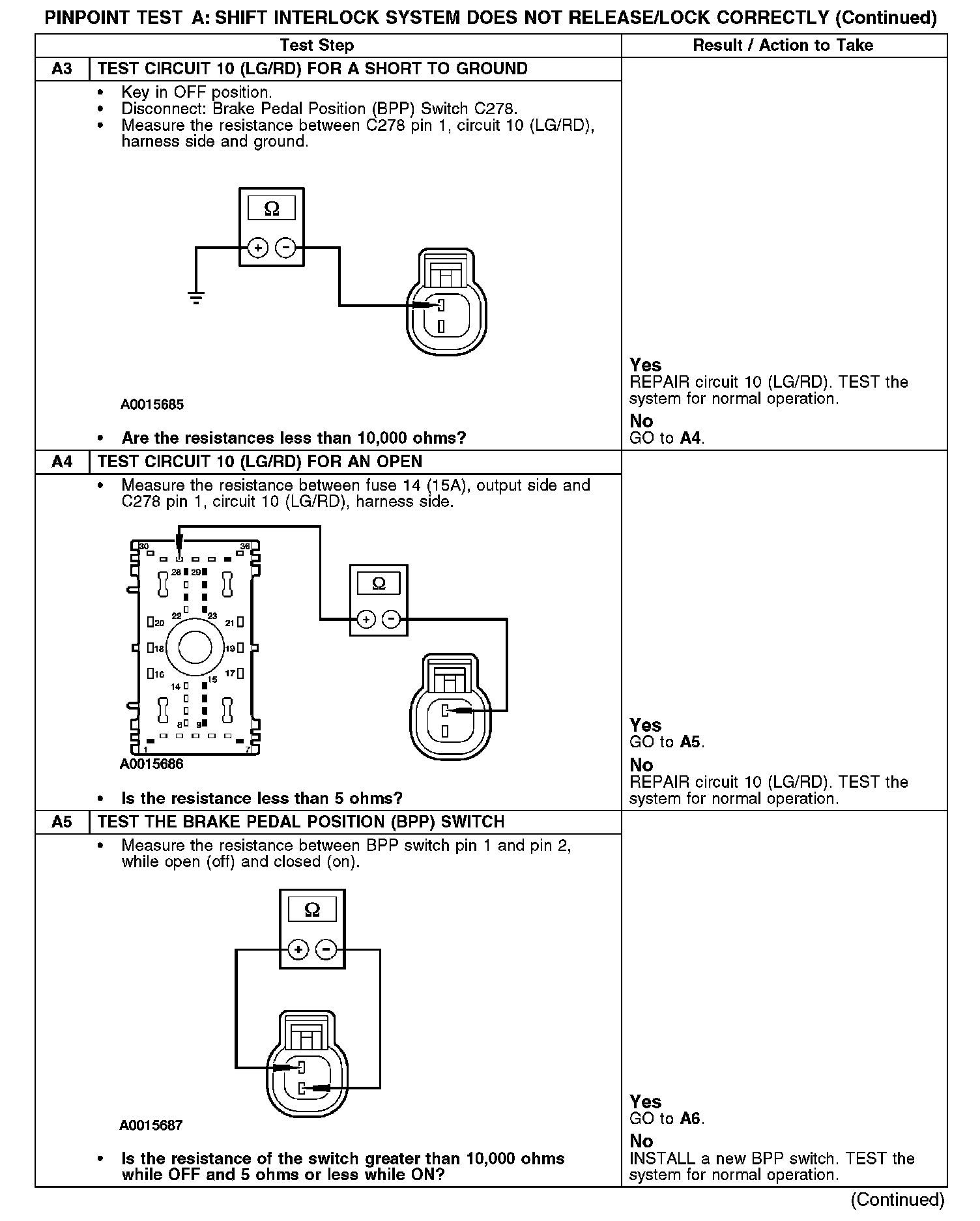

A3-A5:

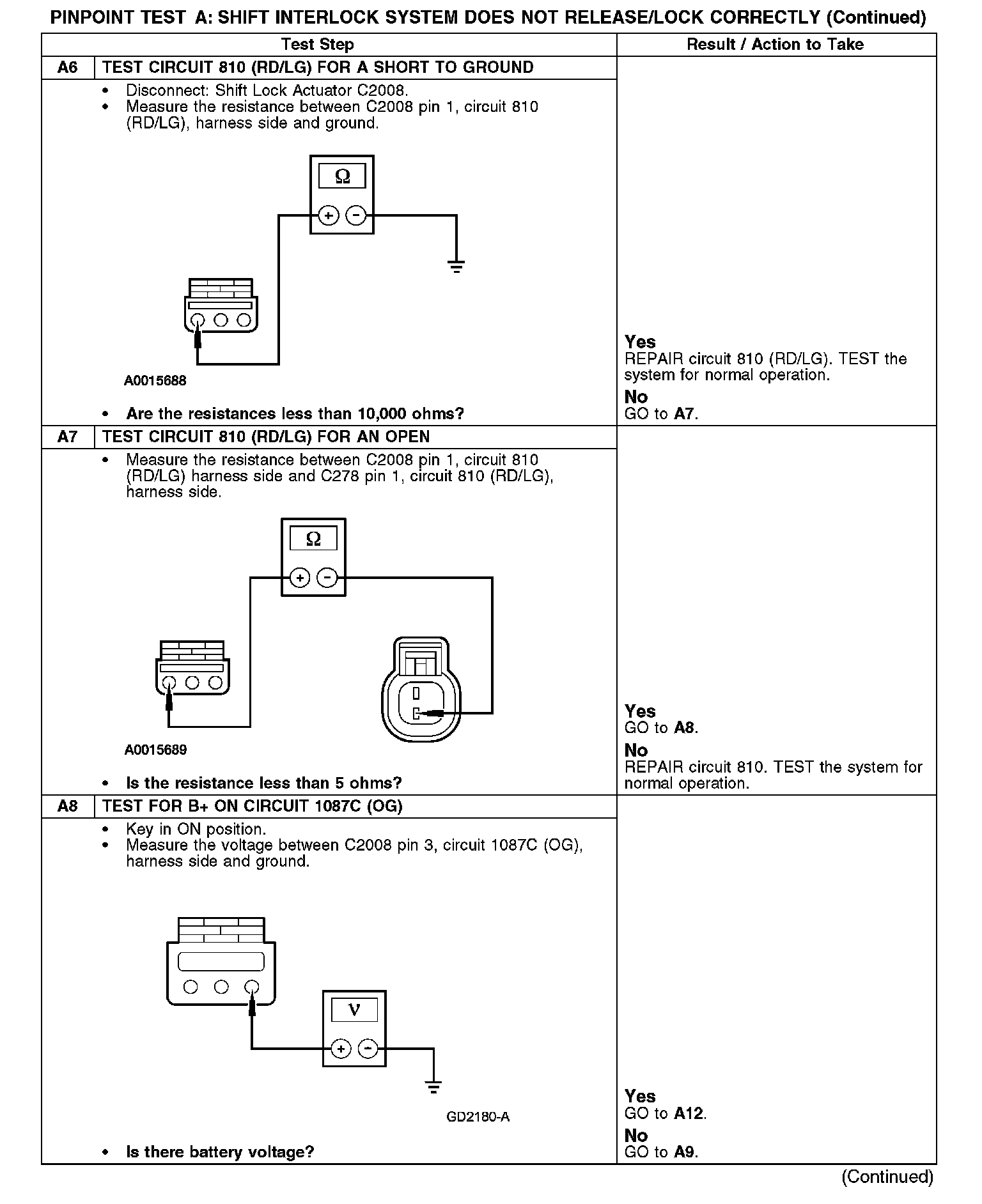

A6-A8:

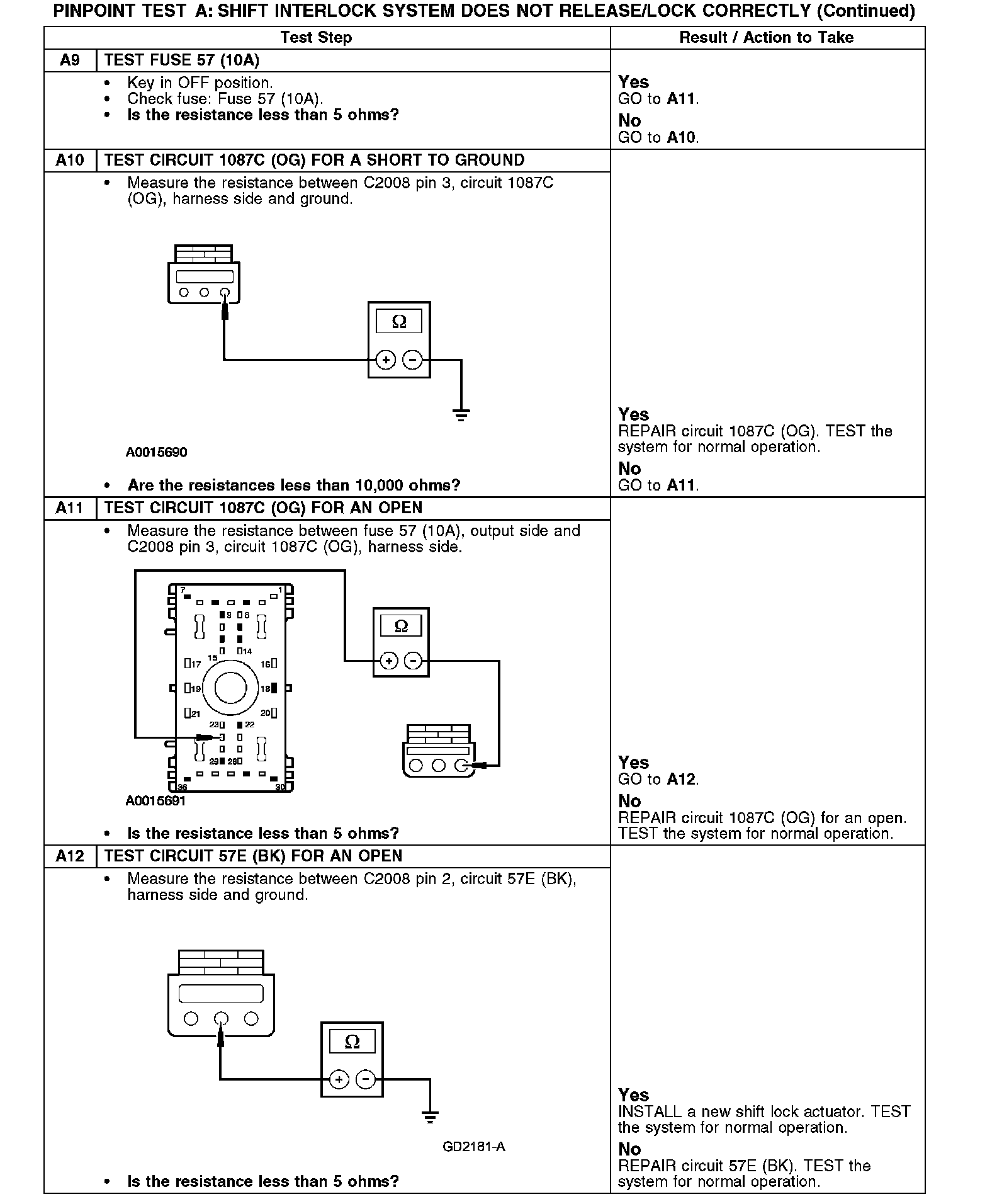

A9-A12:
