Selector Lever Cable and Bracket - Column Shift

Selector Lever Cable and Bracket - Column Shift





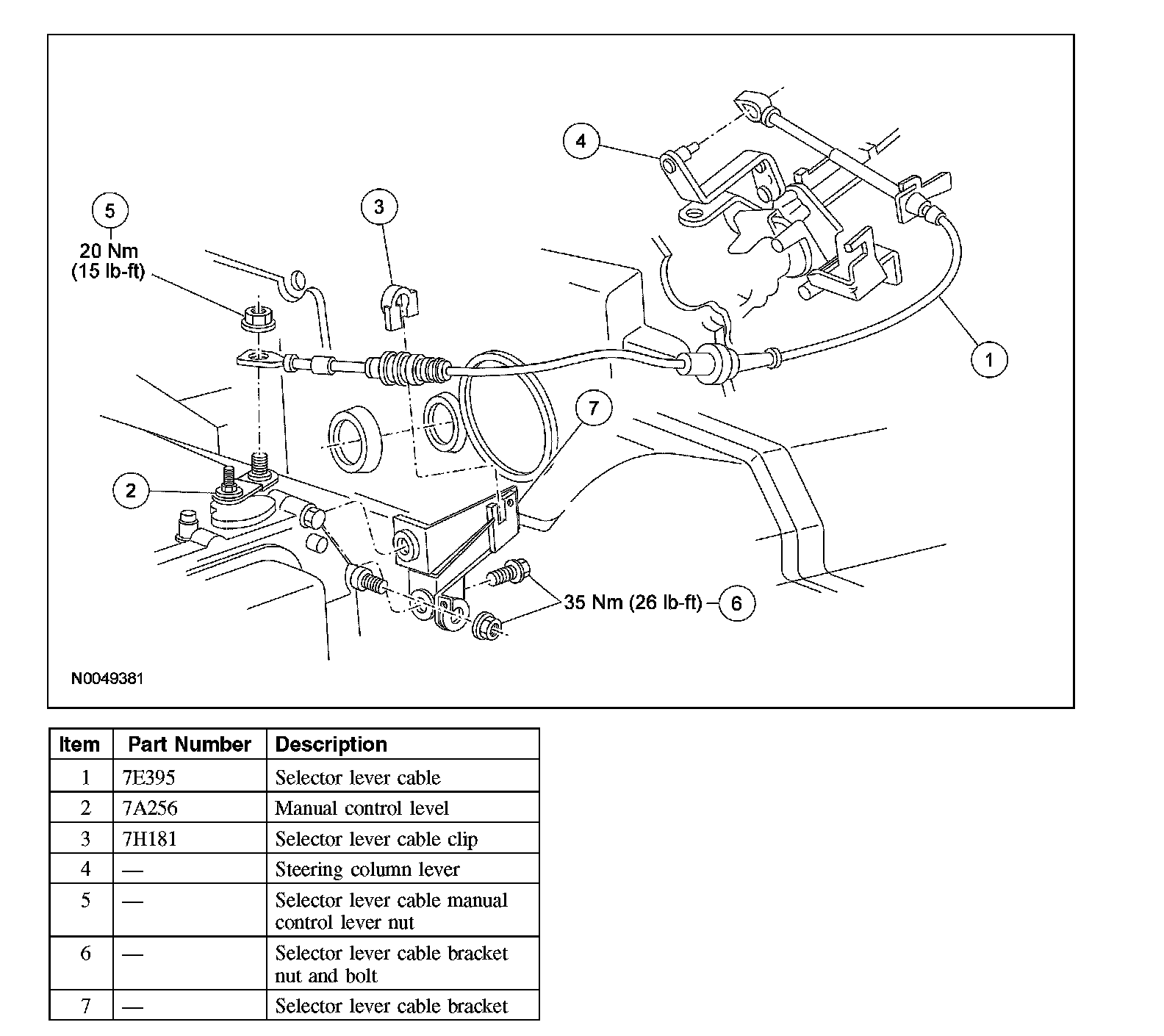

Removal
1. Remove the LH lower instrument panel trim.
^ To install, tighten to 7 Nm (62 inch lbs).

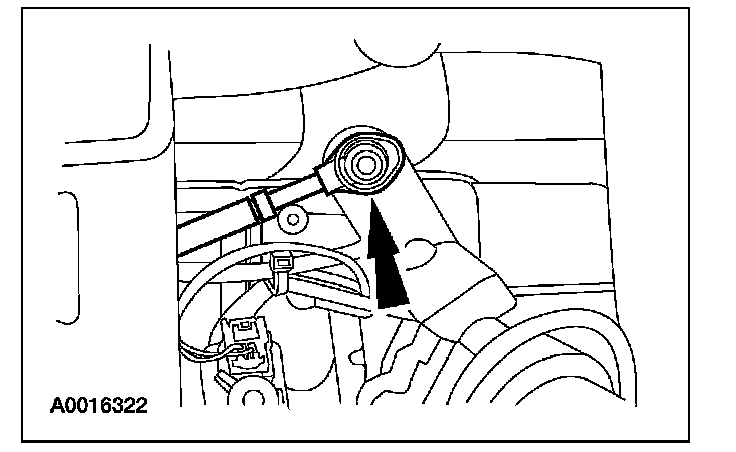

2. Reach up from the left side of the column, then using a small screwdriver, pry the selector lever cable from the selector lever pivot ball.





3. Remove the selector lever cable from the retaining bracket by carefully lifting up on the locking tab while pulling up on the selector lever cable fitting.
4. From the engine compartment, remove the cruise control actuator. For additional information, refer to Cruise Control.

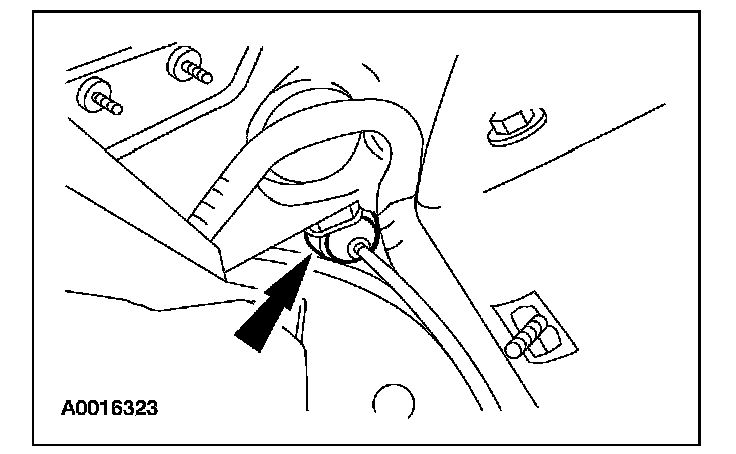

5. Pry the selector lever cable grommet from the dash panel.

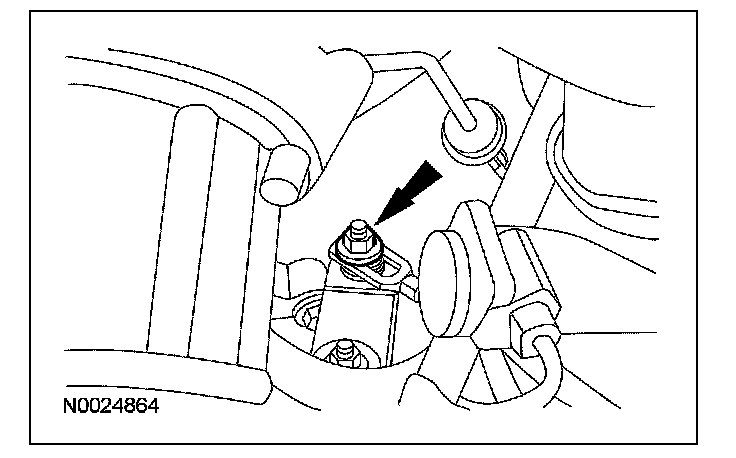

6. Remove the nut holding the selector lever cable to the manual control lever.
^ To install, tighten to 20 Nm (15 ft. lbs).

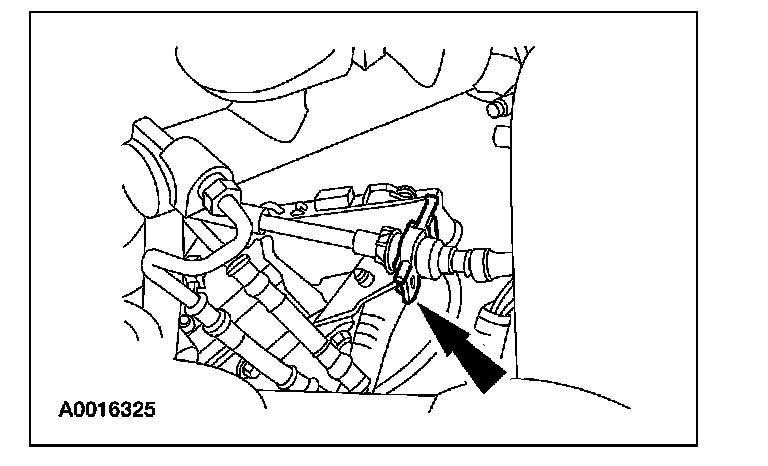

7. Lifting up on the locking tab while pulling up on the selector lever cable, remove the selector lever cable from the transmission selector lever cable bracket.
^ Discard the locking clip.





8. Pull the selector lever cable through the dash panel opening.

Installation
1. To install, reverse the removal procedure. Using a new locking clip, adjust the shift cable. For additional information, refer to Selector Lever Cable Adjustment - Column Shift.
