FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
2007
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>
Main Components and Functions
Main Components and Functions
Main Components and Functions

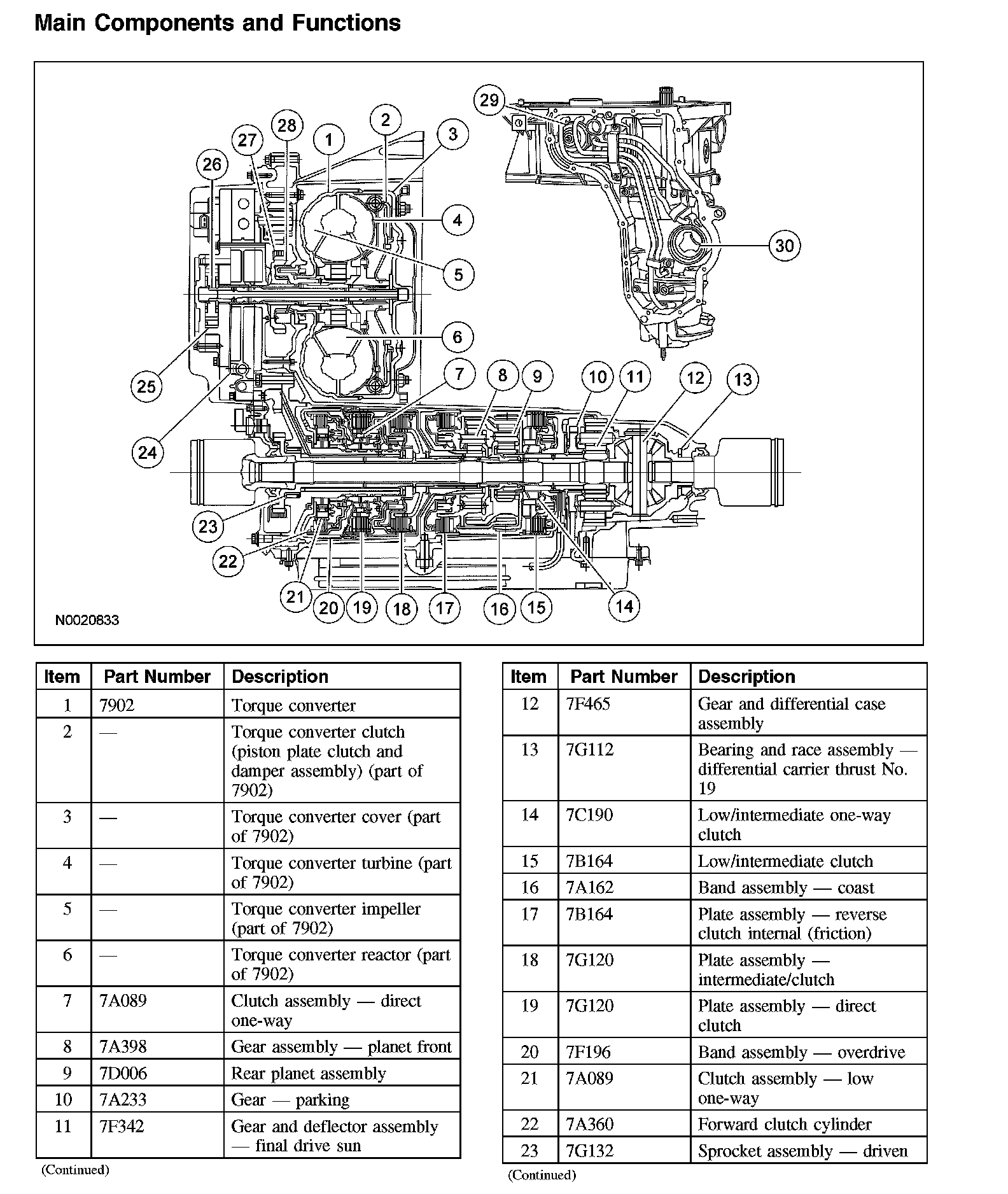

Main Components and Functions (Part 1):

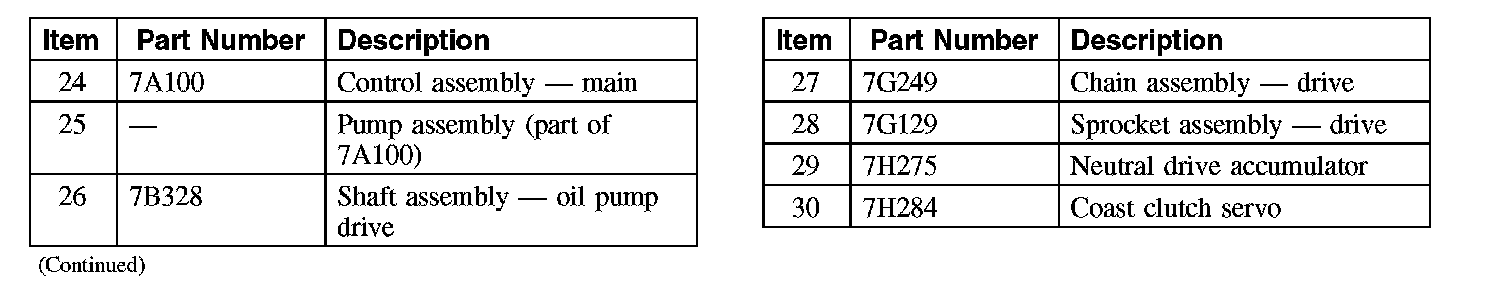

Main Components and Functions (Part 2):
