External Controls

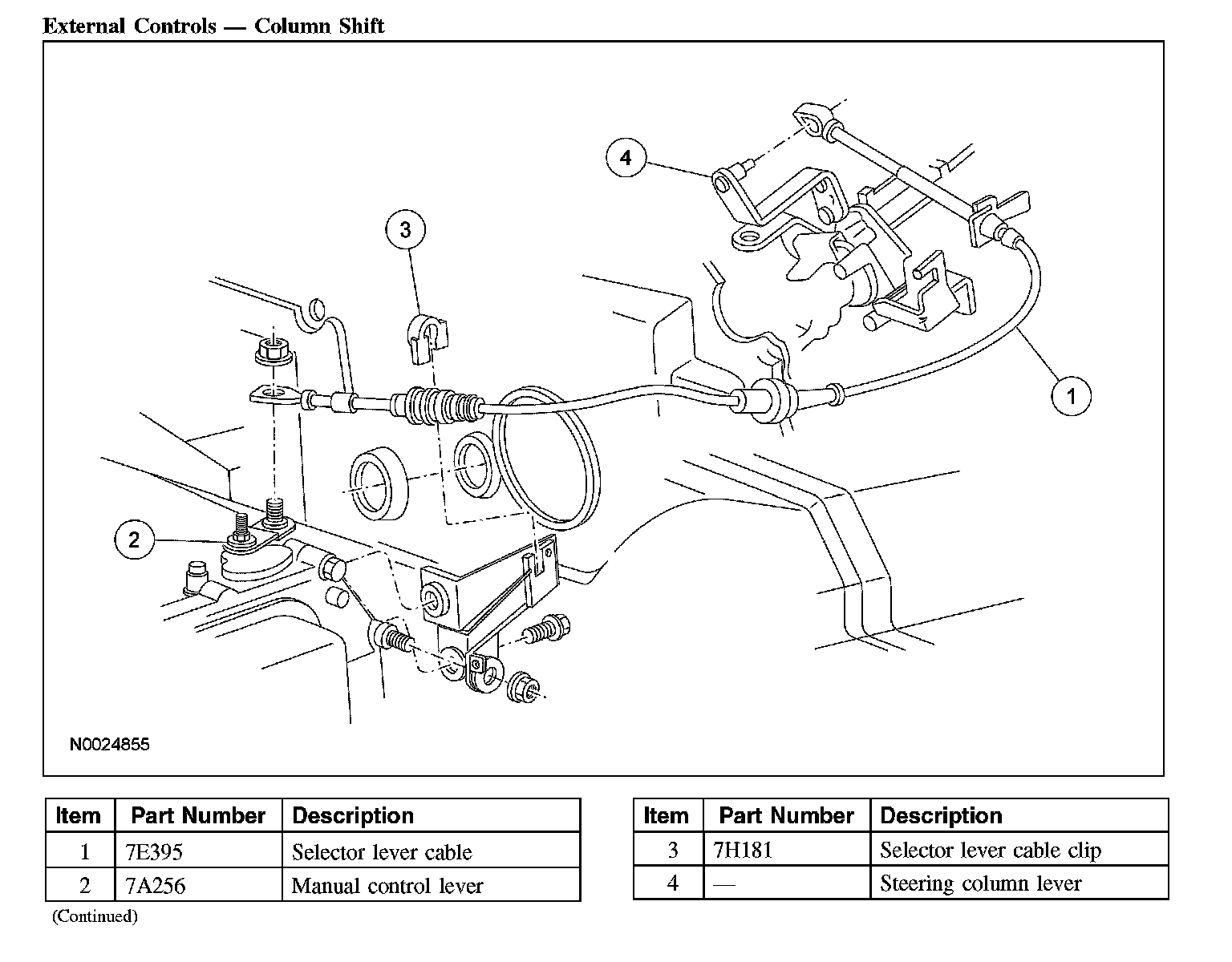

External ControlsExternal Controls - Column Shift:

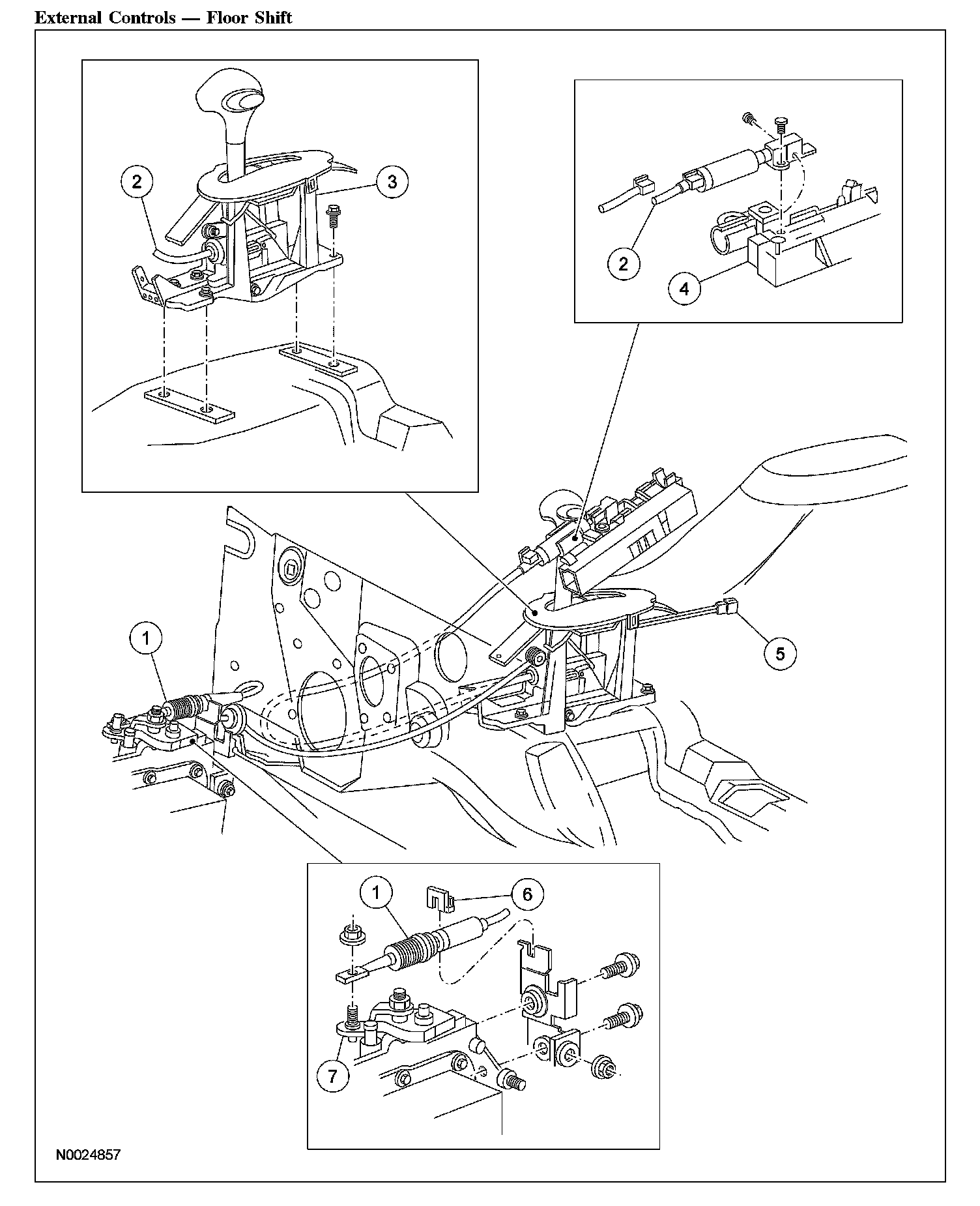

External Controls - Floor Shift (Part 1):

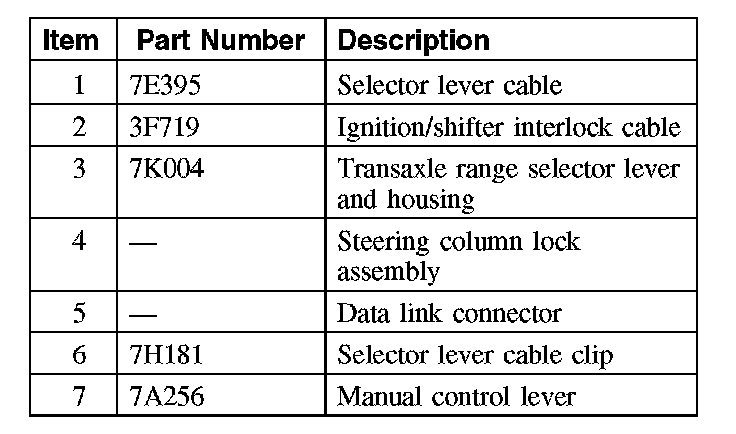

External Controls - Floor Shift (Part 2):
The transaxle shift control linkage consists of:
^ a steering column or floor-mounted transaxle range selector lever.
^ a shift cable connecting the steering column to the transaxle range selector lever.
^ an ignition/shifter interlock cable on floor-shift vehicles which connects the transaxle range selector lever to the steering column lock assembly.
^ an ignition/shifter lock actuator that is integral to the ignition/shifter interlock cable.
The ignition/shifter interlock cable:
^ locks the transaxle range selector lever in the PARK position
^ requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the lock position.
