Bearing and Thrust Washer Locator

Bearing and Thrust Washer Locator

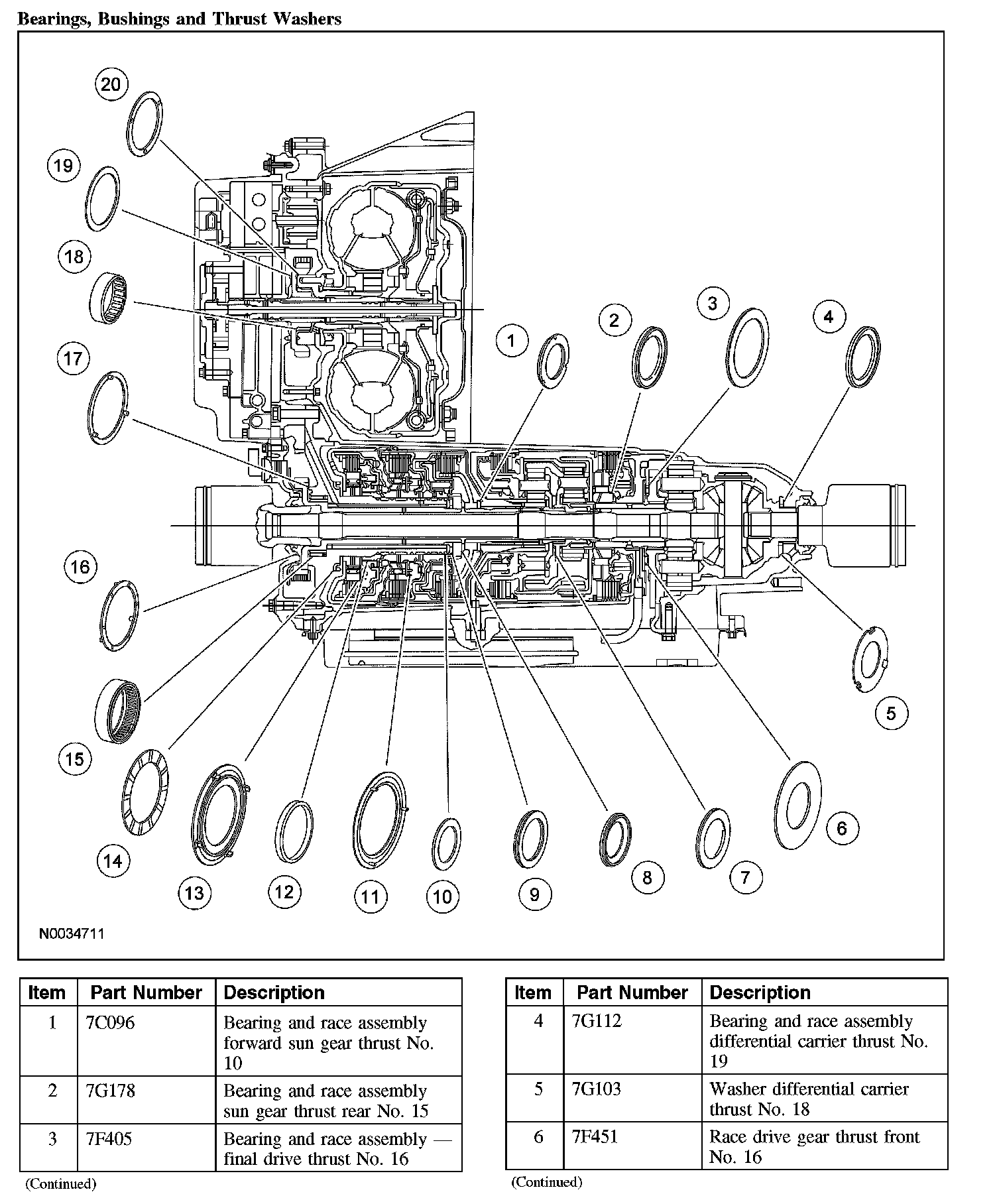

Bearings, Bushings and Thrust Washers (Part 1):

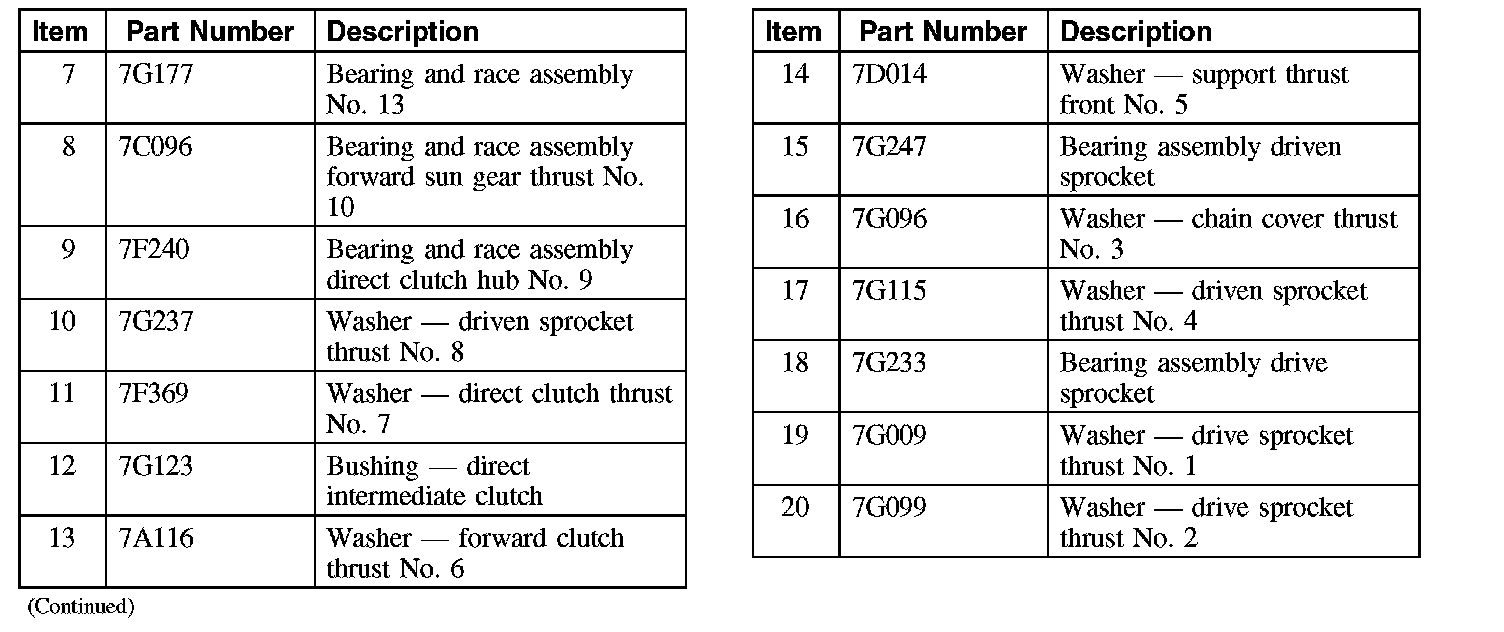

Bearings, Bushings and Thrust Washers (Part 2):
