Selector Lever Cable Adjustment - Floor Shift
Selector Lever Cable Adjustment - Floor ShiftNOTE: The selector lever control cable adjustment procedure must be carried out in the order shown.
1. Position the transaxle range selector lever in OVERDRIVE.

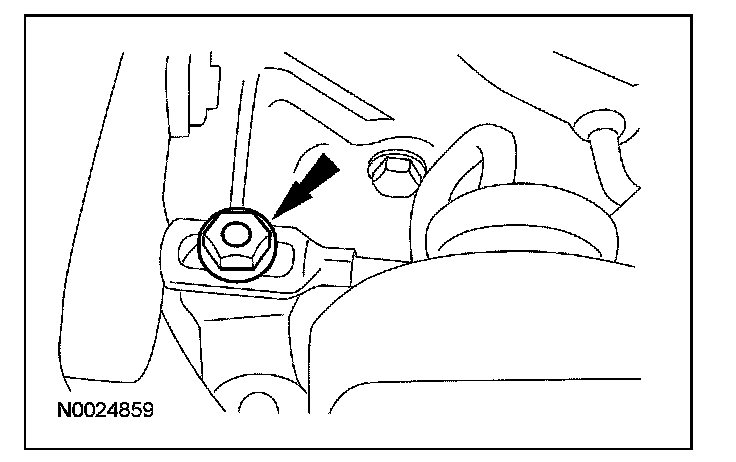

2. Loosen the manual control lever-to-selector lever cable nut.
3. Position the manual control lever in OVERDRIVE.
^ Tighten to 20 Nm (15 ft. lbs).
4. Check the operation of the transaxle in each transaxle range selector lever position.
