Front

Lower Arm

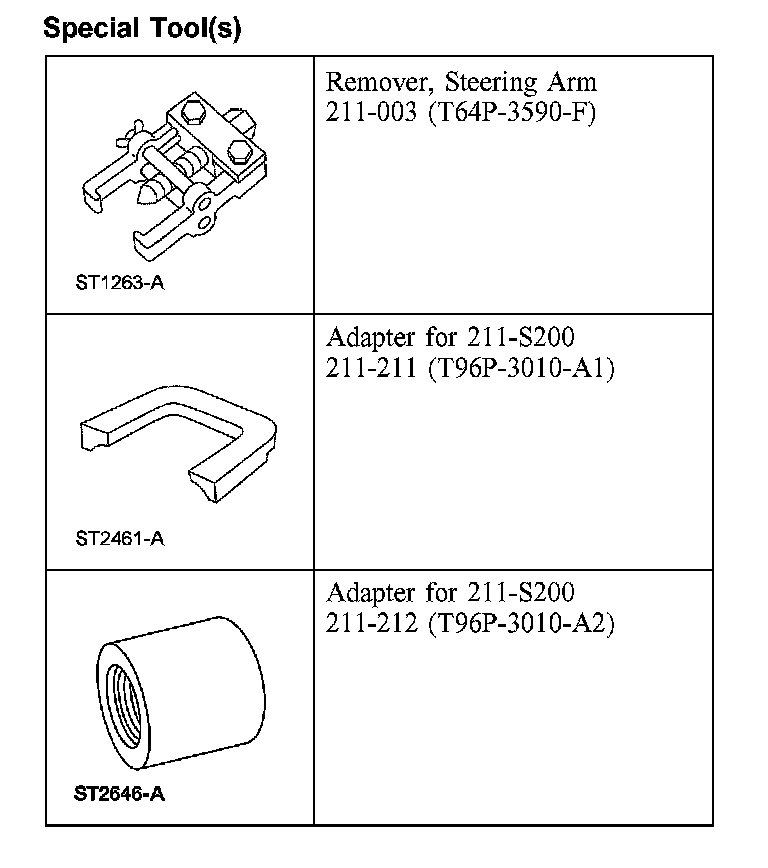

Special Tool(s):

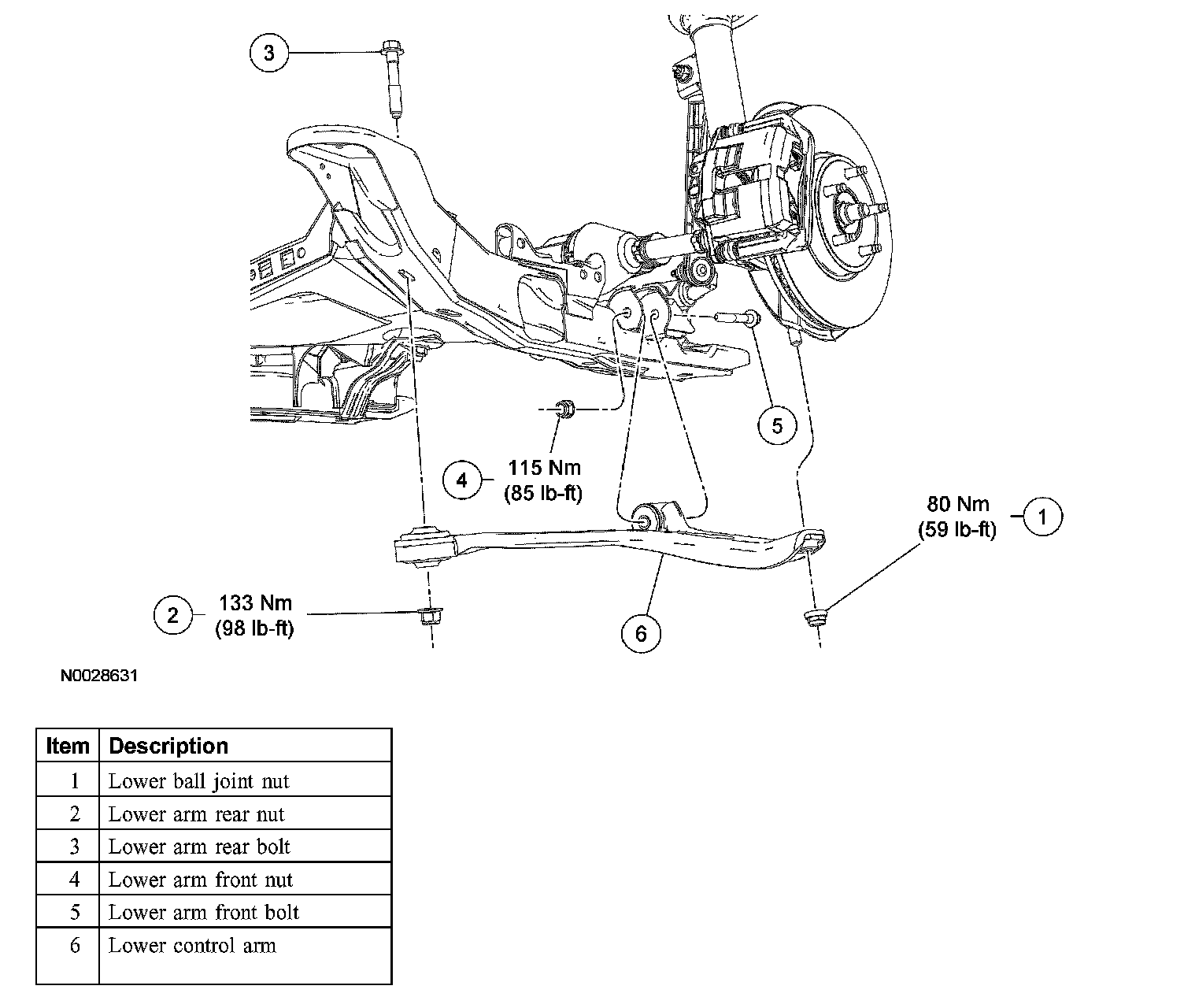

Removal and Installation

CAUTION: Suspension fasteners are critical parts because they affect the performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Do not use a new part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove and discard the lower ball joint nut.
^ To install, tighten to 80 Nm (59 ft. lbs.).

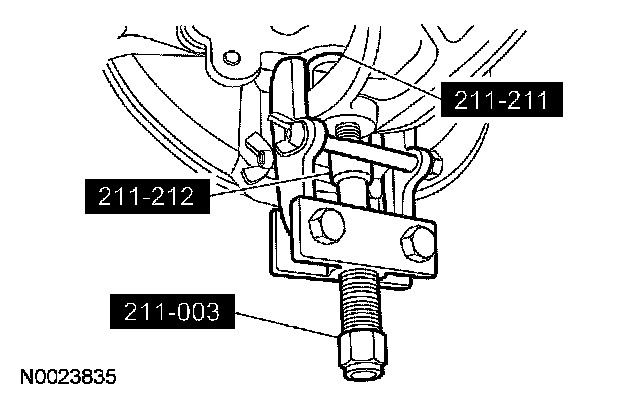

3. Using the special tools, disconnect the ball joint from the lower arm.

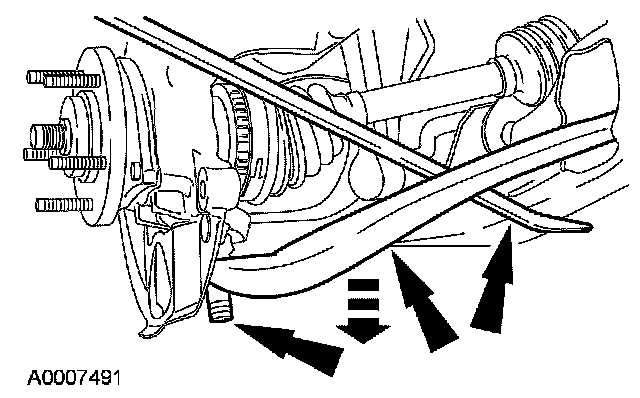

4. Using a pry bar, push the lower arm down until the ball joint is free of the arm.
5. Remove and discard the lower arm front nut and bolt.
^ To install, tighten to 133 Nm (98 ft. lbs.).
6. Remove the and discard the lower arm rear nut and bolt, then remove the lower arm.
^ To install, tighten to 115 Nm (85 ft. lbs.).
7. To install, reverse the removal procedure.
^ Always install new fasteners.
