Power Steering Fluid Cooler: Service and Repair

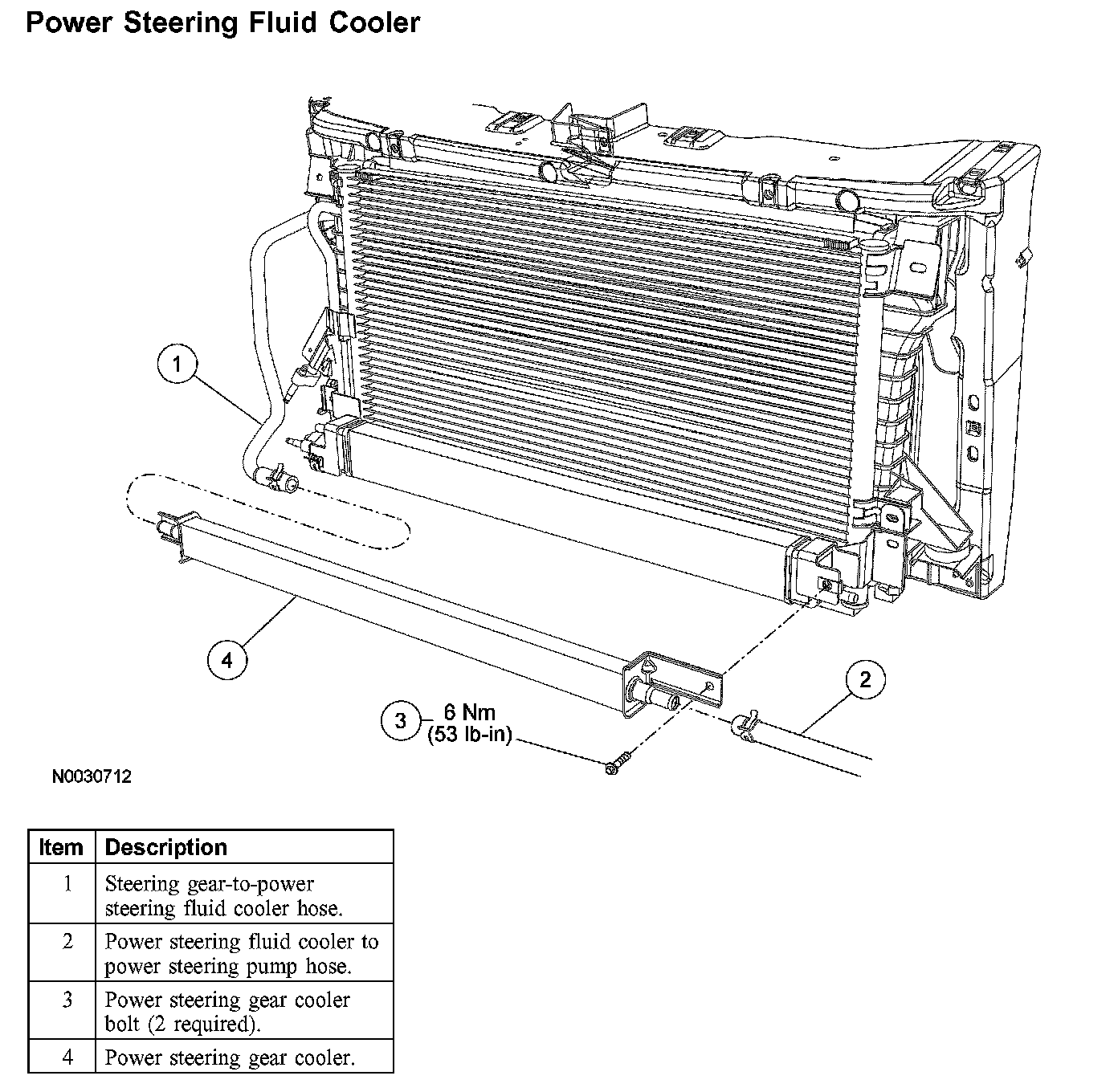

Power Steering Fluid Cooler

Power Steering Fluid Cooler:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

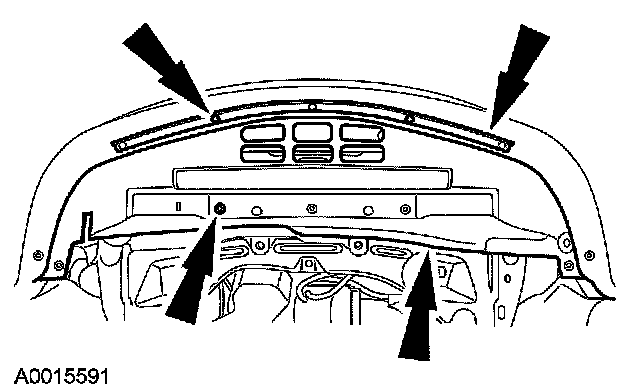

2. Remove the screws, the air deflector and the shield.
3. Compress the clamps and disconnect the 2 hoses from the power steering fluid cooler.
4. Remove the 2 bolts and the power steering fluid cooler.
^ To install, tighten to 6 Nm (53 inch lbs.).
5. To install, reverse the removal procedure.
^ Fill the power steering system.
