Ignition Lock Cylinder -Non Functional

Ignition Lock Cylinder Non Functional

Removal

1. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering wheel removal and installation procedure.

Remove the steering wheel assembly.

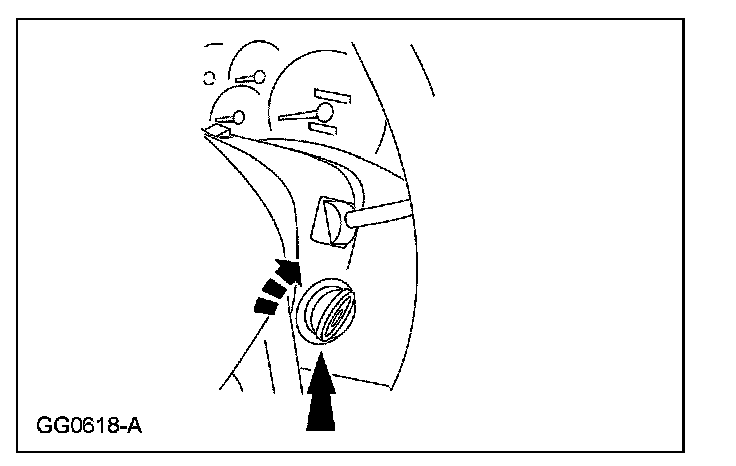

2. Twist off the cap from the ignition switch cylinder.

3. NOTE: The lock cylinder is repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair package (F85Z-11582-AA). The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

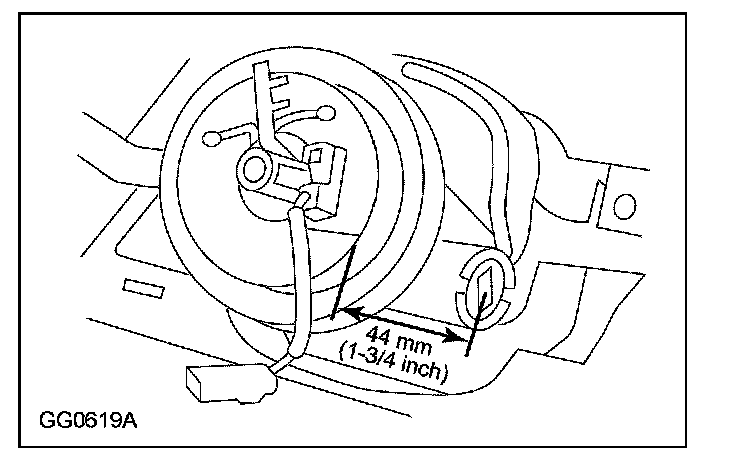

Remove the ignition switch lock cylinder.
- Use a 1/8-inch diameter drill bit to drill out the lock cylinder retaining pin.
- Use a 3/8-inch drill bit to drill down the middle of the ignition lock key slot until the ignition switch lock cylinder breaks loose.
- Remove and discard the ignition switch lock cylinder and clean the drill shavings from the steering column.

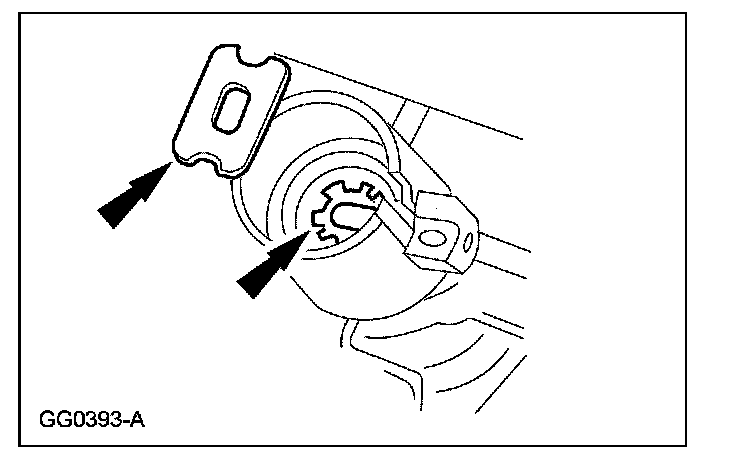

4. Remove the bearing retainer.

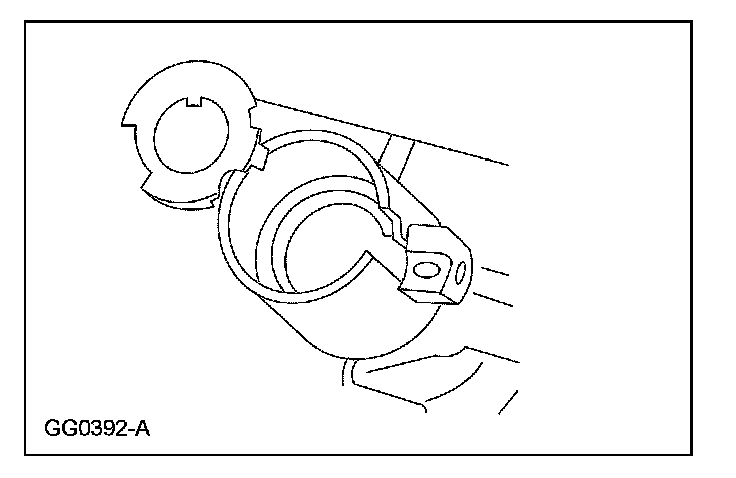

5. Remove the bearing and gear.
- Thoroughly clean all drill shavings from the steering column and inspect it for damage.

Installation

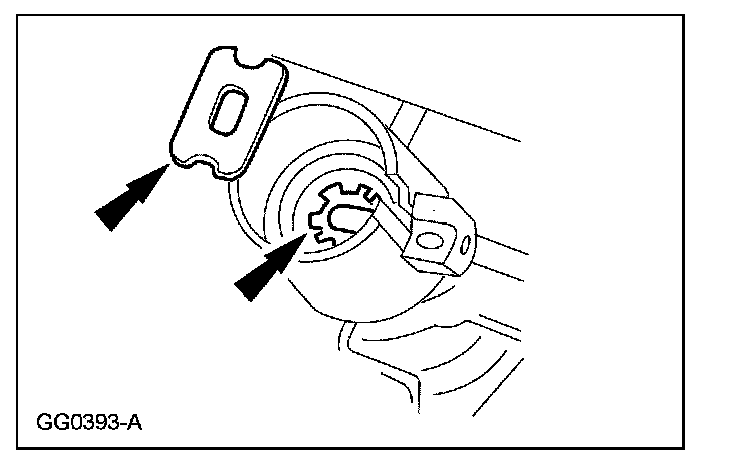

1. Install the gear and the bearing.

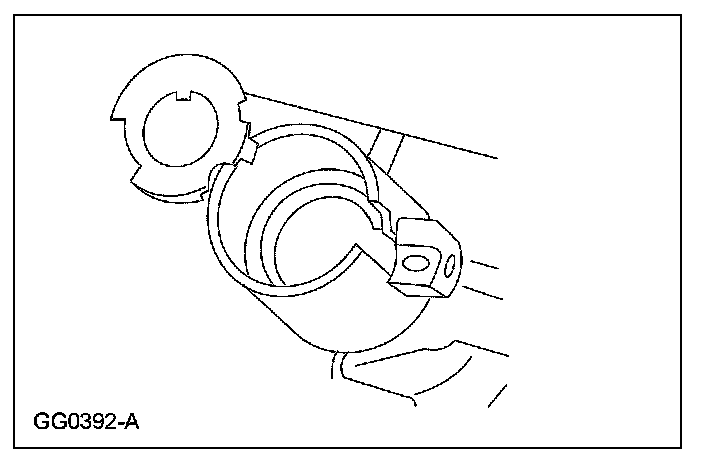

2. Install the bearing retainer.
3. Install a new ignition switch lock cylinder.
- Verify ignition switch lock cylinder operation.
4. Install the steering wheel.
