Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation





1. Using a suitable belt tensioner release tool, rotate the drive belt tensioner clockwise and remove the accessory drive belt.

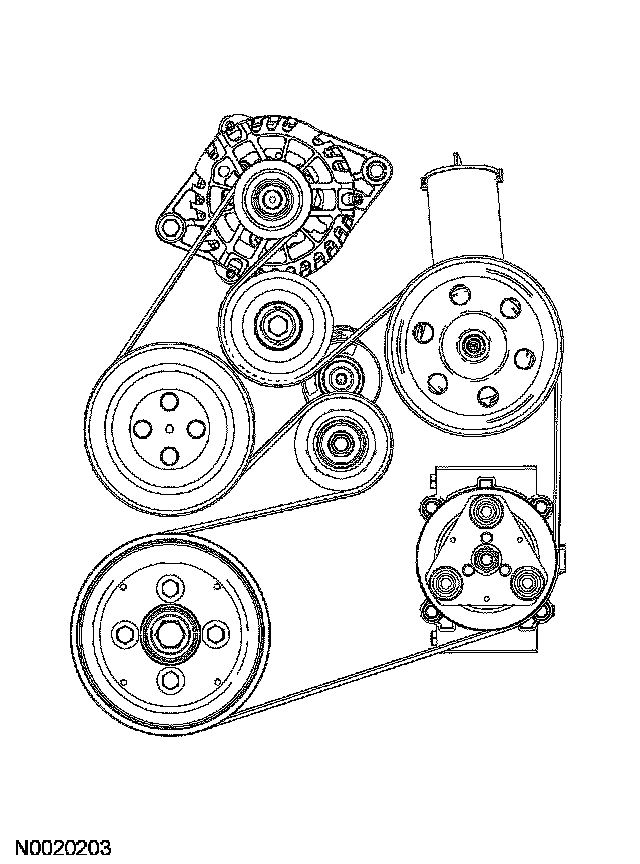

2. NOTE: Refer to the illustration for correct accessory drive belt routing.

To install, reverse the removal procedure.
