Test N: The RH Turn Signal Indicator Is Never On

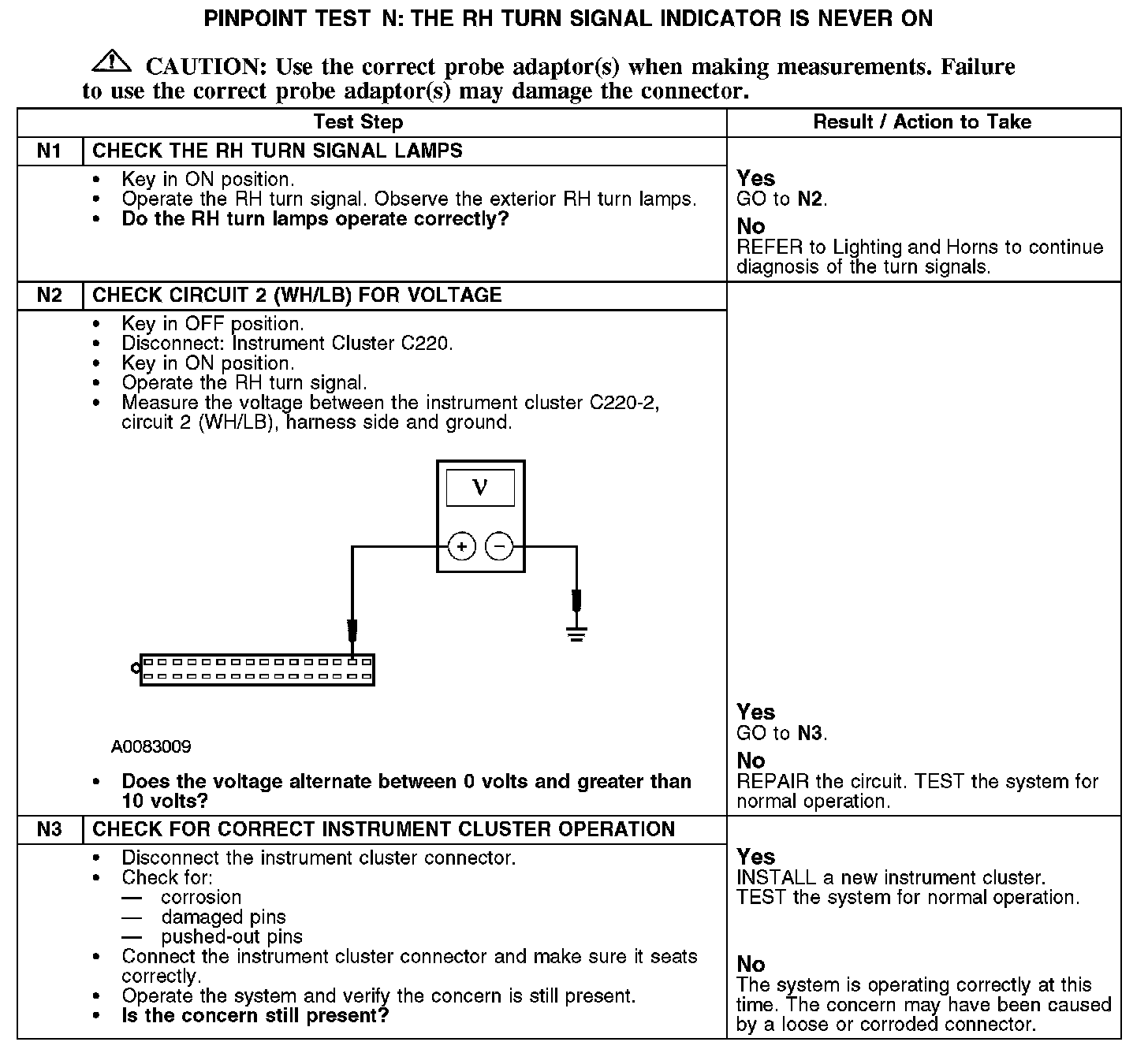

PINPOINT TEST N: THE RH TURN SIGNAL INDICATOR IS NEVER ON

N1-N3:

Normal Operation
Voltage is supplied to the RH turn indicator bulb through circuit 2 (WH/LB) when the multifunction switch is placed in the RH turn signal ON position.

Possible Causes
- Circuit 2 (WH/LB) open
- Instrument cluster
