Test E: The Tachometer Is Inoperative

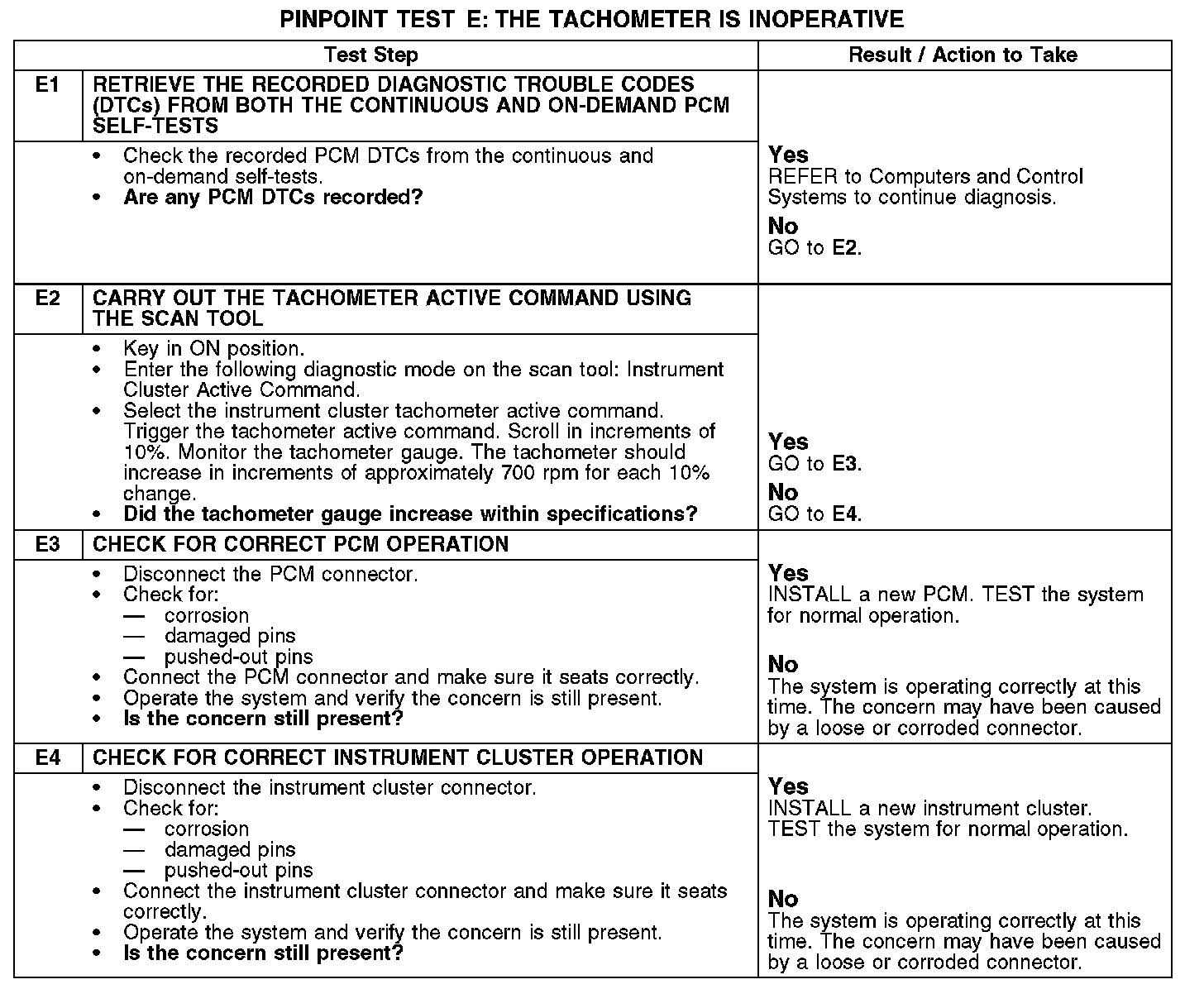

PINPOINT TEST E: THE TACHOMETER IS INOPERATIVE

E1-E4:

Normal Operation
Engine rpm data is provided to the instrument cluster by the powertrain control module (PCM) through the communication network.

Possible Causes
- PCM
- Instrument cluster
