Test F: The Power Door Lock Control Switch Illumination Is Inoperative

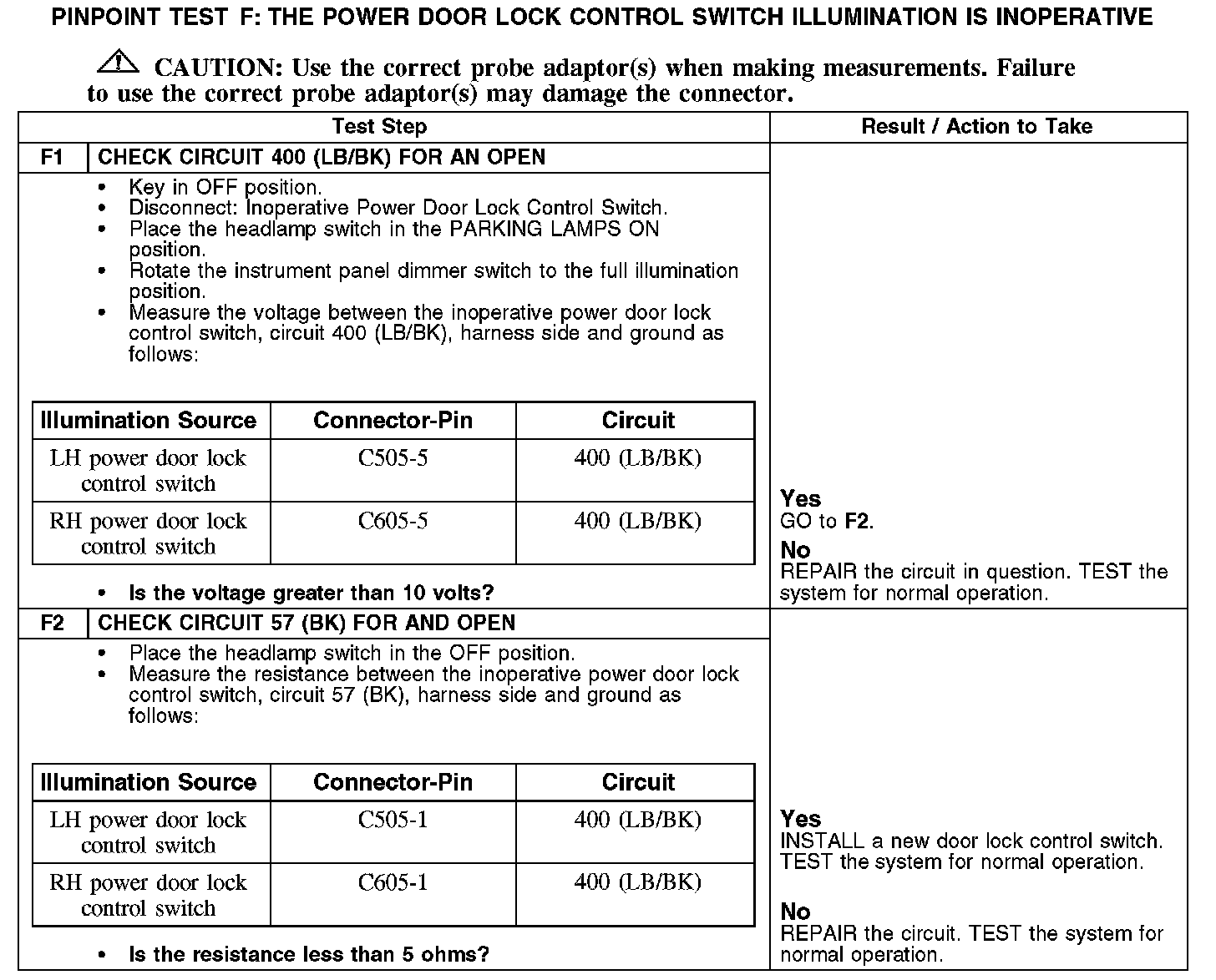

PINPOINT TEST F: THE POWER DOOR LOCK CONTROL SWITCH ILLUMINATION IS INOPERATIVE

F1-F2:

Normal Operation
Voltage is supplied to the power door lock control switches from the smart junction box (SJB) on circuit 400 (LB/BK). The power door lock control switches are grounded on circuit 57 (BK).

Possible Causes
- Circuit 57 (BK) open
- Circuit 400 (LB/BK) open
- Power door lock control switch
