Warning Indicator Bulb



WARNING INDICATOR BULB

Removal and Installation
1. Remove the instrument cluster. Instrument Cluster (IC)

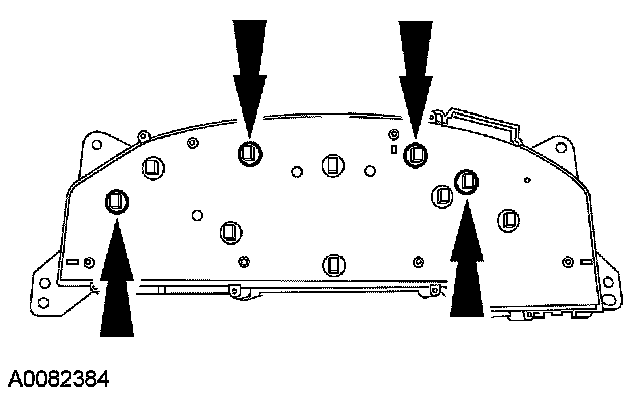

2. NOTE: To remove the warning indicator bulbs, rotate the bulb one quarter turn counterclockwise and lift it out from the instrument cluster.

Remove the warning indicator bulb(s) in question.

3. To install, reverse the removal procedure.
