Vacuum Schematic - Manual Climate Control

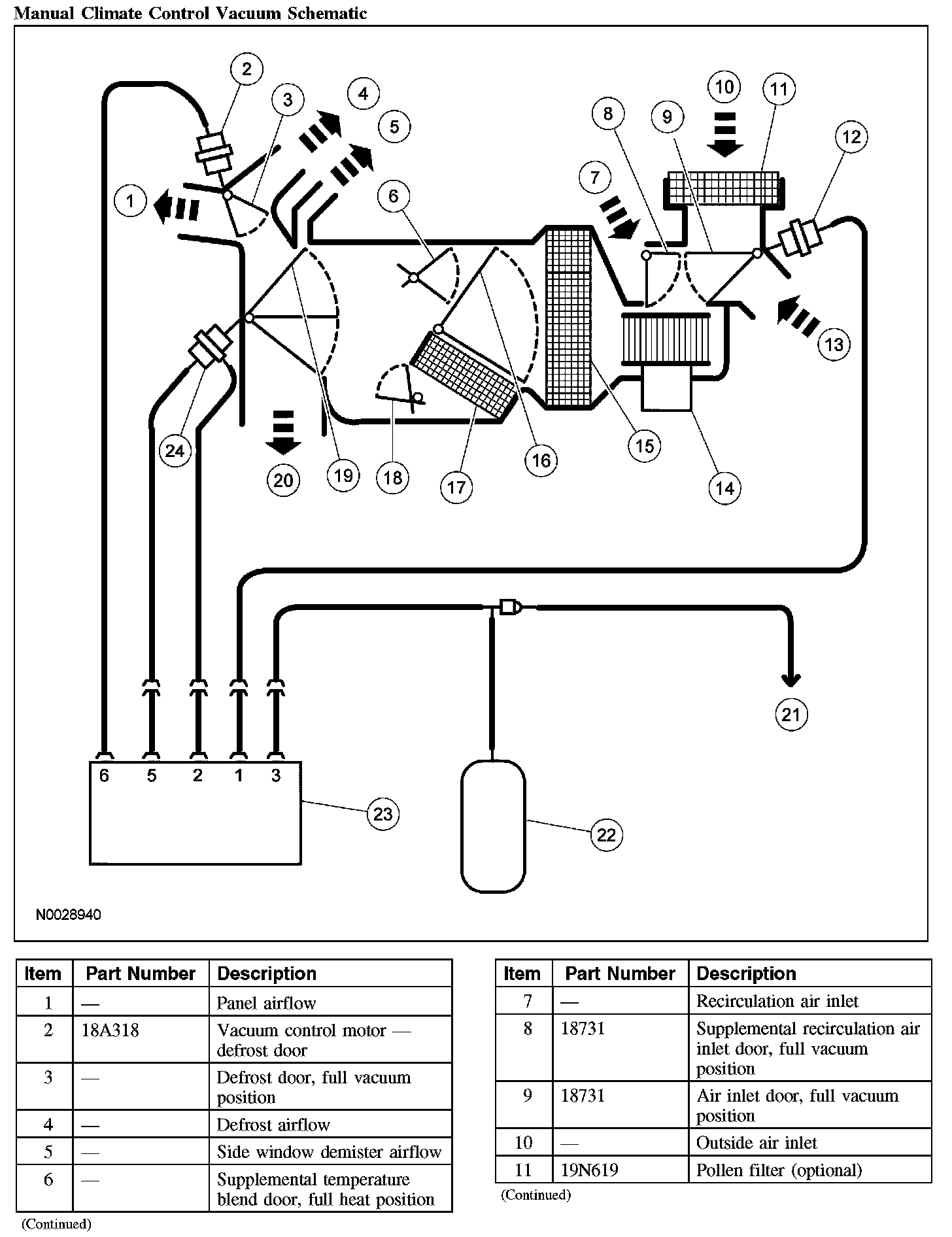

Manual Climate Control Vacuum Schematic (Part 1):

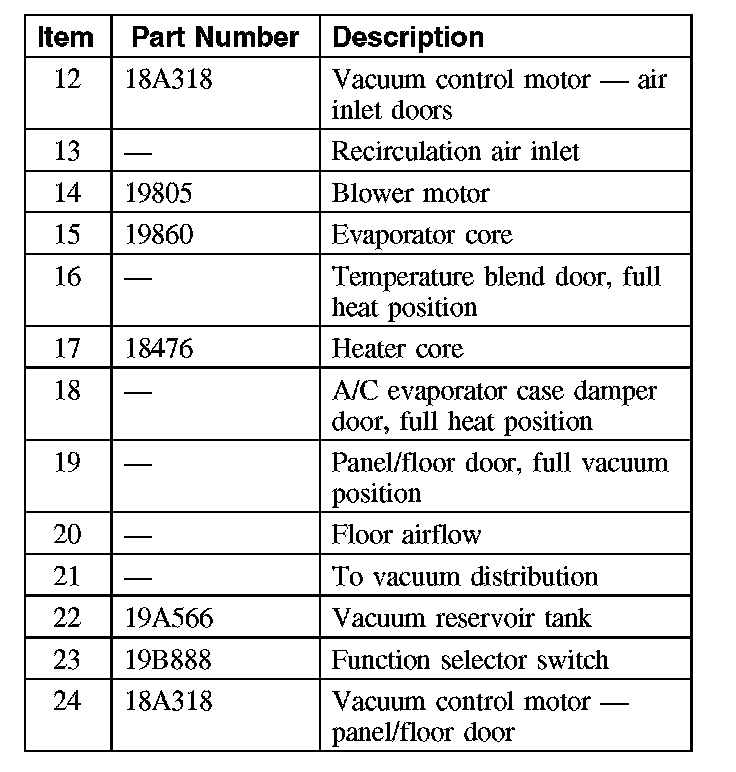

Manual Climate Control Vacuum Schematic (Part 2):

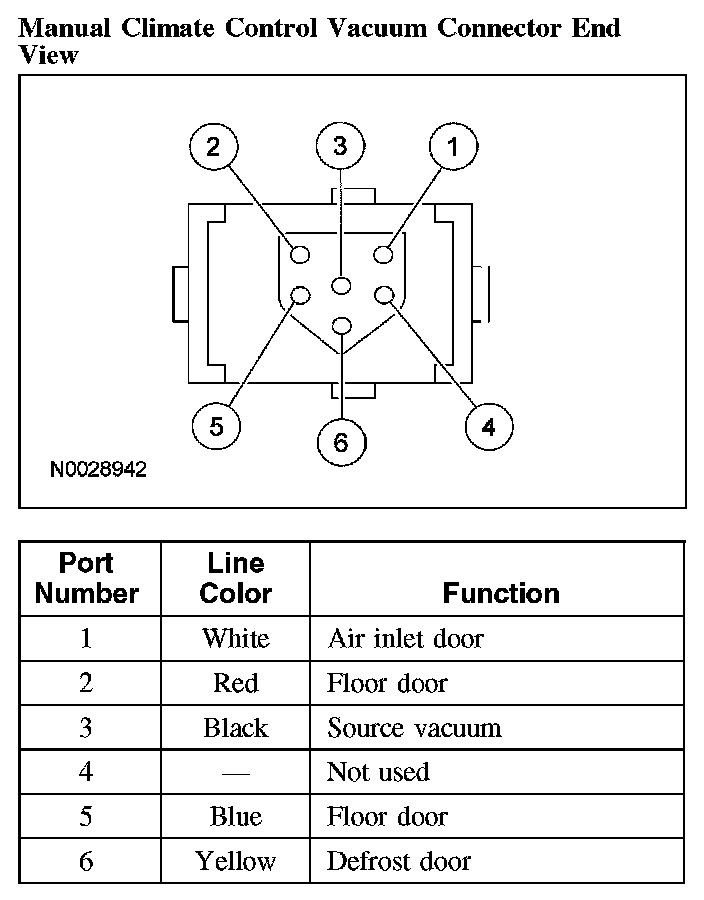

Manual Climate Control Vacuum Connector End View:

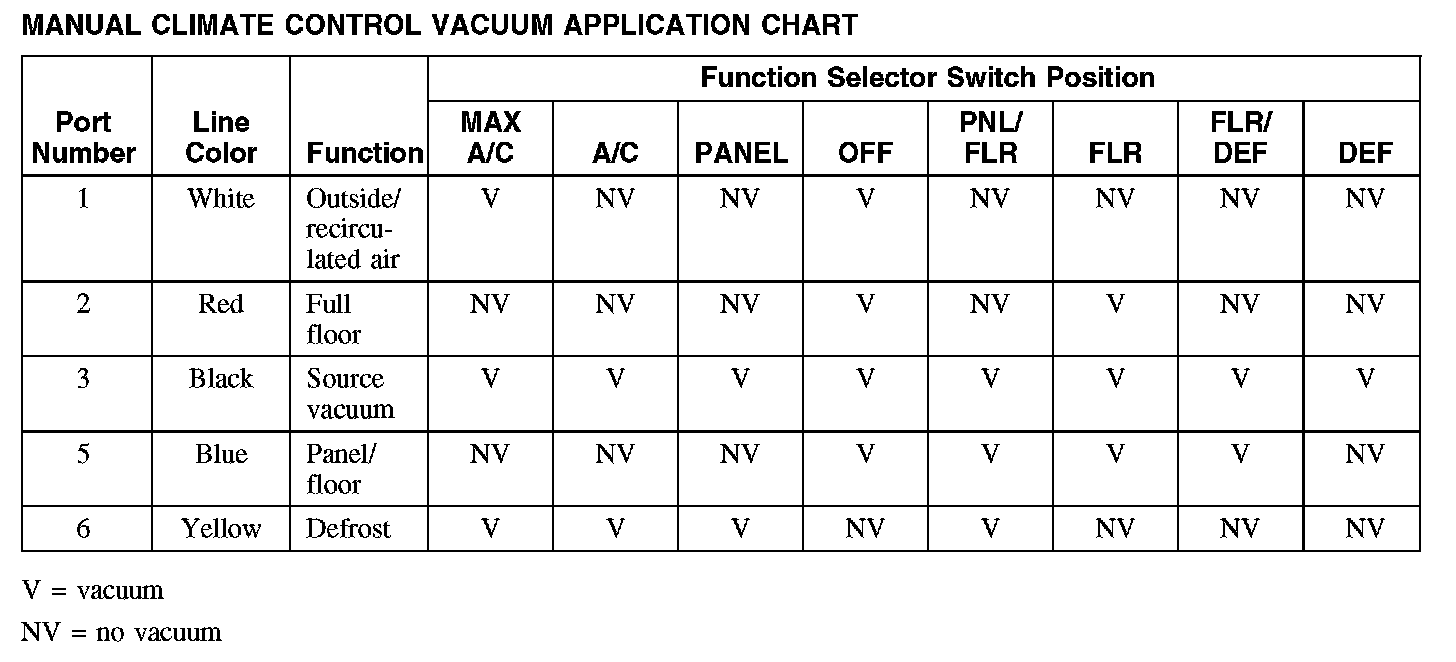

Manual Climate Control Vacuum Application Chart:
