Vacuum Schematic - Electronic Automatic Temperature Control (EATC)

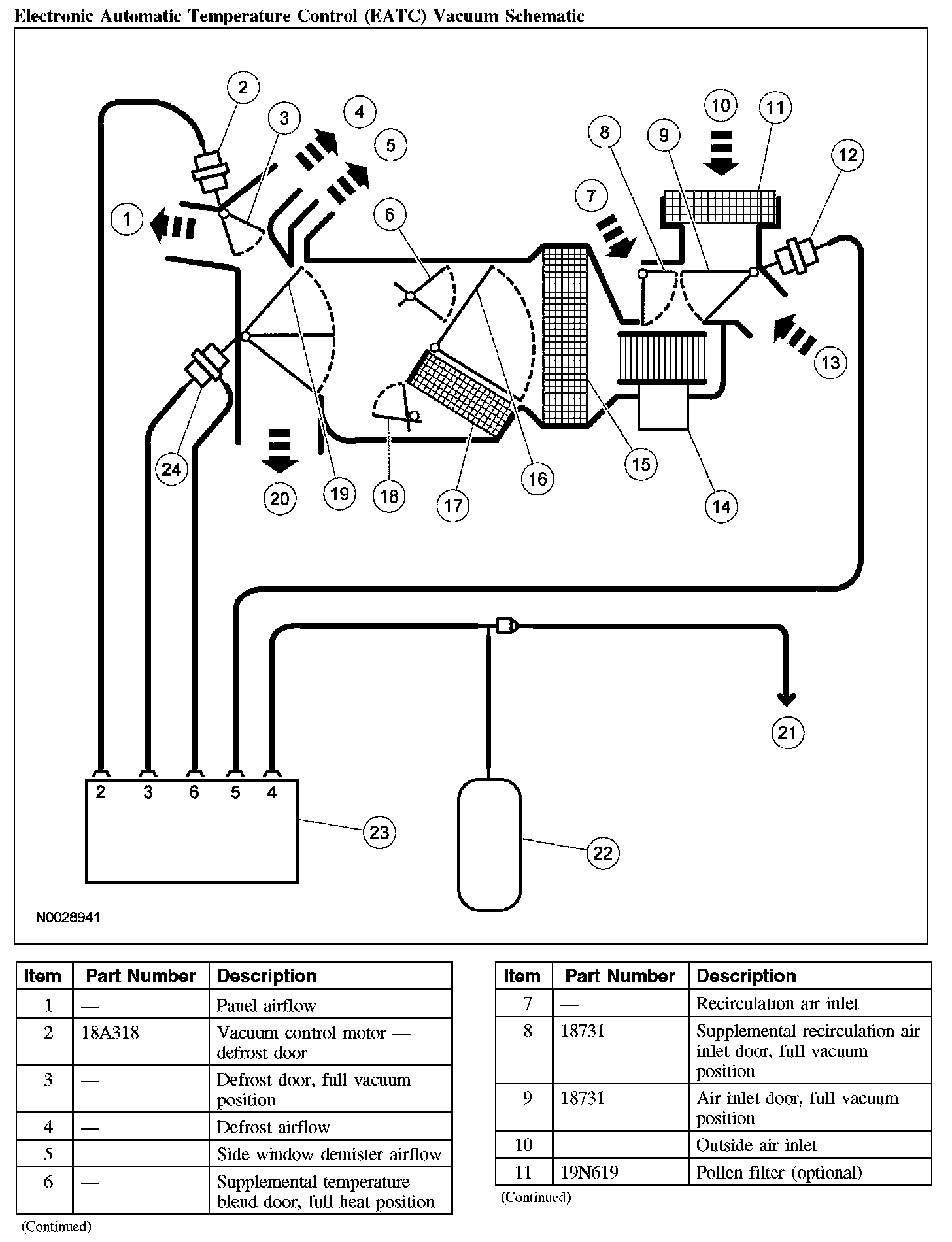

Electronic Automatic Temperature Control (EATC) Vacuum Schematic (Part 1):



Electronic Automatic Temperature Control (EATC) Vacuum Schematic (Part 2):

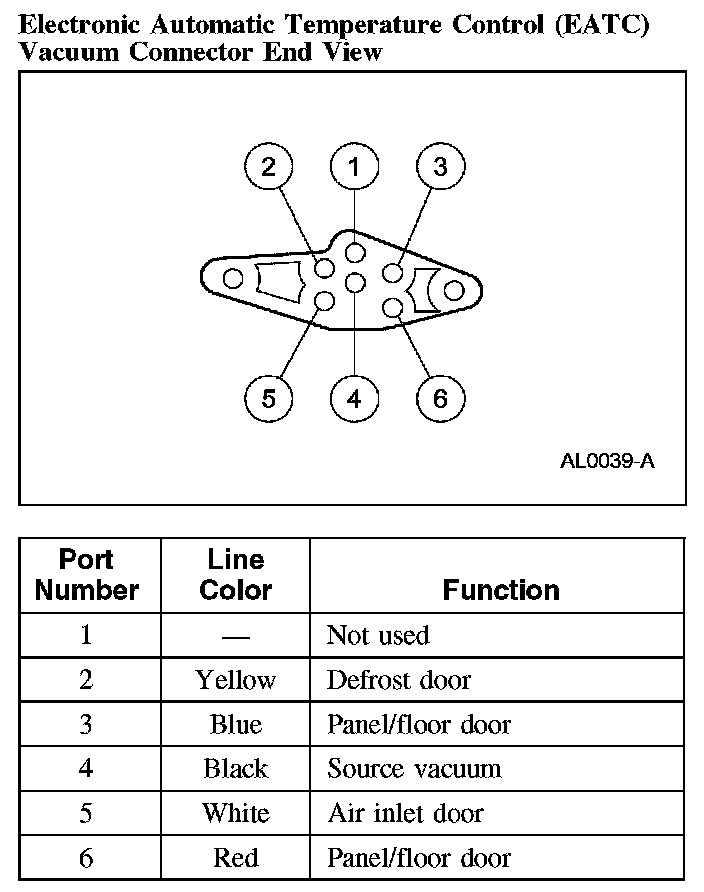

Electronic Automatic Temperature Control (EATC) Vacuum Conector End View:



Electronic Automatic Temperature Control (EATC) Manual Override Vacuum Application Chart:
