Air Inlet Duct

AIR INLET DUCT

Removal and Installation
1. Remove the heater core and evaporator core housing. Housing Assembly HVAC

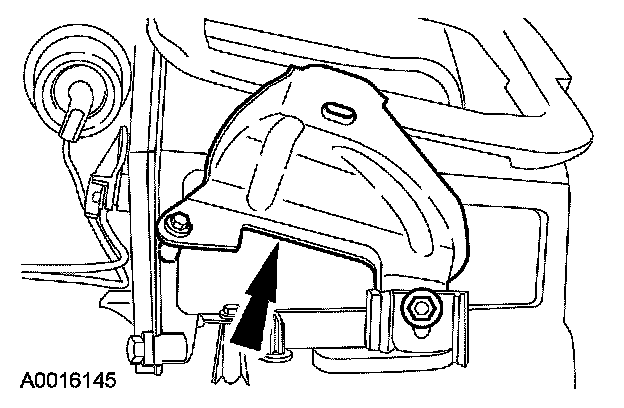

2. Remove the bracket.

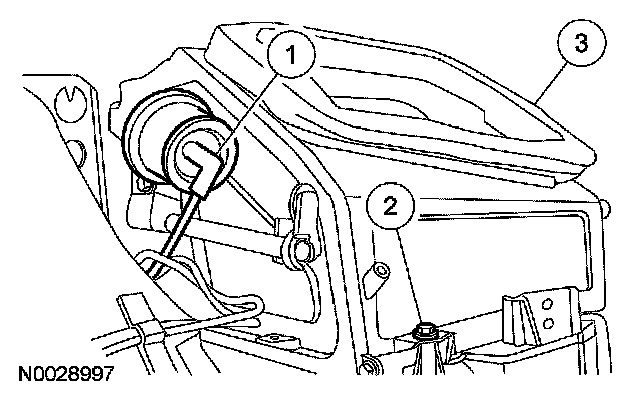

3. Remove the air inlet duct.
1 Disconnect the vacuum hose.
2 Remove the 3 screws.
3 Remove the air inlet duct.

4. To install, reverse the removal procedure.
