Idler Pulley: Service and Repair

Accessory Drive Belt Idler Pulley

Removal and Installation





1. Using a suitable belt tensioner release tool, rotate the drive belt tensioner clockwise and remove the accessory drive belt.
2. Remove the bolt and the accessory drive belt idler pulley.
^ To install, tighten to 47 Nm (35 ft. lbs.).

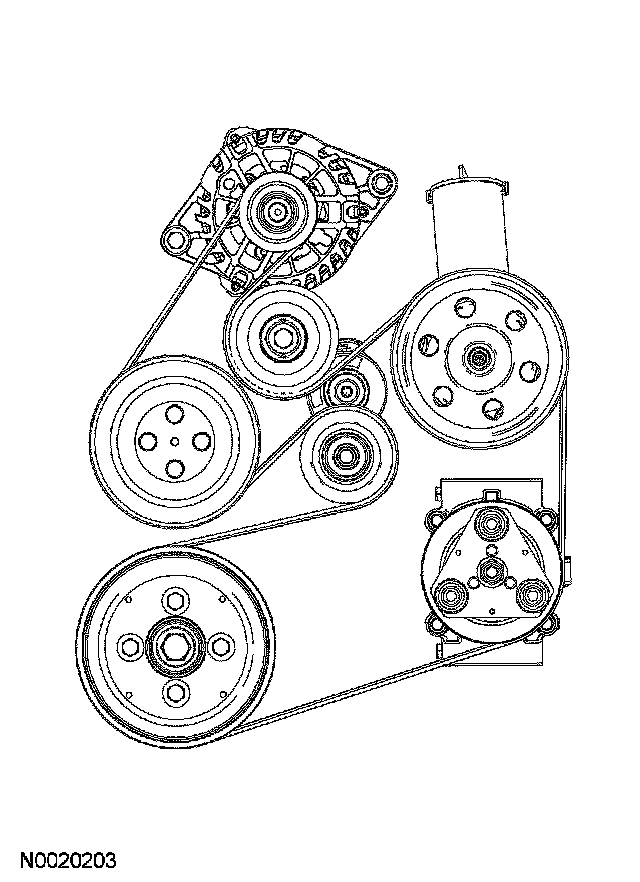

3. NOTE: Refer to the illustration for correct accessory drive belt routing.

To install, reverse the removal procedure.
