Drive Belts, Mounts, Brackets and Accessories: Description and Operation

Accessory Drive

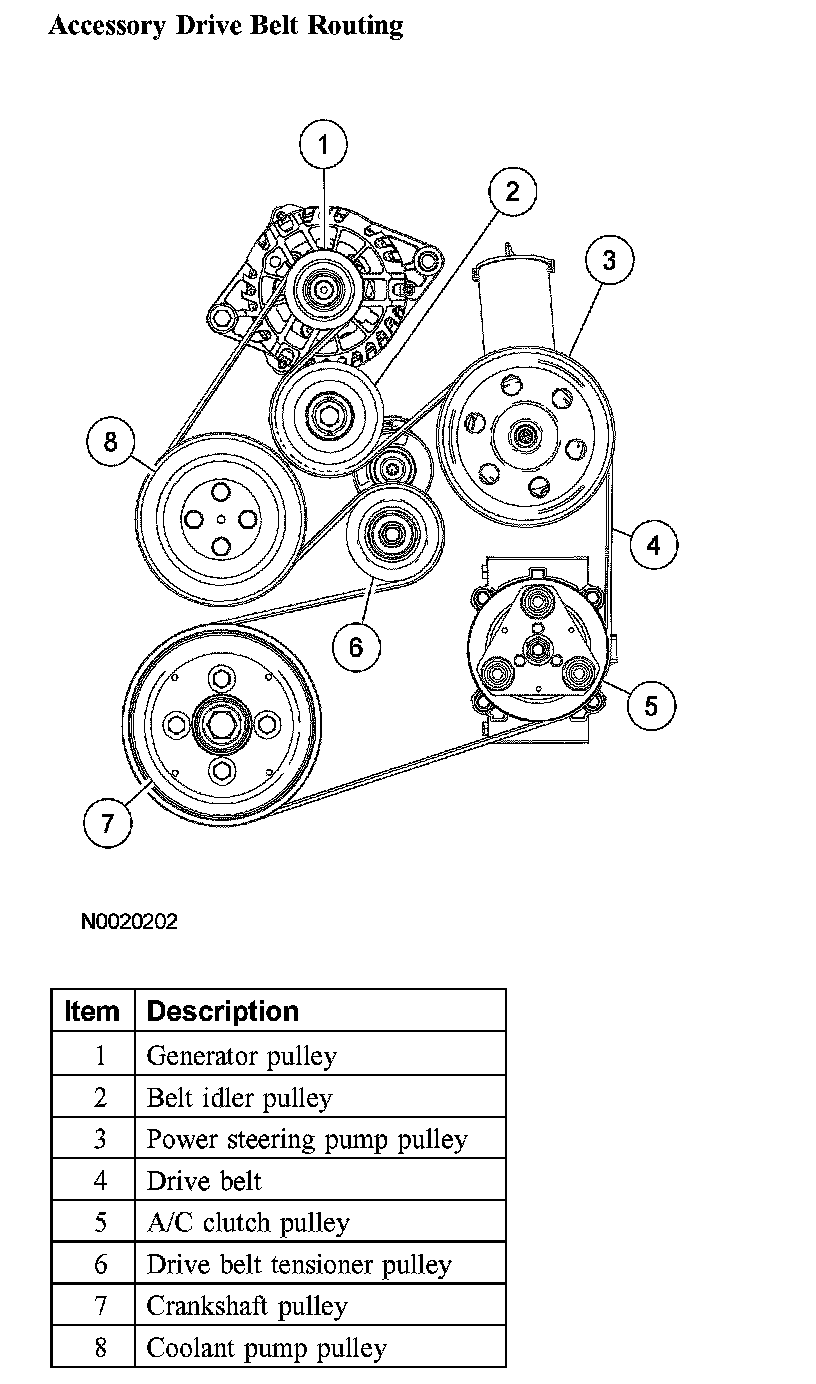

Accessory Drive Belt Routing:

This vehicle is equipped with:
^ a V-ribbed serpentine accessory drive belt.
^ automatic drive belt tensioner(s).
^ a V-ribbed coolant pump belt.

New drive belts should be of the same type as originally installed.
