Symptom Related Diagnostic Procedures

SYMPTOM CHART

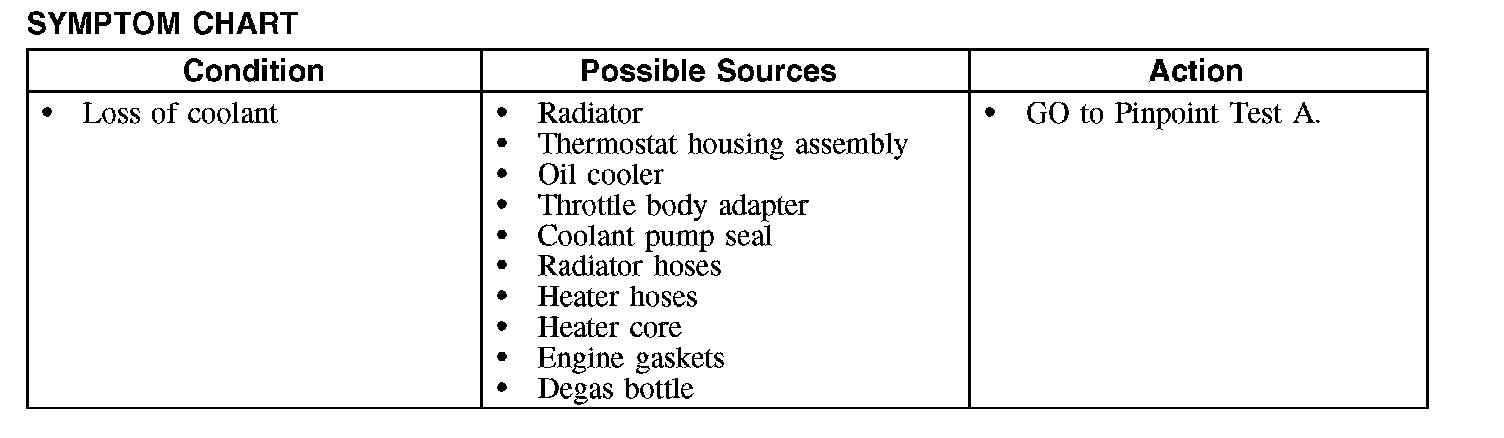

SYMPTOM CHART (PART 1):

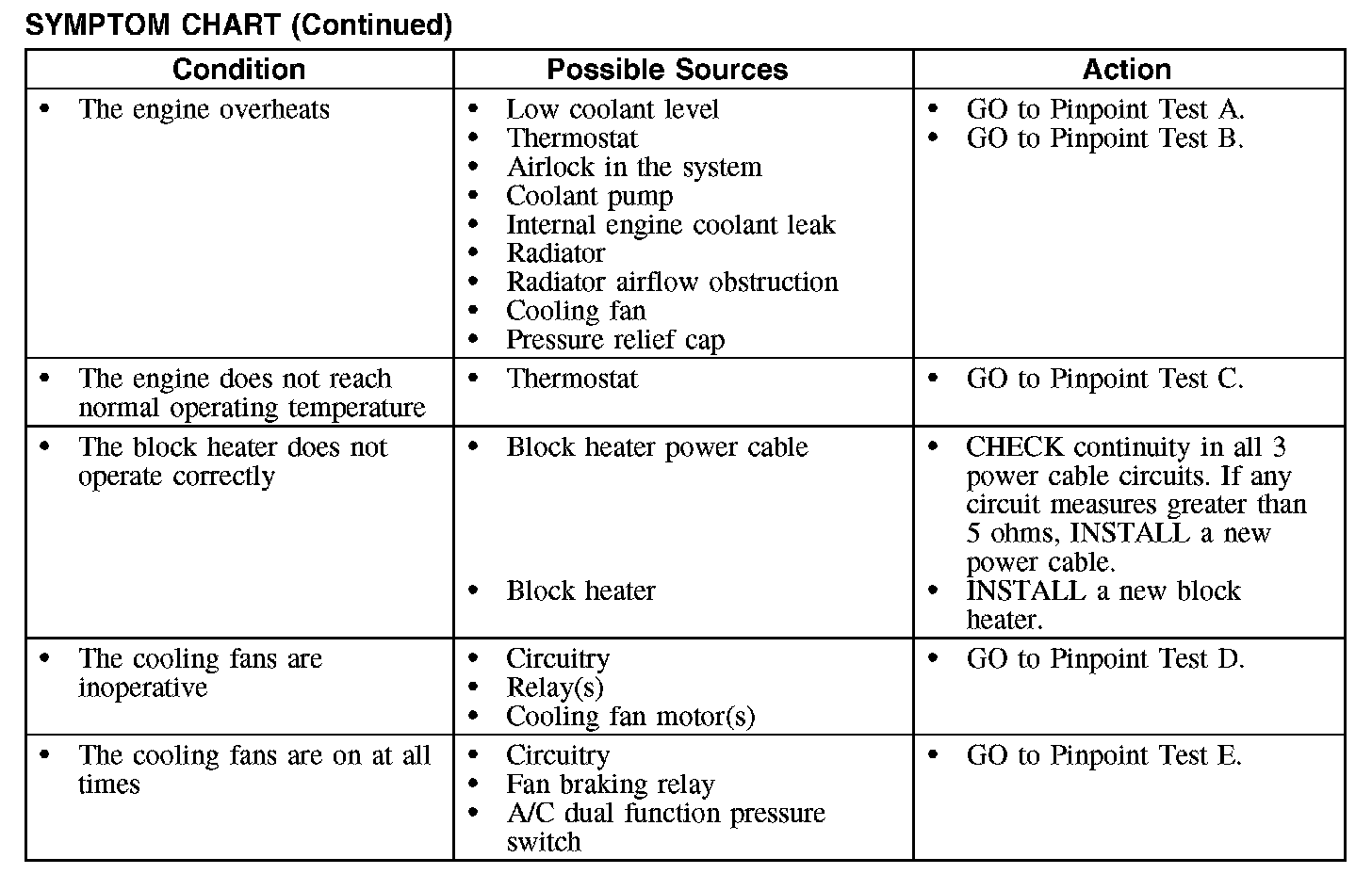

SYMPTOM CHART (PART 2):
