Component Test - Switch
SWITCH
1.

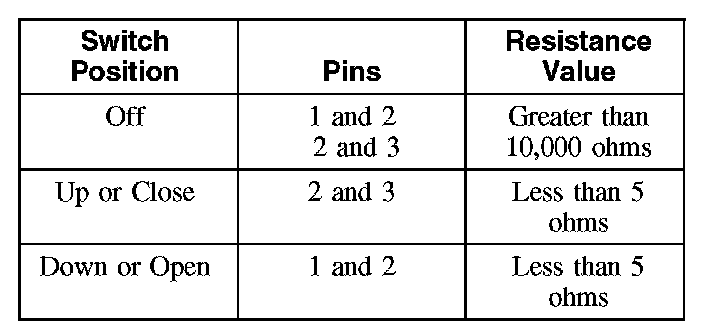

Measure the resistance between the given roof opening panel switch pins (component side) as above.
