Sunroof / Moonroof Windguard: Service and Repair

AIR DEFLECTOR

Removal and Installation
1. Open the roof opening panel fully to access the air deflector.

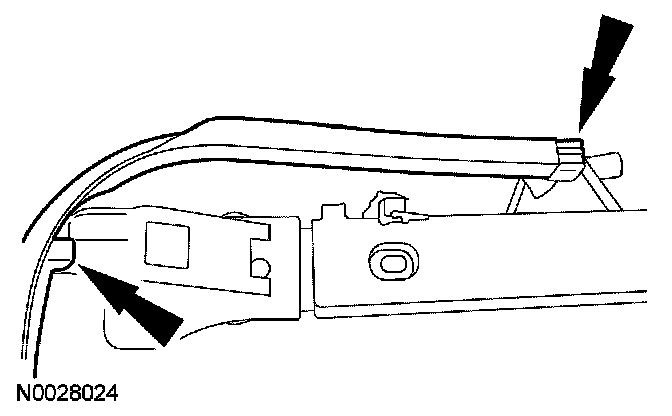

2. NOTE: The roof opening panel air deflector is snap fit attached at 4 locations.

Remove the air deflector.
- Using a flat-blade screwdriver, gently pry the air deflector from the rear LH and RH attaching brackets until the snap features disengage.
- Using a flat-blade screwdriver, gently pry the air deflector from the front LH and RH attaching brackets until the snap features disengage.

3. To install, reverse the removal procedure.
