Sunroof / Moonroof Track: Service and Repair

ROOF OPENING PANEL TRACK AND RAIL ASSEMBLY

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Remove the roof opening panel glass. Refer to Roof Opening Panel Glass.

2. NOTE: The frame will automatically stop in the flush position when the close switch is pressed.

Operate roof opening panel to the flush position.

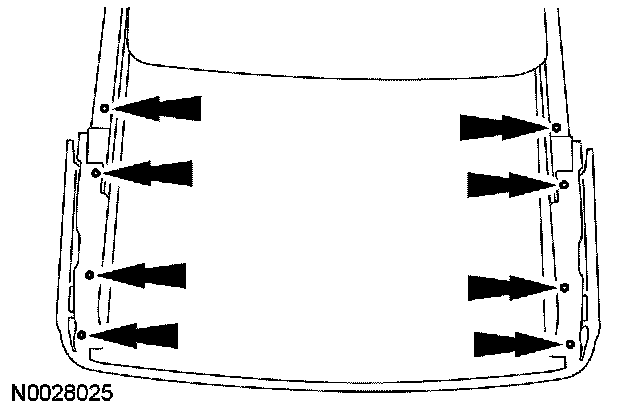

3. Remove the 8 track and rail screws.
4. Remove the roof opening panel motor. Refer to Roof Opening Panel Motor.
5. Manually pull the roof opening panel shield and trough to the forward position.

6. NOTE: Lift the LH and RH track and rail out of the top of the vehicle.

Remove track and rail assembly.

7. To install, reverse the removal procedure.
