Roof Opening Panel Shield

ROOF OPENING PANEL SHIELD

Part 1:

Part 2:

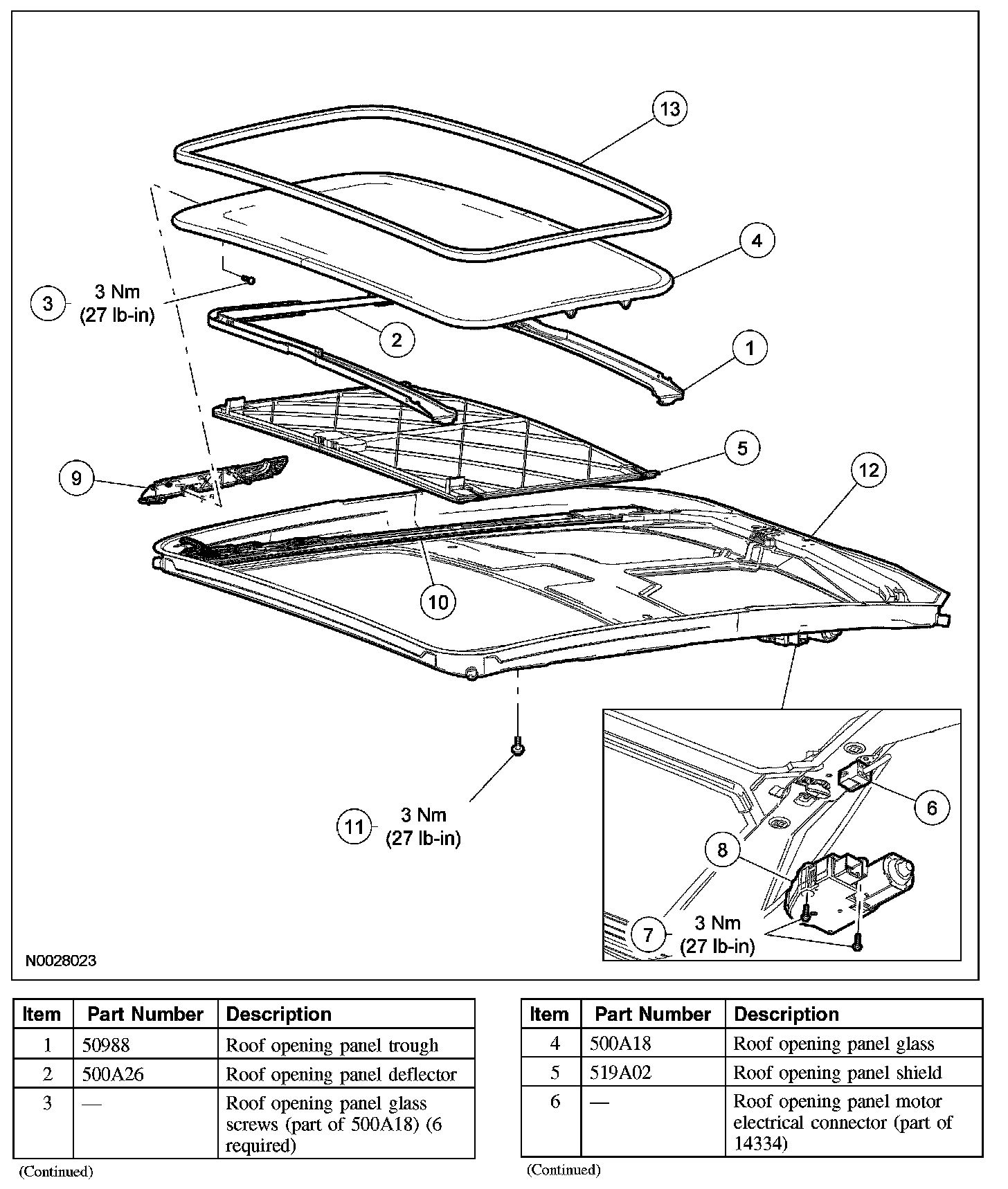

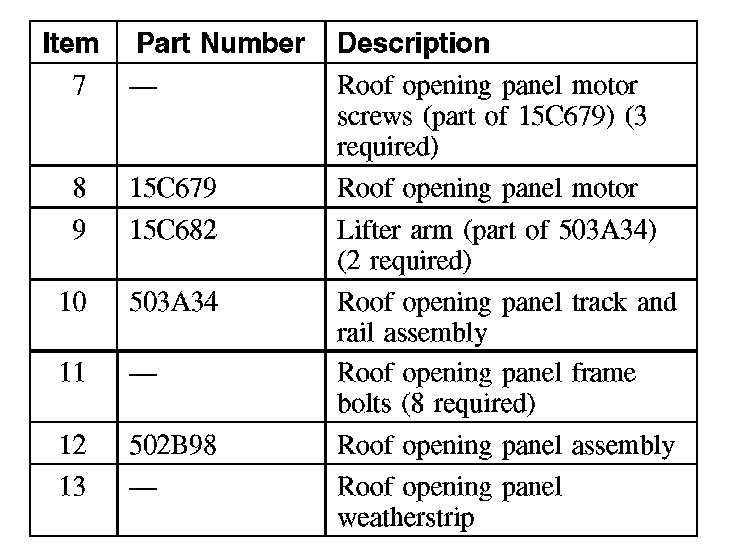

Exploded View

Removal and Installation
1. Open the roof opening panel glass halfway.
2. Release the roof opening panel trough and position aside.
3. Operate the roof opening panel glass and place in the vent position.

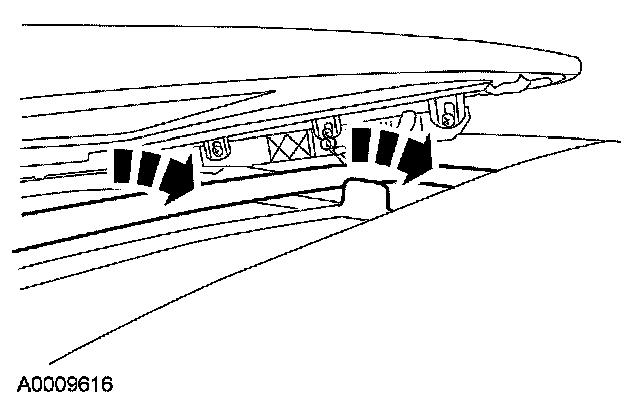

4. Slide the roof opening panel trough rearward over the roof opening panel shield stops.

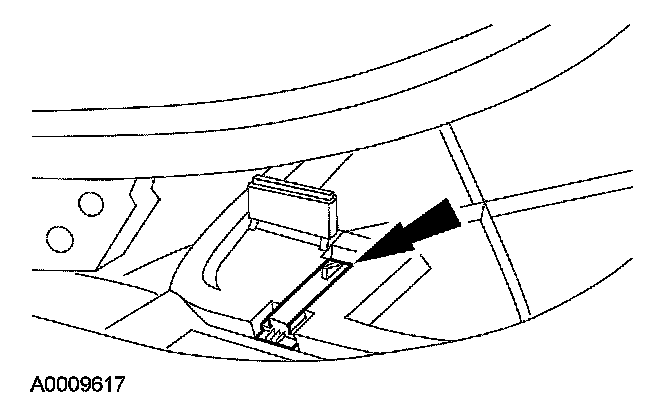

5. Beginning with the front, disengage all 4 shield guides from the track.
6. Remove the roof opening panel shield through the rear (vented) roof opening.
7. To install, reverse the removal procedure.
