Test H: The Smart Lock Does Not Operate Correctly

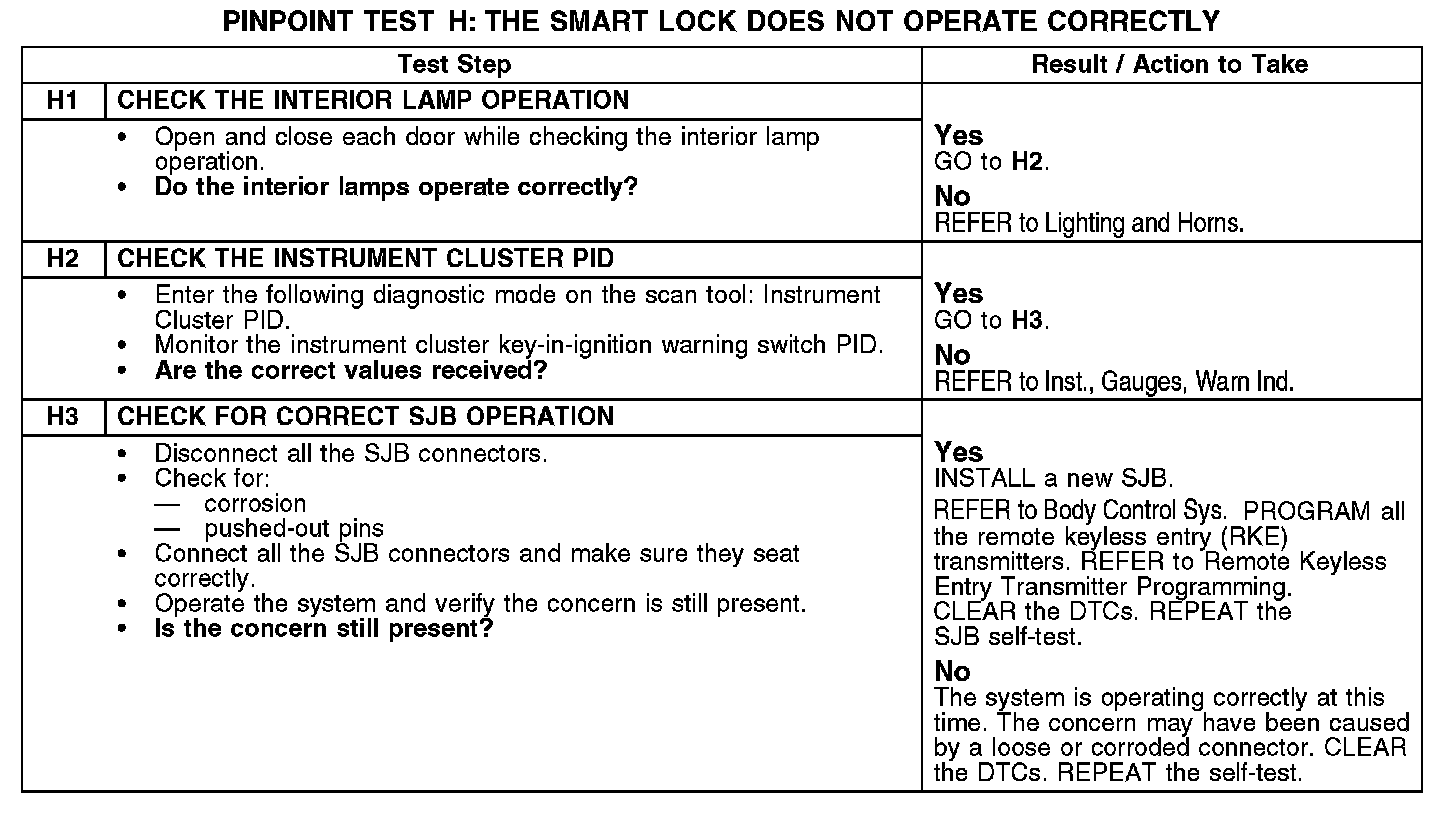

Pinpoint Test H: The Smart Lock Does Not Operate Correctly

H1-H3:

Normal Operation
Smart lock unlocks the door when the following conditions are met:
- The key is in the ignition lock cylinder and in the OFF position.
- The driver door lock control button is pressed when the driver door is open.

Possible Causes
- Key-in-ignition warning switch
- SJB
