Test G: The Auto-Lock Does Not Operate Correctly

Pinpoint Test G: The Auto-Lock Does Not Operate Correctly

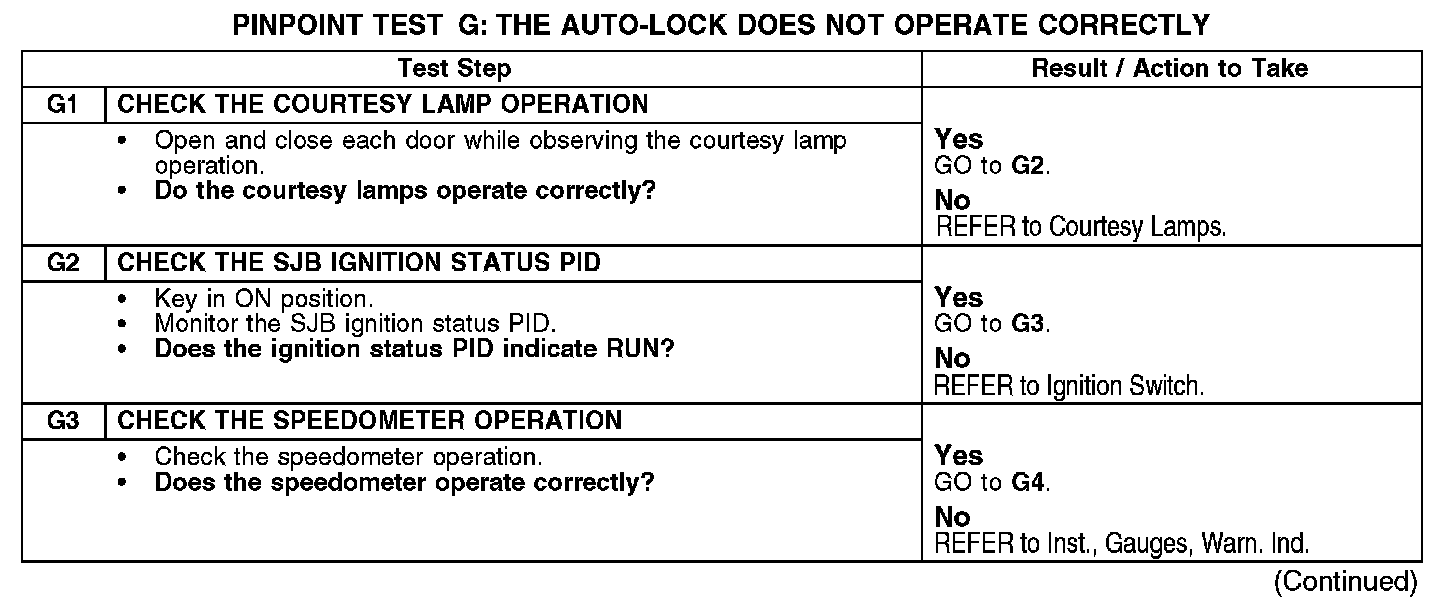

G1-G3:

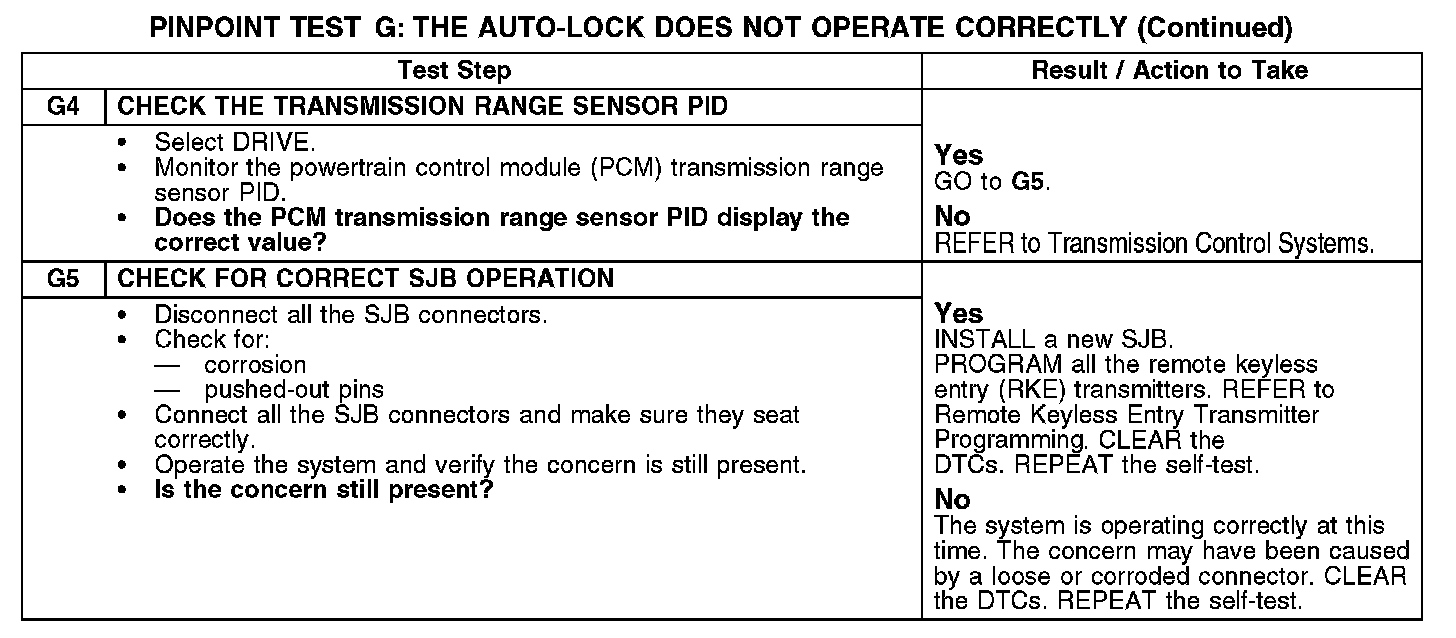

G4-G5:

Normal Operation
The autolocking function causes the vehicle to automatically lock all the doors when the following conditions are all concurrently met during the current key cycle:
- All doors are closed
- Autolocking function is active
- Key in ON position
- Transmission in DRIVE or REVERSE position
- Vehicle speed exceeds 5 km/h (3 mph)

Possible Causes
- Smart junction box (SJB)
