Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER COVER

Part 1:

Part 2:

Exploded View

Removal and Installation
1. Remove the headlamp assemblies.
2. With the vehicle in NEUTRAL, position it on a hoist.

3. NOTE: If equipped, remove the 5 pin-type retainers from the chin spoiler.

Remove the air dam.
- Remove the 7 air dam screws.
- Remove the 3 air dam bolts and the air dam.
- To install, tighten to 9 Nm (80 lb-in).

4. Remove the LH and RH front fender splash shields.
- Remove the 8 screws.
- Remove the 2 pin-type retainers and the LH and RH front fender splash shields.

5. Remove the 2 front bumper cover bolts (one on each side).
- To install, tighten to 5 Nm (44 lb-in).

6. Remove the 4 pin-type retainers and the radiator grille.
7. Remove the 2 front bumper cover pin-type retainers.
8. Remove the 4 front bumper cover bolts (two on each side).
- To install, tighten to 5 Nm (44 lb-in).

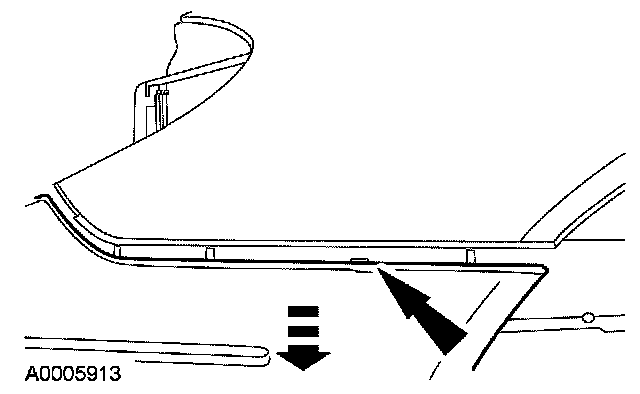

9. NOTE: The bumper cover clip must be pushed outboard to unclip it from the fender.

Unclip and remove the front bumper cover.

10. To install, reverse the removal procedure.
