Test I: Poor Quality/Distorted Sound From One Or More Speakers (Not All Speakers) - Pop Or Crackle When Driven Over Bumps

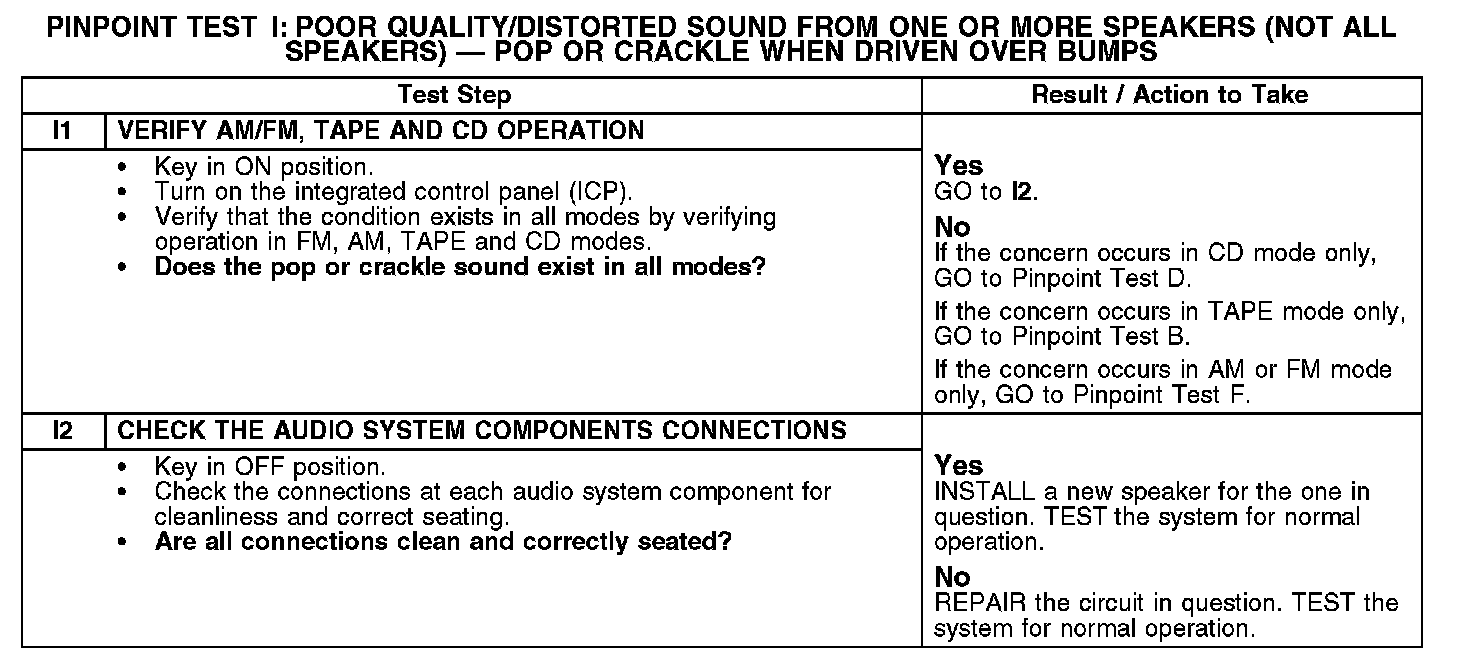

PINPOINT TEST I: POOR QUALITY/DISTORTED SOUND FROM ONE OR MORE SPEAKERS (NOT ALL SPEAKERS) - POP OR CRACKLE WHEN DRIVEN OVER BUMPS

I1-I2:

Normal Operation
The rear control unit (RCU) (also referred to as the audio unit) sends an amplified, varying AC voltage to the speakers. The AC voltage is converted to sound through the magnetic coil and speaker cone. Each speaker has a signal and return circuit and the number of speakers varies, depending on the system configuration.

Possible Causes
- Loose connection
- Speaker
