Test H: Poor Quality/Distorted Sound From One Or More Speakers - Low Volume

PINPOINT TEST H: POOR QUALITY/DISTORTED SOUND FROM ONE OR MORE SPEAKERS - LOW VOLUME

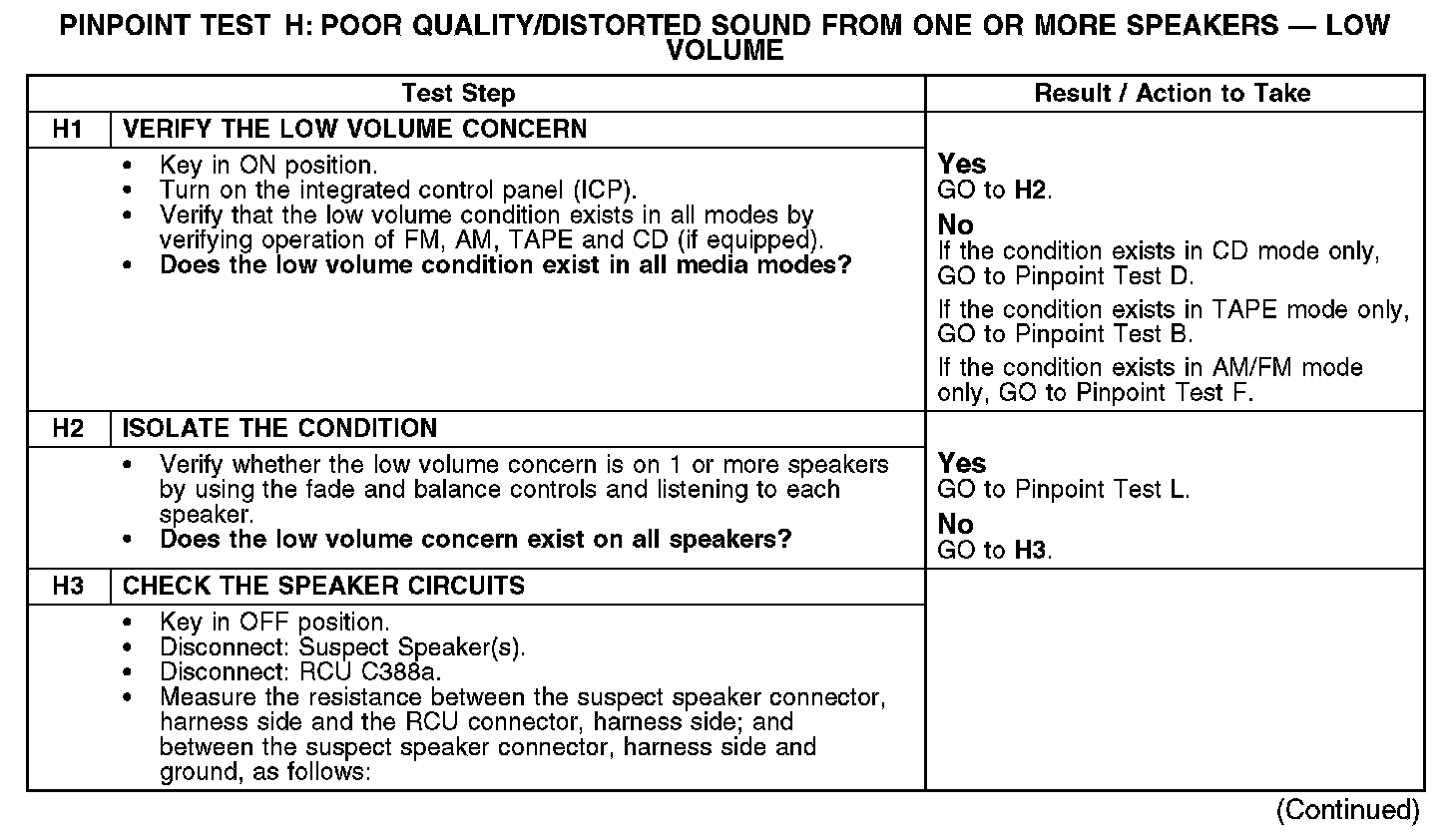

H1-H3:

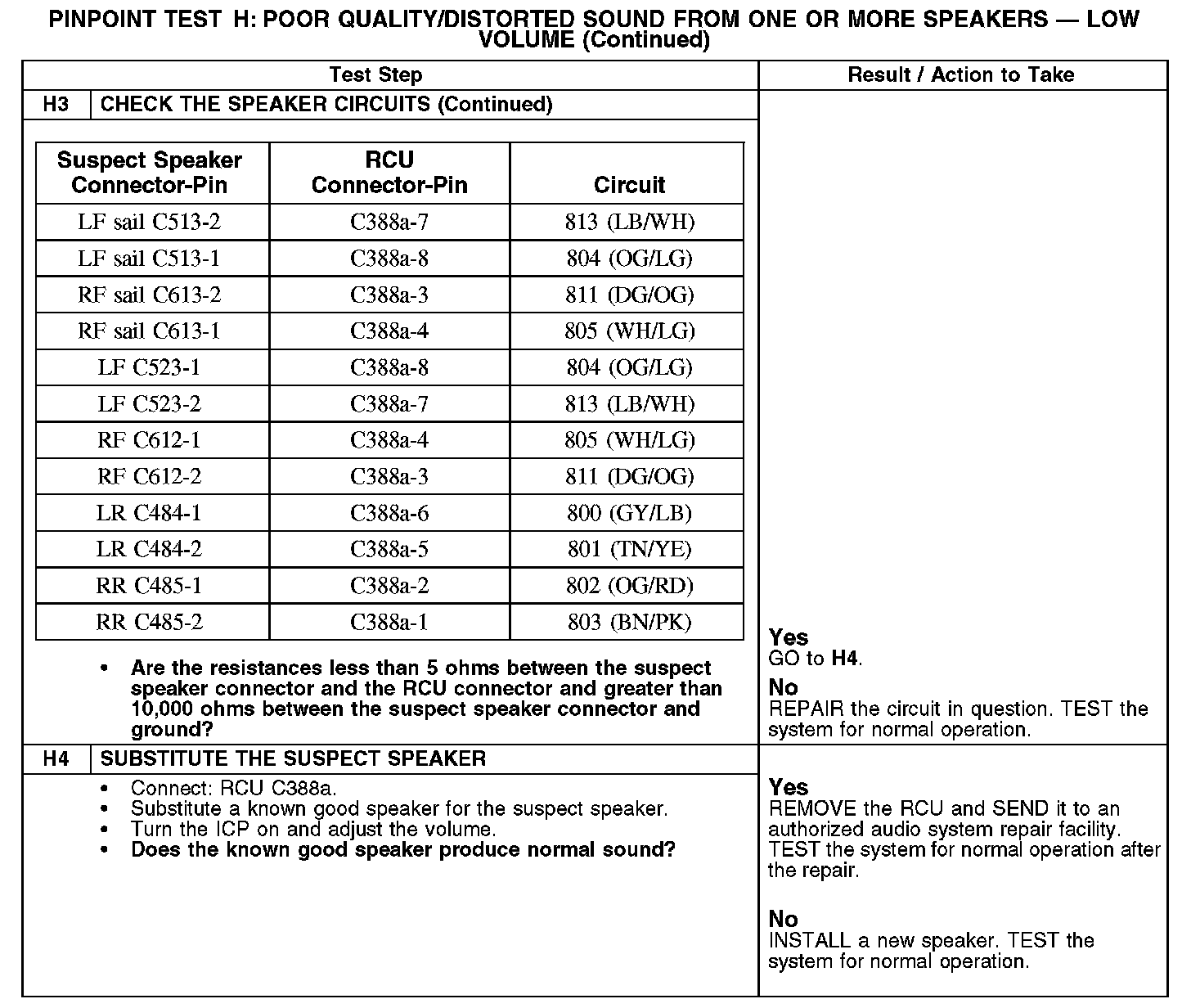

H3-H4:

Normal Operation
The rear control unit (RCU) (also referred to as the audio unit) sends an amplified, varying AC voltage to the speakers. The AC voltage is converted to sound through the magnetic coil and speaker cone. Each speaker has a signal and return circuit and the number of speakers varies, depending on the system configuration.

Possible Causes
- Circuit 800 (GY/LB) open or short to ground
- Circuit 801 (TN/YE) open or short to ground
- Circuit 802 (OG/RD) open or short to ground
- Circuit 803 (BN/PK) open or short to ground
- Circuit 804 (OG/LG) open or short to ground
- Circuit 805 (WH/LG) open or short to ground
- Circuit 811 (DG/OG) open or short to ground
- Circuit 813 (LB/WH) open or short to ground
- Speaker
- RCU
