Remote Control: Service and Repair

INTEGRATED CONTROL PANEL (ICP)

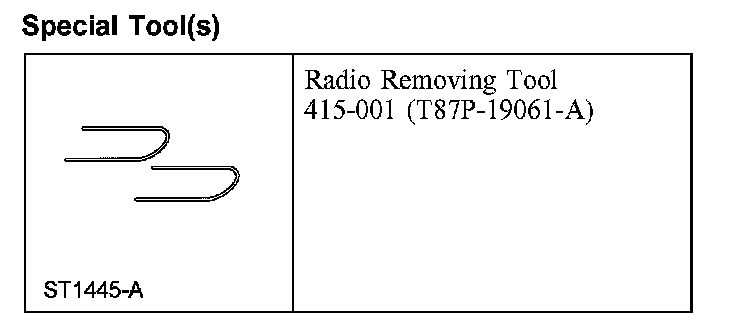

Radio Removing Tool:

Special Tool(s)







Removal and Installation

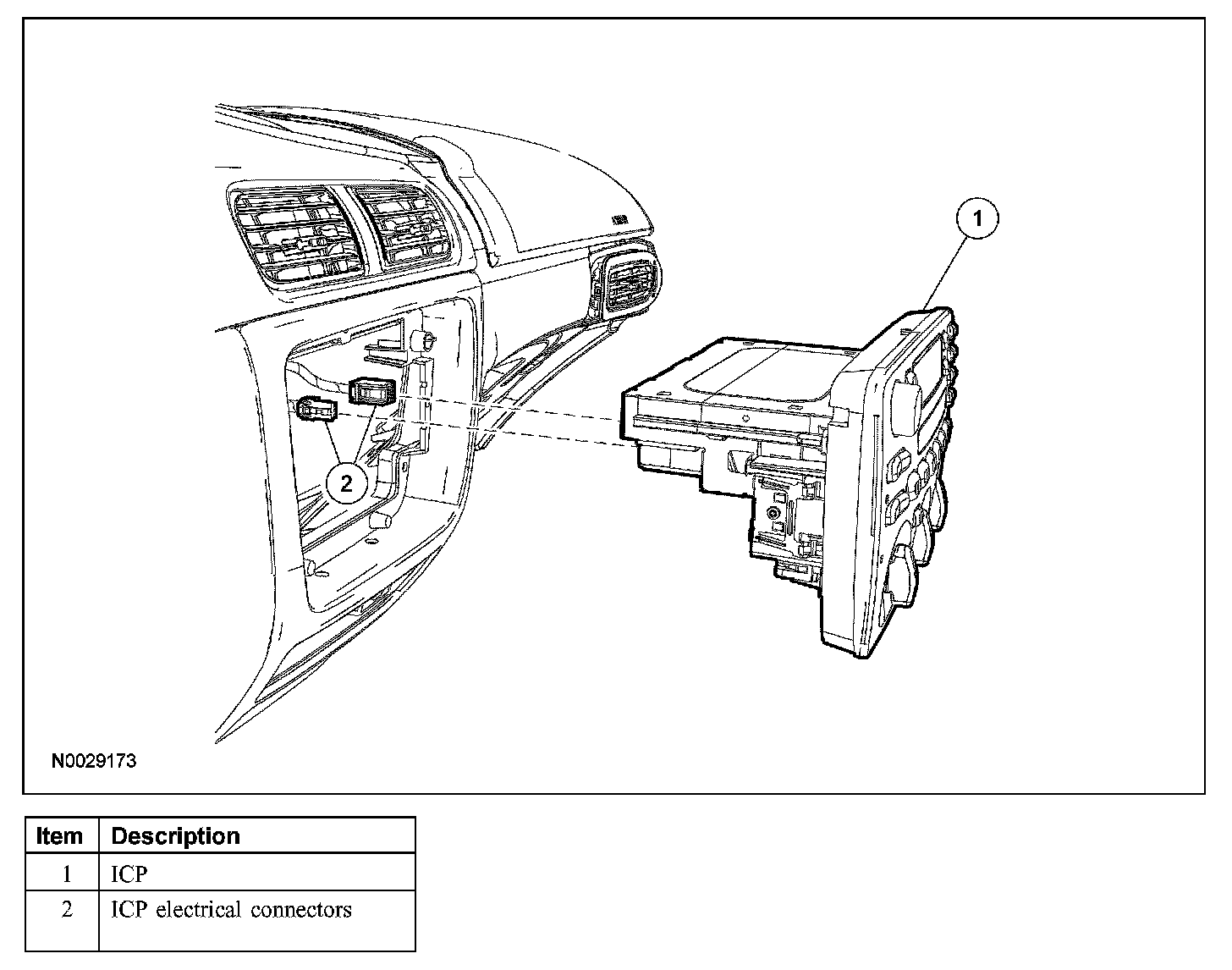

1. NOTE: The manual A/C integrated control panel is shown; the electronic automatic temperature control (EATC) panel is similar.

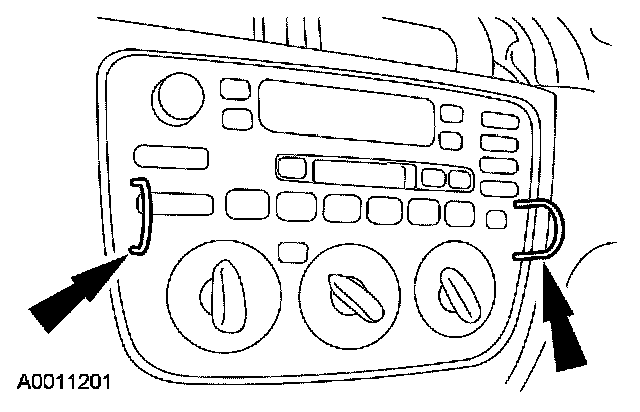

Using the special tool, remove the ICP.
- Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
