Door Sensor/Switch (For Alarm): Service and Repair

DOOR DISARM SWITCH







Removal and Installation
1. Remove the LH front door trim panel.
2. Remove the watershield.

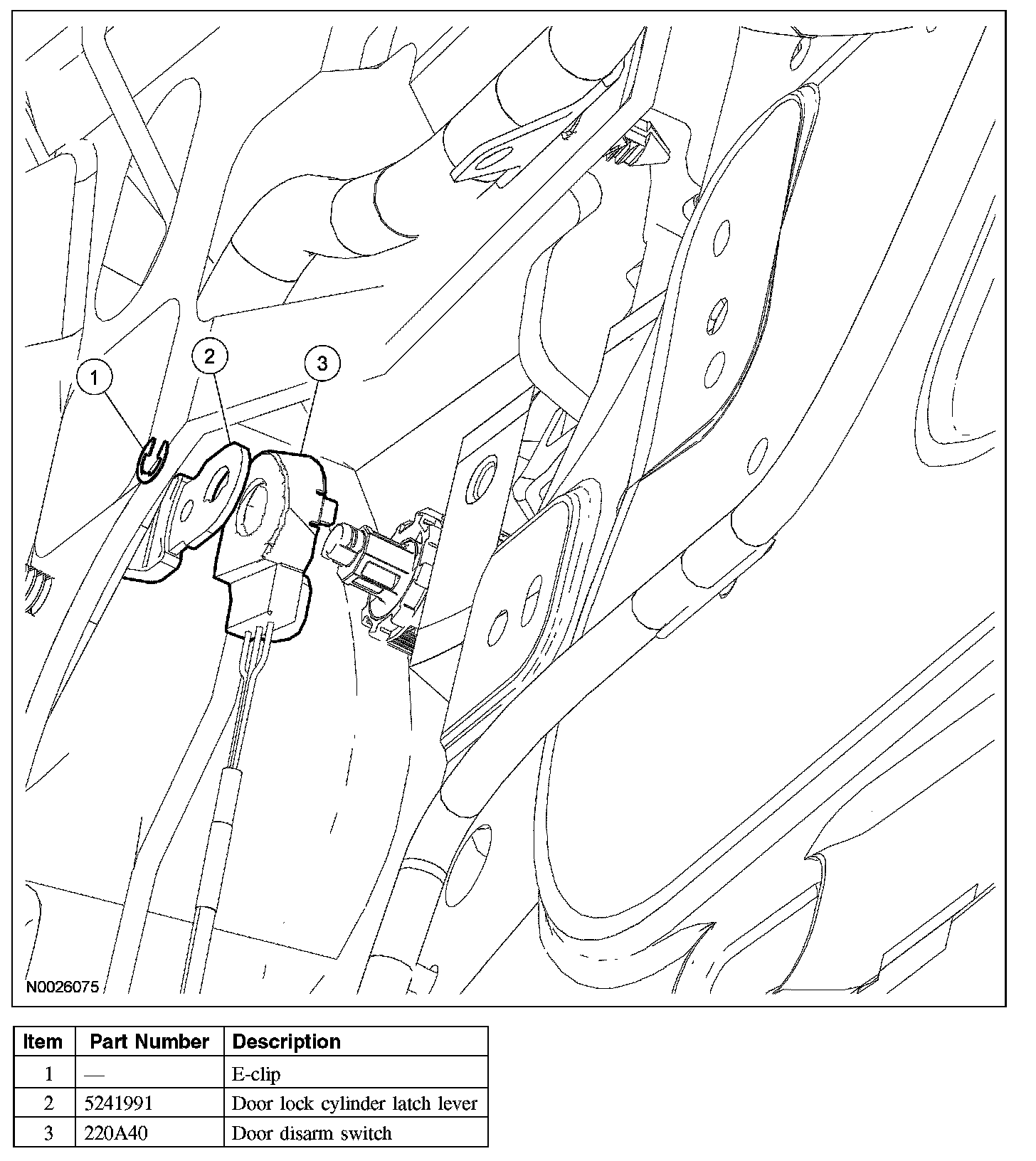

3. Remove the E-clip and disconnect the latch lever from the door lock cylinder.







4. NOTE: The door disarm switch can be installed in more than one position. Before removing the switch from the door lock cylinder it may be necessary to mark the position of the switch in relation to the door lock cylinder.

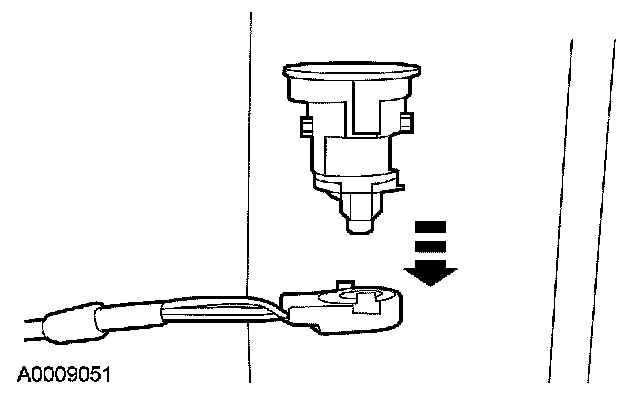

Remove the door disarm switch.
- Disconnect the electrical connector.

5. NOTE: The door disarm switch can be installed in more than one position. Use the reference marks applied in the removal procedure to index the new door disarm switch to the door lock cylinder.

To install, reverse the removal procedure.
