Test C: The Wipers Stay On Continuously

PINPOINT TEST C: THE WIPERS STAY ON CONTINUOUSLY

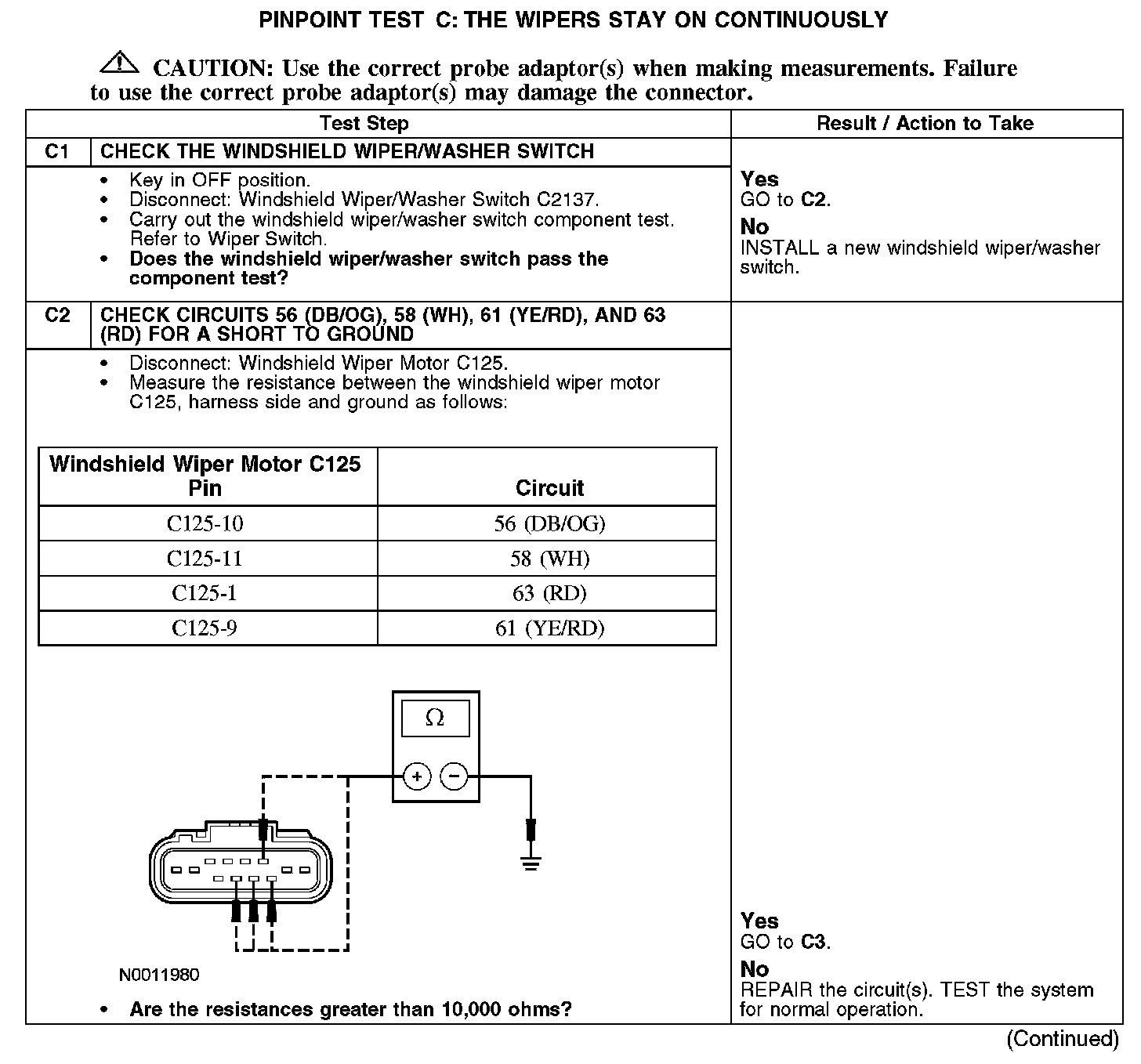

C1-C2:

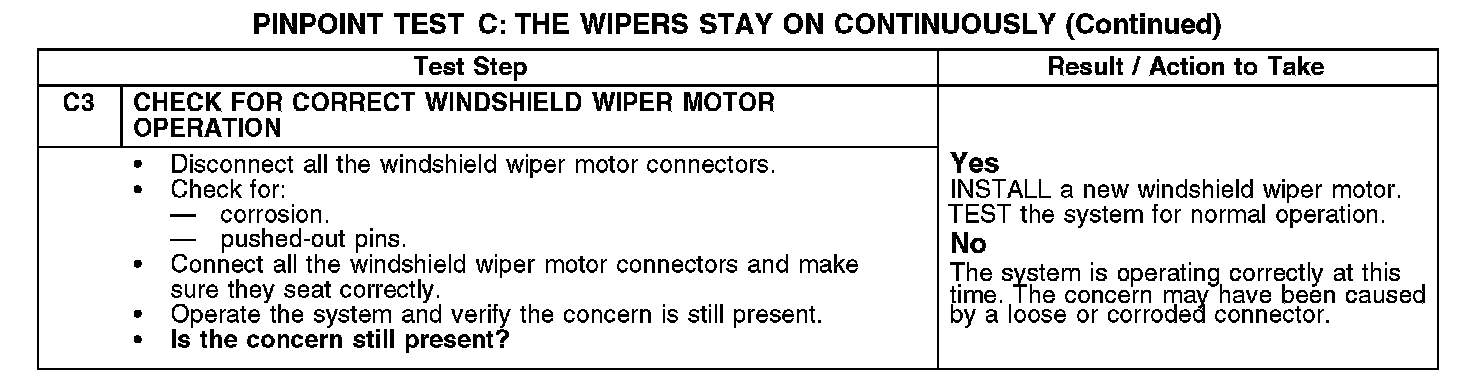

C3:

Normal Operation
The windshield wiper motor receives inputs from the windshield wiper/washer switch circuits 56 (DB/OG), 58 (WH), 61 (YE/RD), and 63 (RD). The module (internal) controls the run/park relay (internal) using internal circuitry to control the windshield wiper motor in conjunction with the HI/LO relay (internal).

Possible Causes
- Circuit 56 (DB/OG) short to ground
- Circuit 58 (WH) short to ground
- Circuit 61 (YE/RD) short to ground
- Circuit 63 (RD) short to ground
- Windshield wiper motor
- Windshield wiper/washer switch
