Convertible

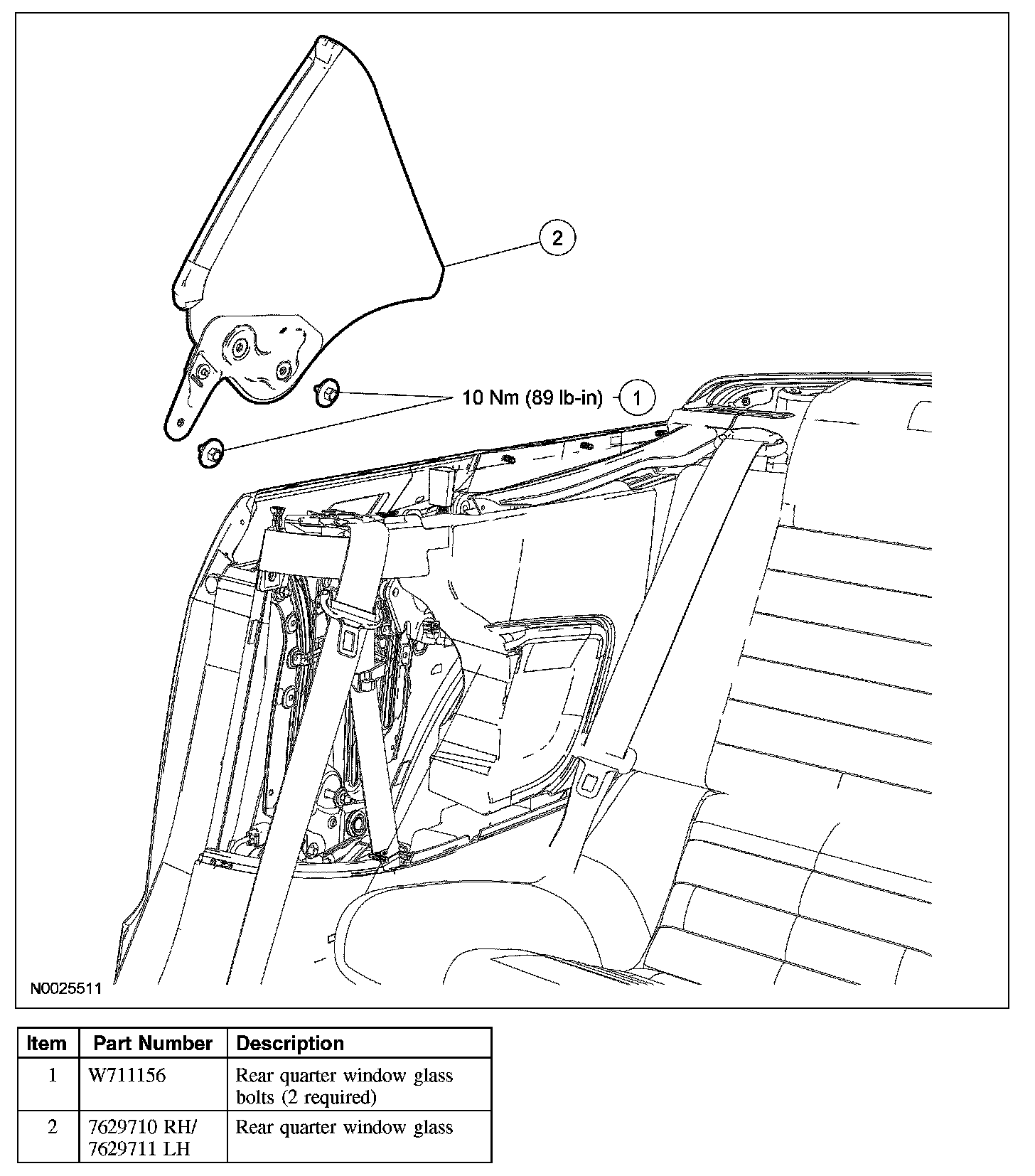

WINDOW GLASS - REAR QUARTER, CONVERTIBLE







Removal
1. Remove the rear quarter trim panel.
2. Remove the 2 bolts and the rear quarter window glass.

Installation
1. Install the rear quarter window glass and finger tighten the 2 bolts.
2. Adjust the rear quarter window glass to desired position and tighten the 2 bolts to 10 Nm (89 lb-in).
3. Install the rear quarter trim panel.
