Test C: Clutch Hydraulic System Check

PINPOINT TEST C: CLUTCH HYDRAULIC SYSTEM CHECK

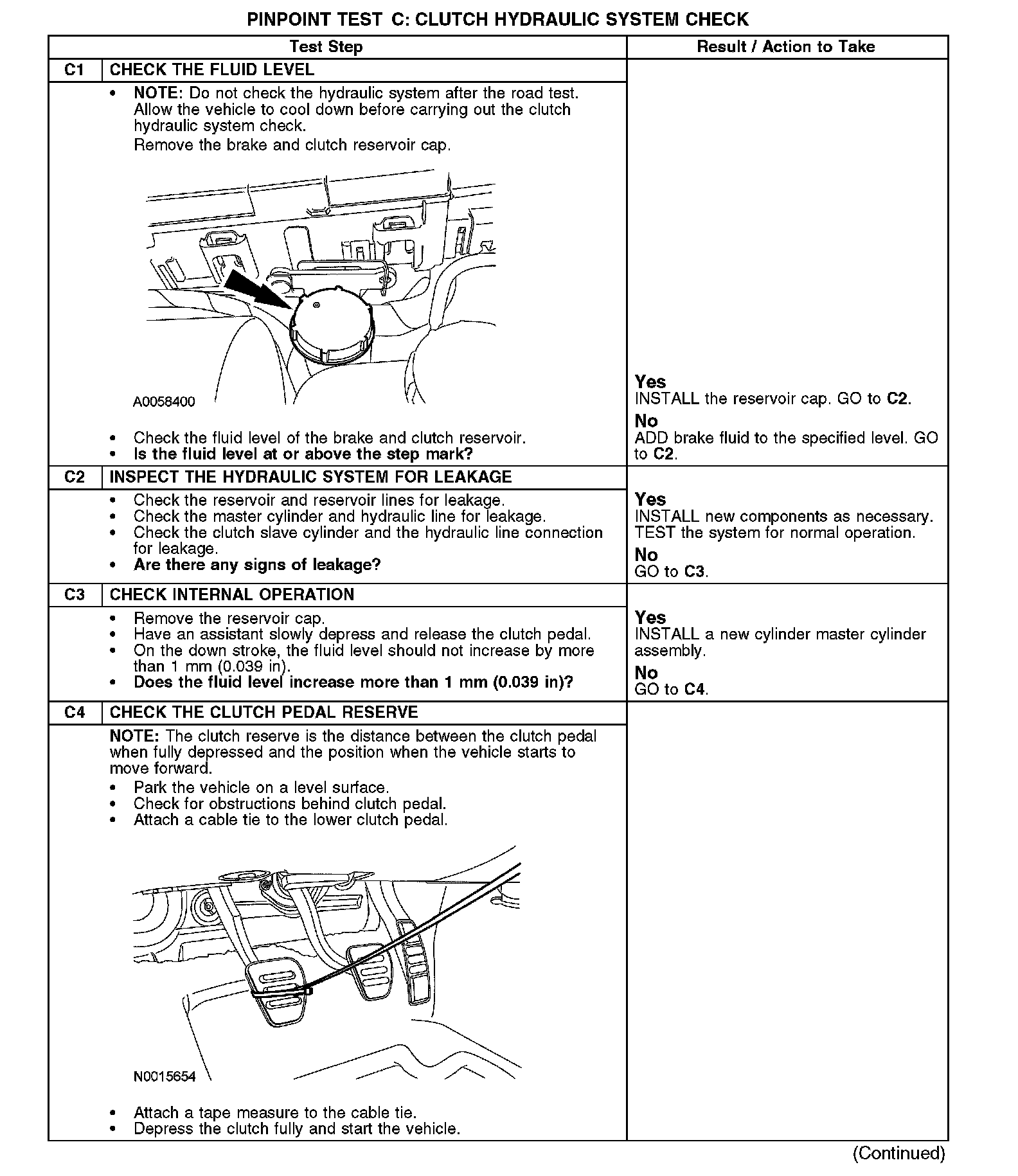

C1-C4:

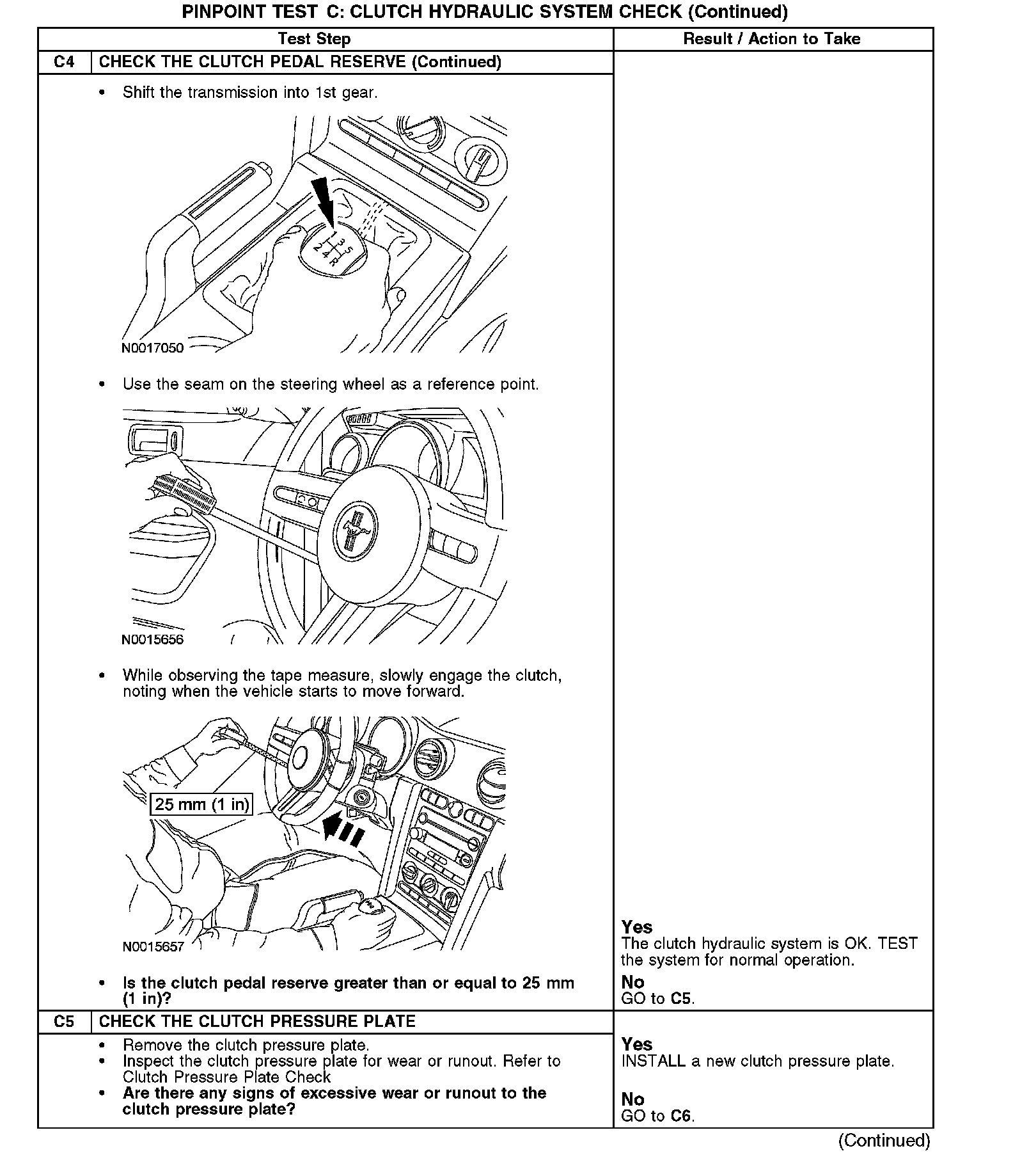

C4-C5:

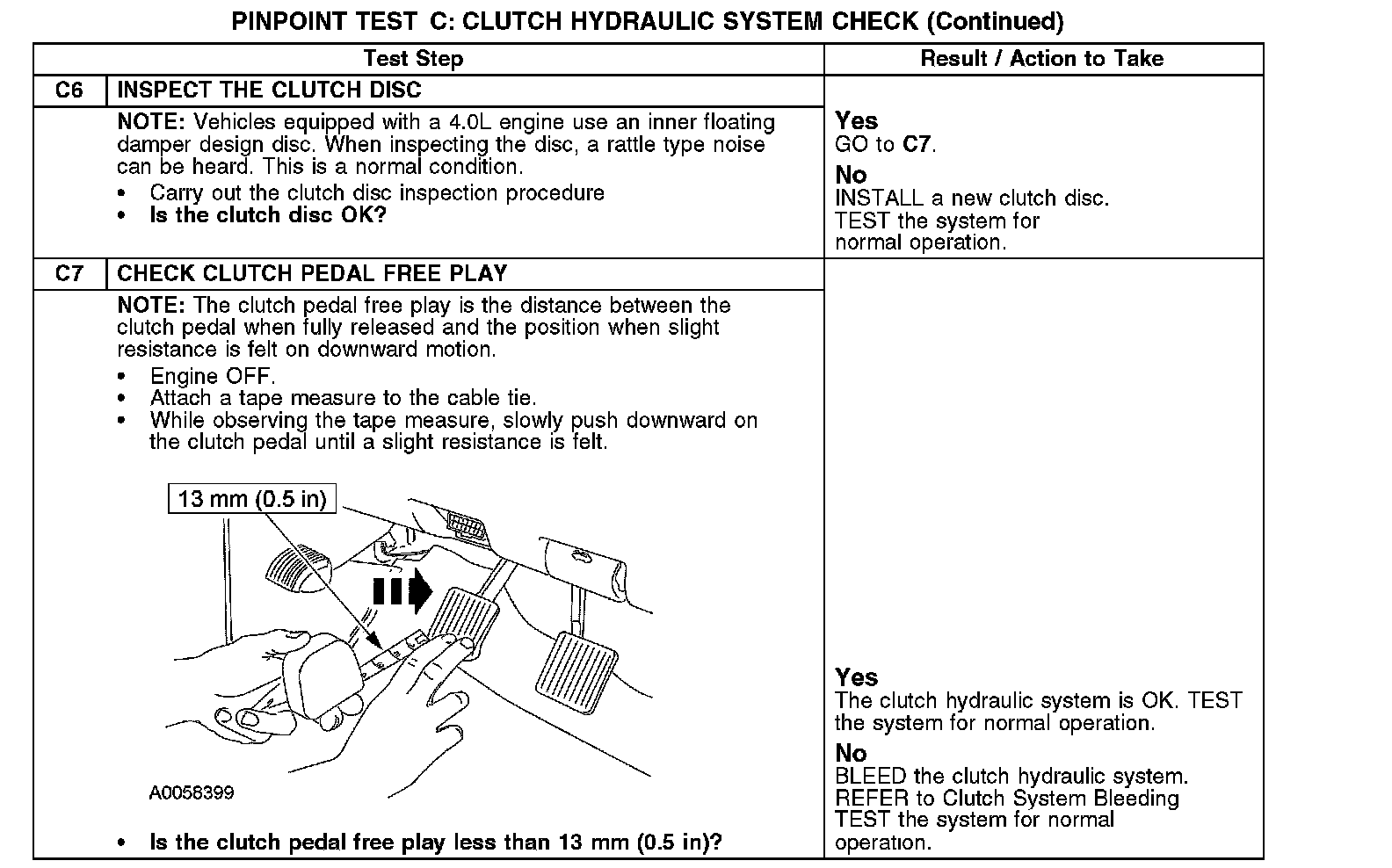

C6-C7:
