Manual Transaxle/Transmission - TR6060

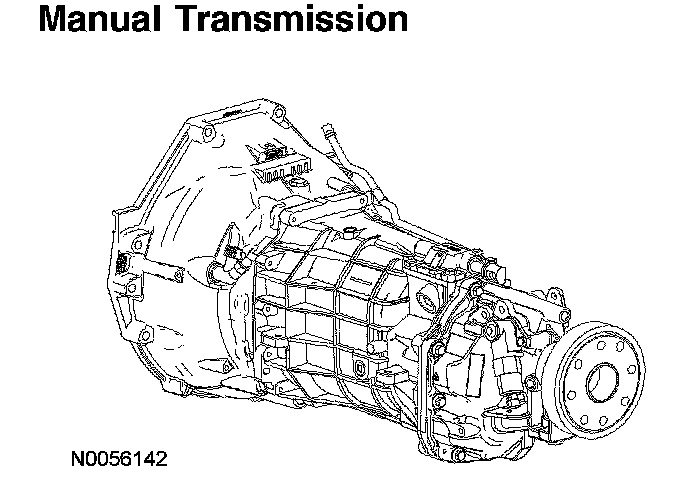

Manual TransmissionManual Transmission:
The TR-6060 6-speed manual transmission features:
^ six forward speeds and one reverse speed.
^ forward gears are synchronized and helical cut.
^ a reverse gear operates through a constant-mesh, fully synchronized system.
^ a shift interlock system prevents the engagement of more than one gear.
^ the countershaft is a one-piece design for added torque capacity.
^ two tapered roller bearings on the output shaft.
^ two tapered roller bearings on the countershaft cluster.
^ a tapered roller bearing on the input shaft.
^ a tapered roller bearing on the countershaft extension.
^ countershaft cluster endplay controlled by shims located in the transmission clutch housing.
^ input/output shaft endplay is controlled by shims located in the transmission clutch housing.
^ removable wear pads on the shift forks.
^ an aluminum main case, extension housing and clutch housing.

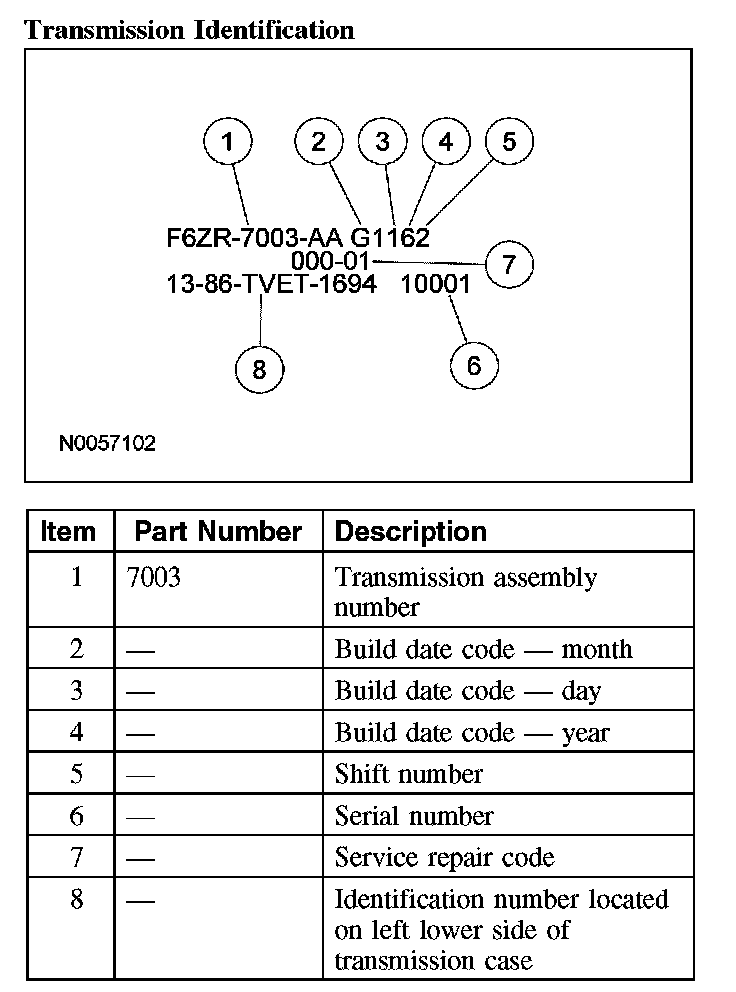

Transmission Identification
The transmission identification tag is located under the lower bolt that retains the extension housing to the main case.
The 6 speed (TR-6060) transmission is available for the Mustang Shelby GT500 5.4L (4V).
Transmission Identification:
