Manual Transaxle/Transmission - T5OD

Transmission Identification
The transmission identification tag is located under the lower left bolt that retains the extension housing to the case.

The T5OD transmission is available for the Mustang 4.0L SOHC.

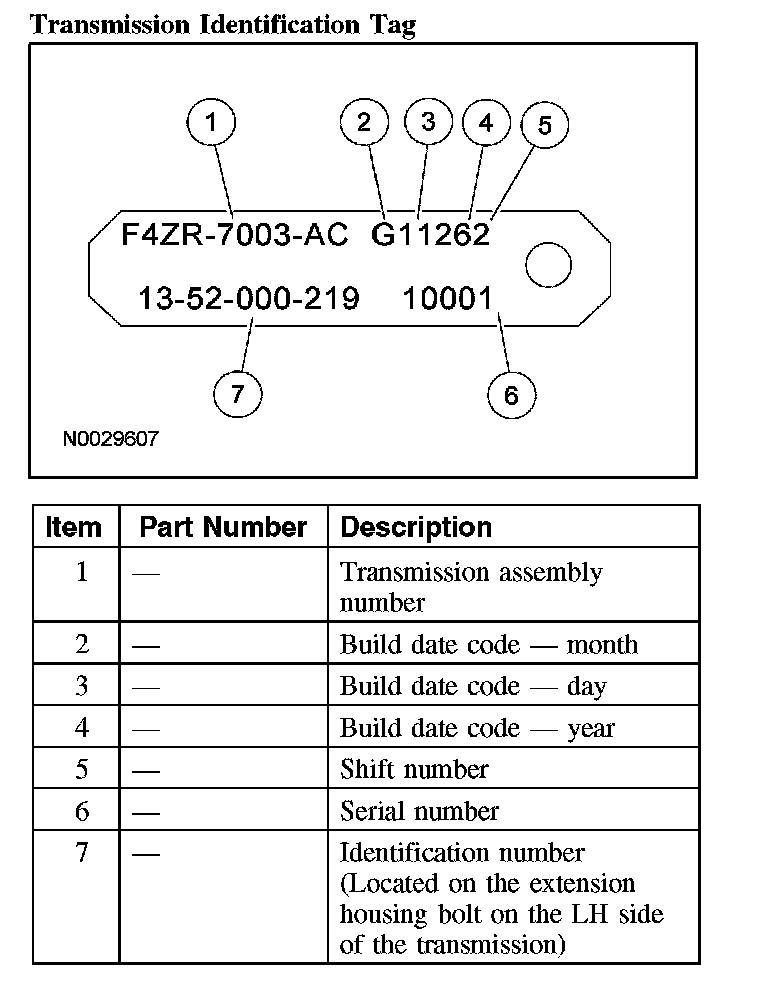

Transmission Identification Tag:
