Clutch Pressure Plate Locating Dowels

Clutch Pressure Plate Locating Dowels

Removal

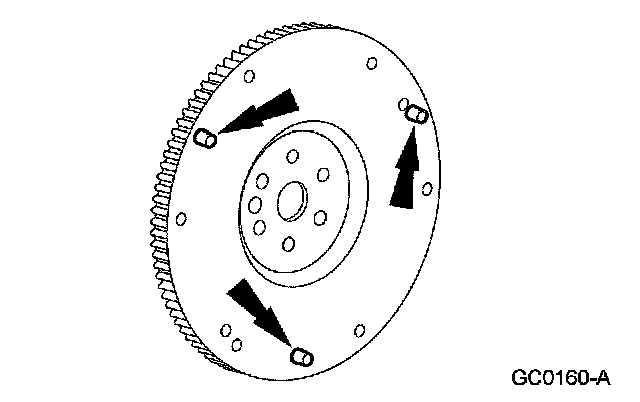

1. NOTE: Take care not to damage the flywheel dowel holes or the surface areas around the flywheel dowel during removal.

Remove the flywheel dowels by using a drift pin where the flywheel dowel is installed in a through hole and a pair of locking pliers where the flywheel dowel is installed in a blind hole.





Installation

1. NOTE: Care should be taken to drive the flywheel dowel squarely into place until it is fully seated and to not damage the surrounding surface areas.

Install all flywheel dowels by driving them into place using a brass or plastic mallet.
