Removal and Replacement

Clutch Master Cylinder

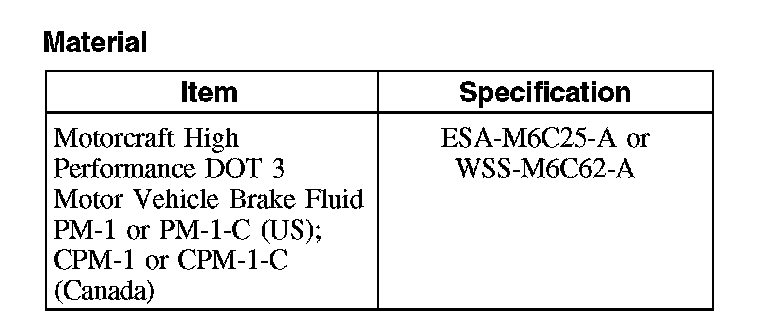

Material:

Removal and Installation

WARNING: Carefully read cautionary information on product label. For additional information, refer to product Material Safety Data Sheet (MSDS). For 24-hour MEDICAL EMERGENCY INFORMATION on Ford/Motorcraft products call: 1-800-959-3673 (FORD). Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted or plastic surfaces. If the brake fluid is spilled onto a painted or plastic surface, wash immediately with water.

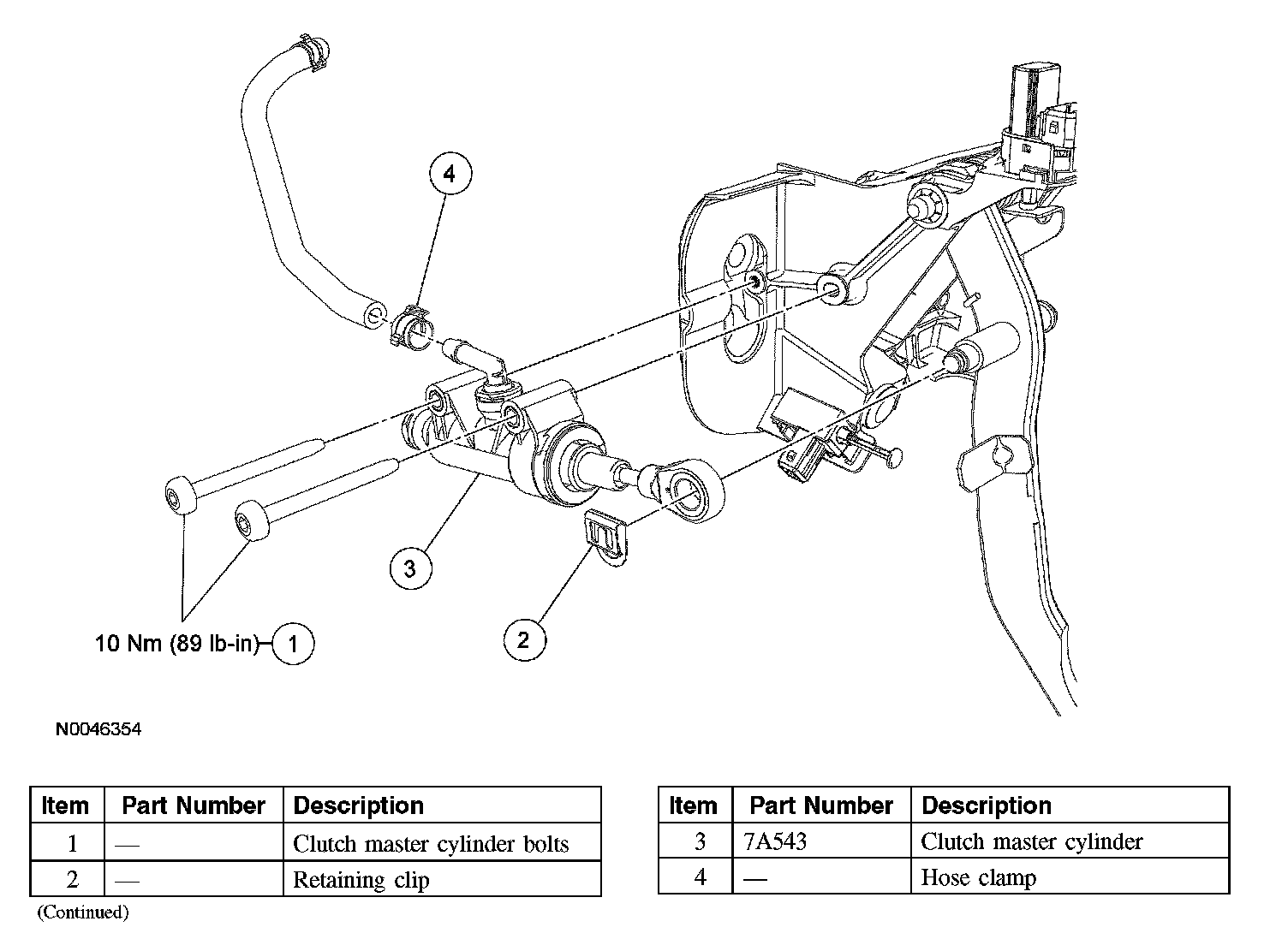

1. Remove the brake pedal and bracket assembly.
2. Remove the retaining clip from the clutch pedal pin.
3. Remove the 2 clutch master cylinder bolts, then disconnect the clutch master cylinder from the clutch pedal.
^ To install, tighten to 10 Nm (89 inch lbs).
4. Remove the reservoir hose from the clutch master cylinder.
5. To install, reverse the removal procedure.
^ Install new hose clamps on the reservoir hose.
^ Pump the clutch pedal until all the air is forced back into the brake master cylinder reservoir.
^ Refill the brake and clutch reservoir with the specified fluid.
^ Check the clutch for normal operation.
