Transmission Connector Layouts

Transmission Connector Layouts

Connector Reference and Terminal Readings

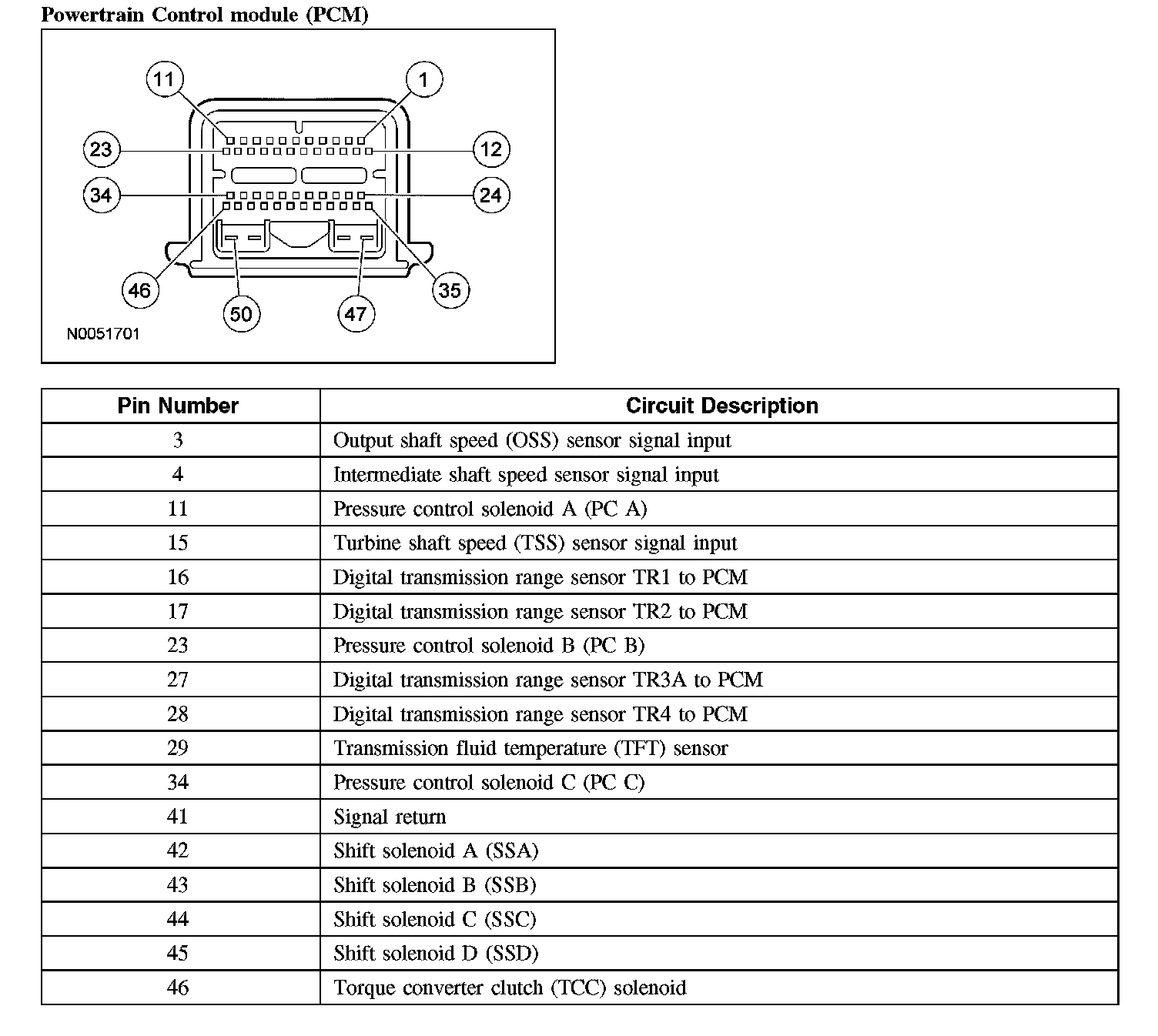

Powertrain Control Module (PCM):

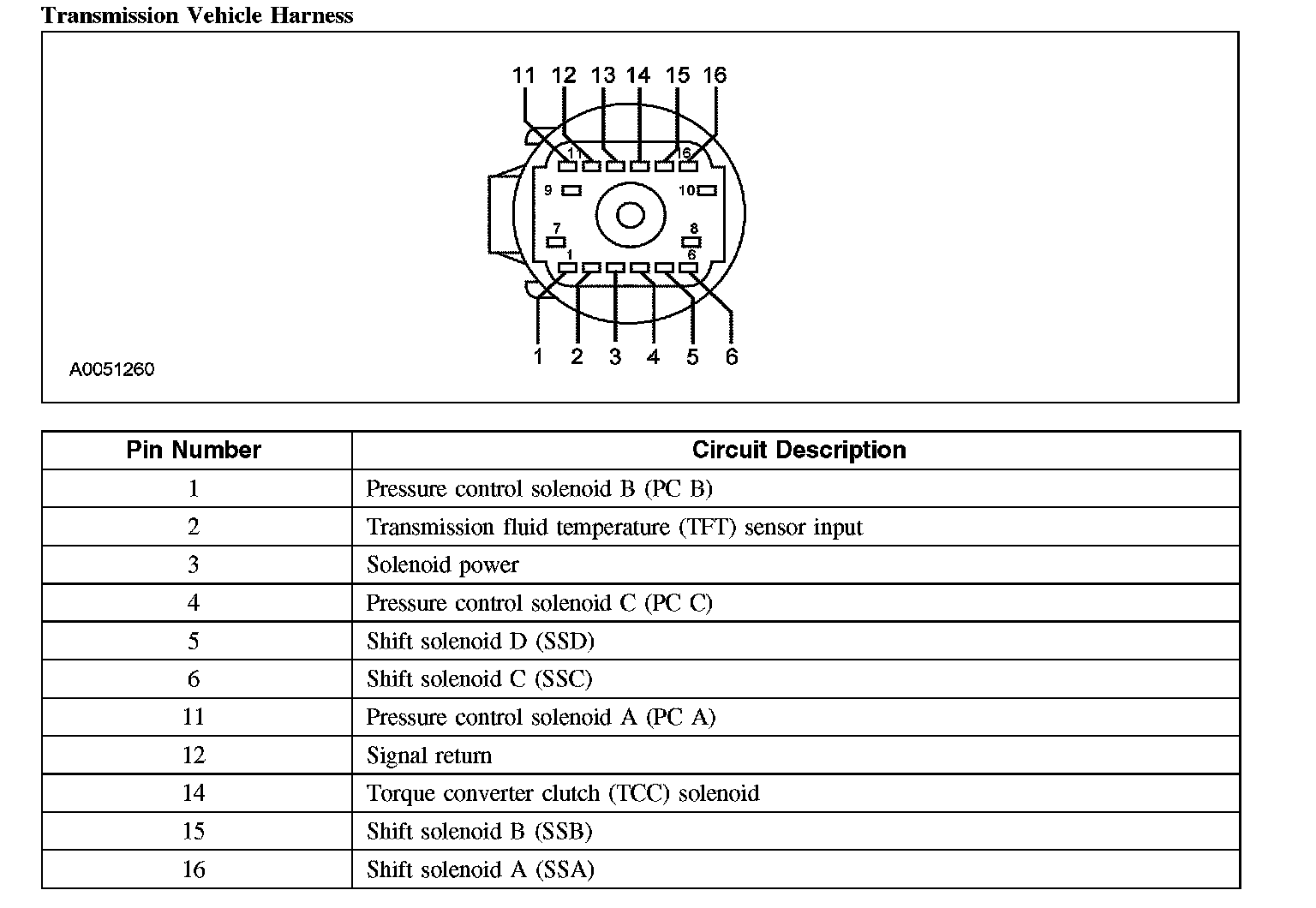

Transmission Vehicle Harness:

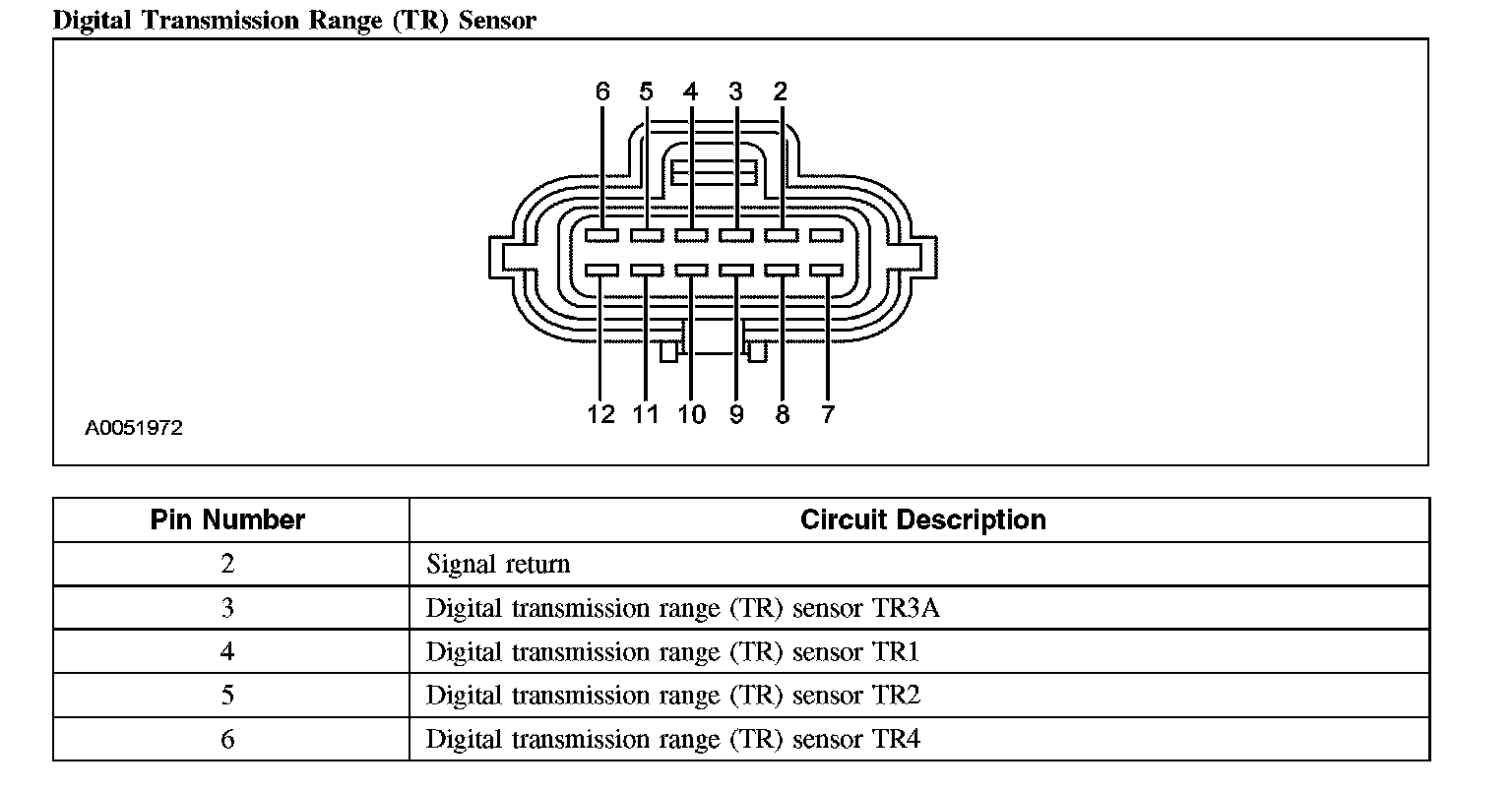

Digital Transmission Range (TR) Sensor (Part 1):

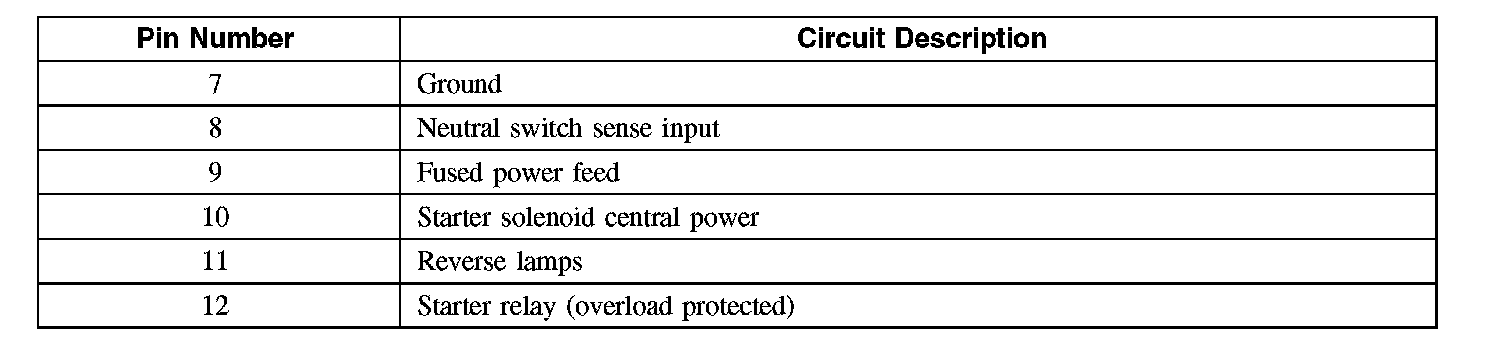

Digital Transmission Range (TR) Sensor (Part 2):

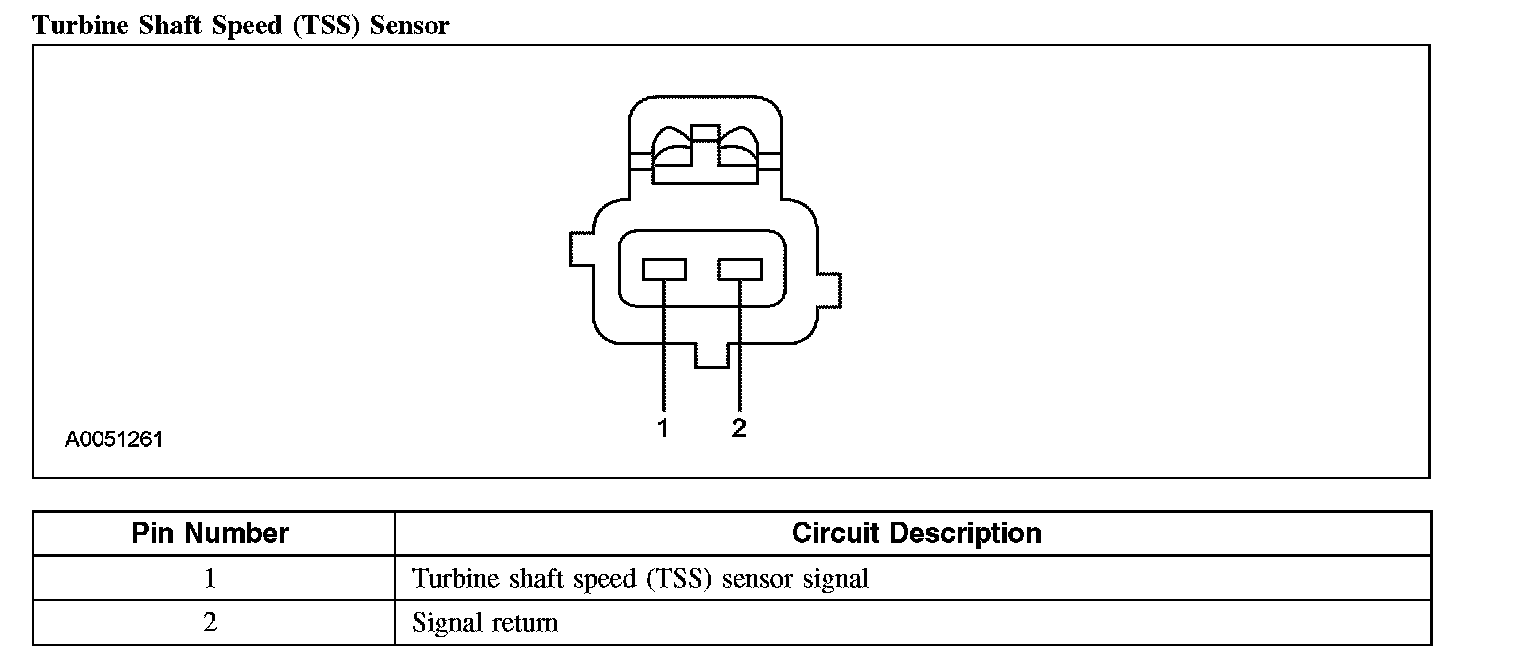

Turbine Shaft Speed (TSS) Sensor:

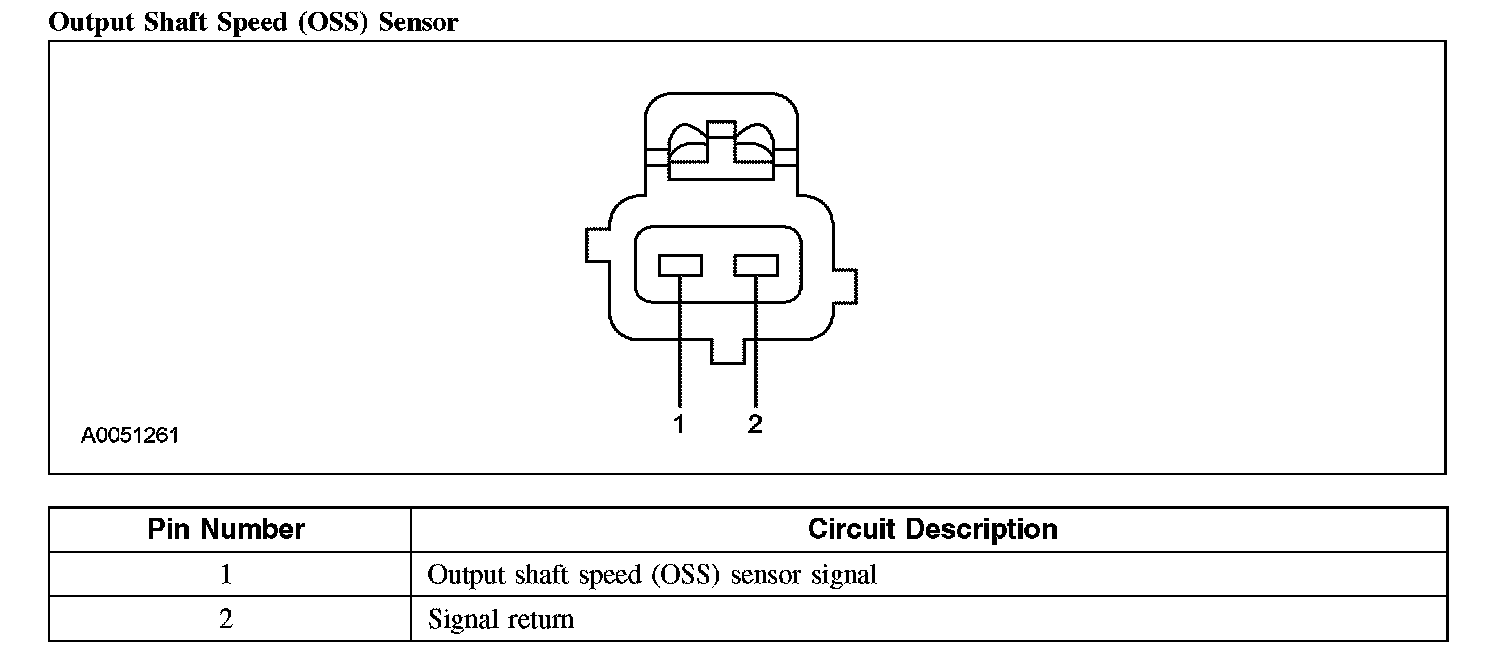

Output Shaft Speed (OSS) Sensor:

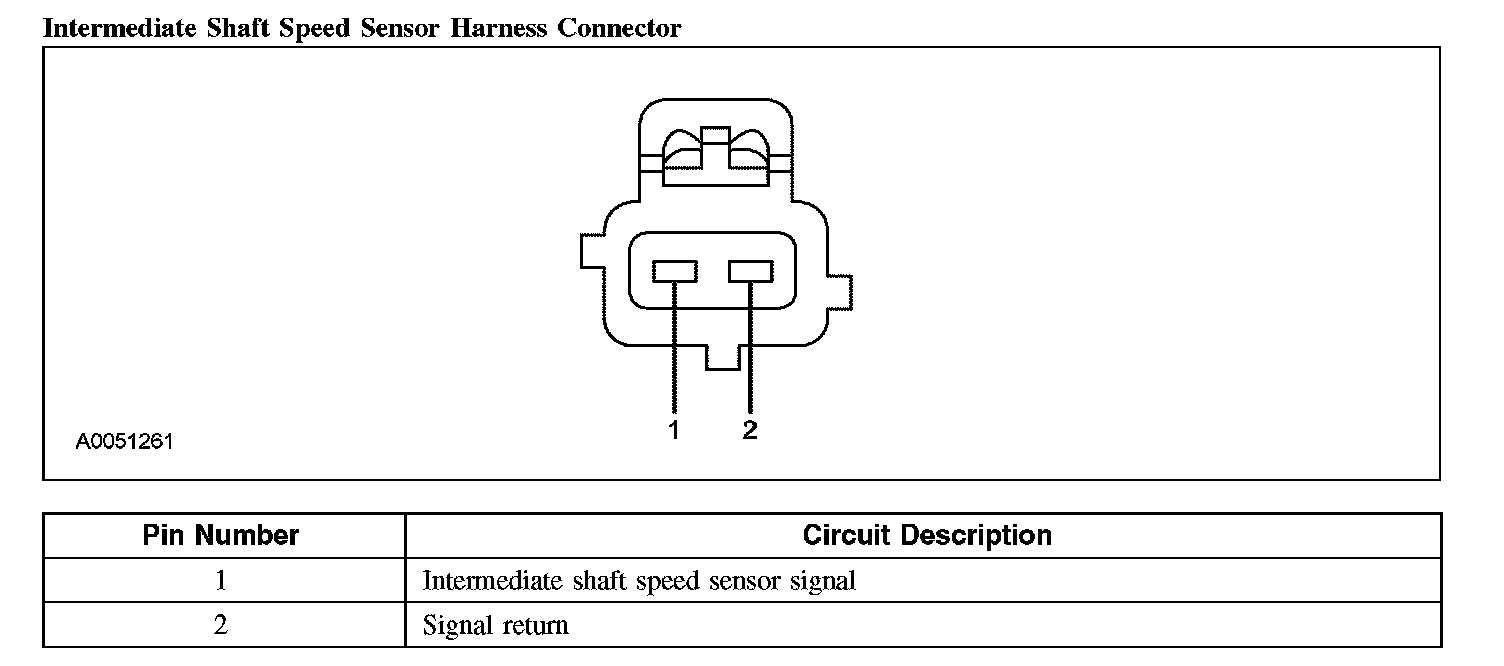

Intermediate Shaft Speed Sensor Harness Connector:
