Home >> Ford >> 2007 >> Mustang V8-5.4L SC VIN S >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Torque Converter Clutch Operation Concerns 240-242 >> 240, Does Not Apply

240, Does Not Apply

Torque Converter Operation Concerns: Does Not Apply

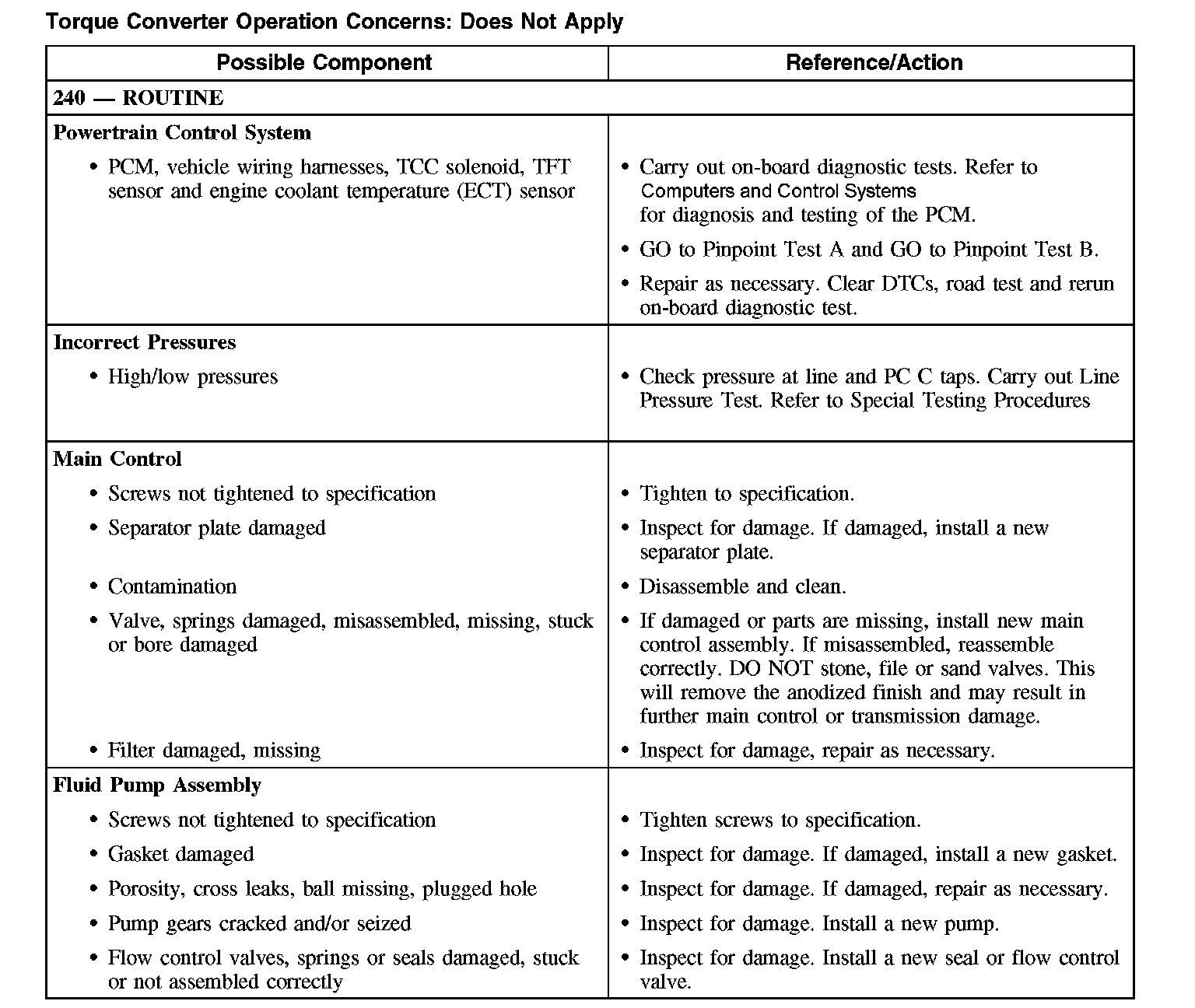

240 Torque Converter Operation Concerns: Does Not Apply (Part 1):

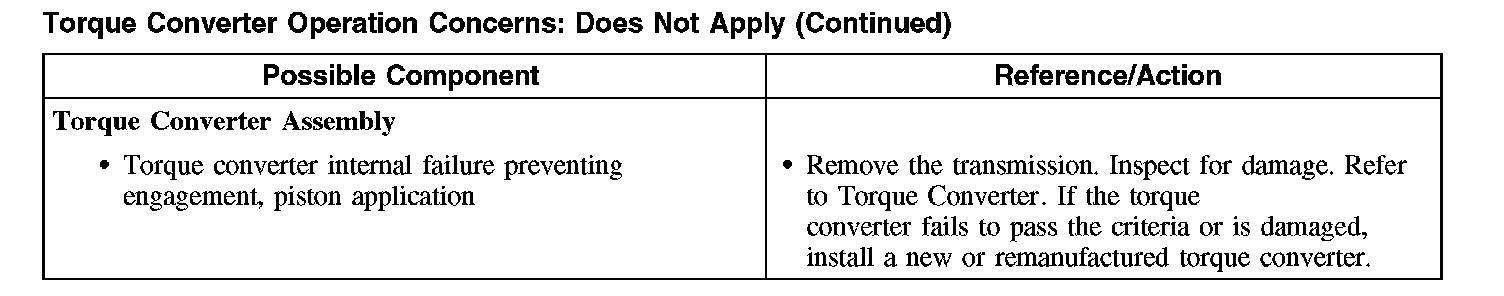

240 Torque Converter Operation Concerns: Does Not Apply (Part 2):
