Test D: Pressure Control (PC) Solenoids (PCA, PCB, PCC)
Test D: Pressure Control (PC) Solenoids (PCA, PCB, PCC)
PINPOINT TEST D: PRESSURE CONTROL (PC) SOLENOIDS (PCA, PCB, PCC)

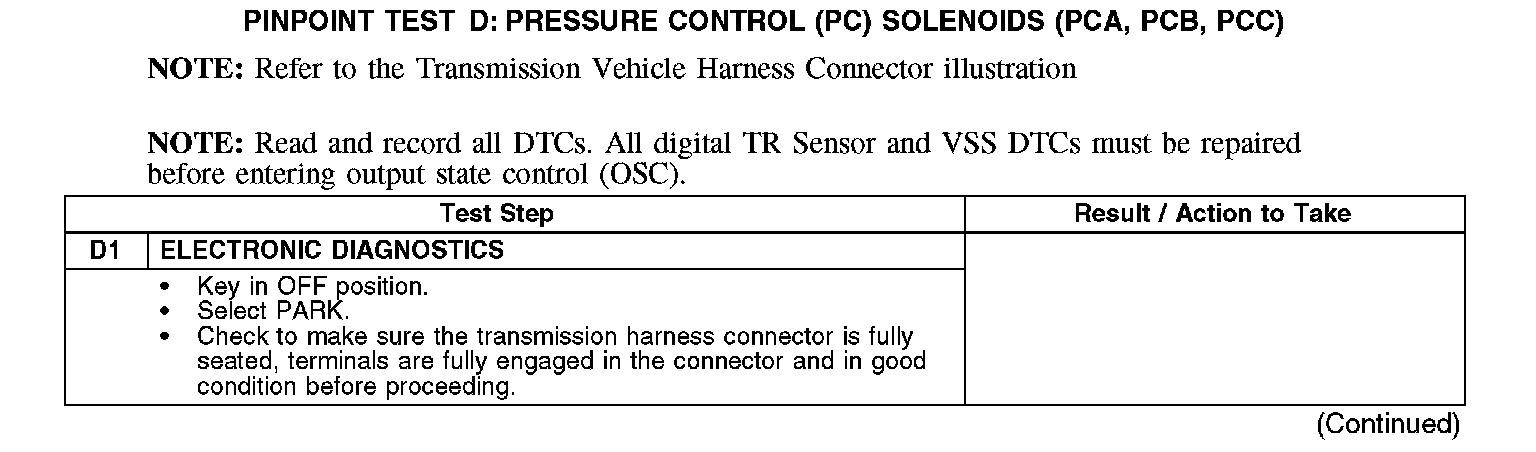

D1:

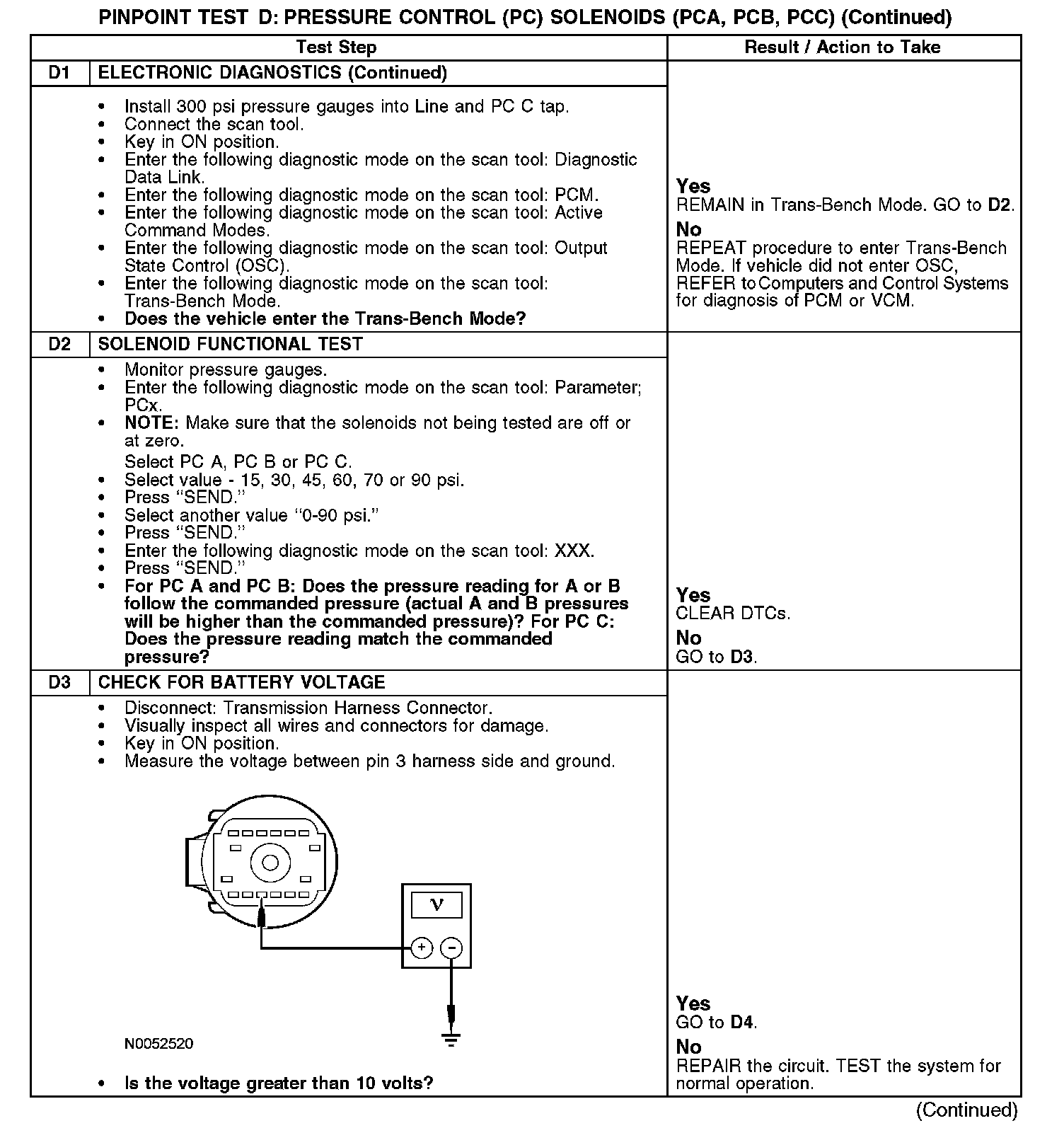

D1-D3:

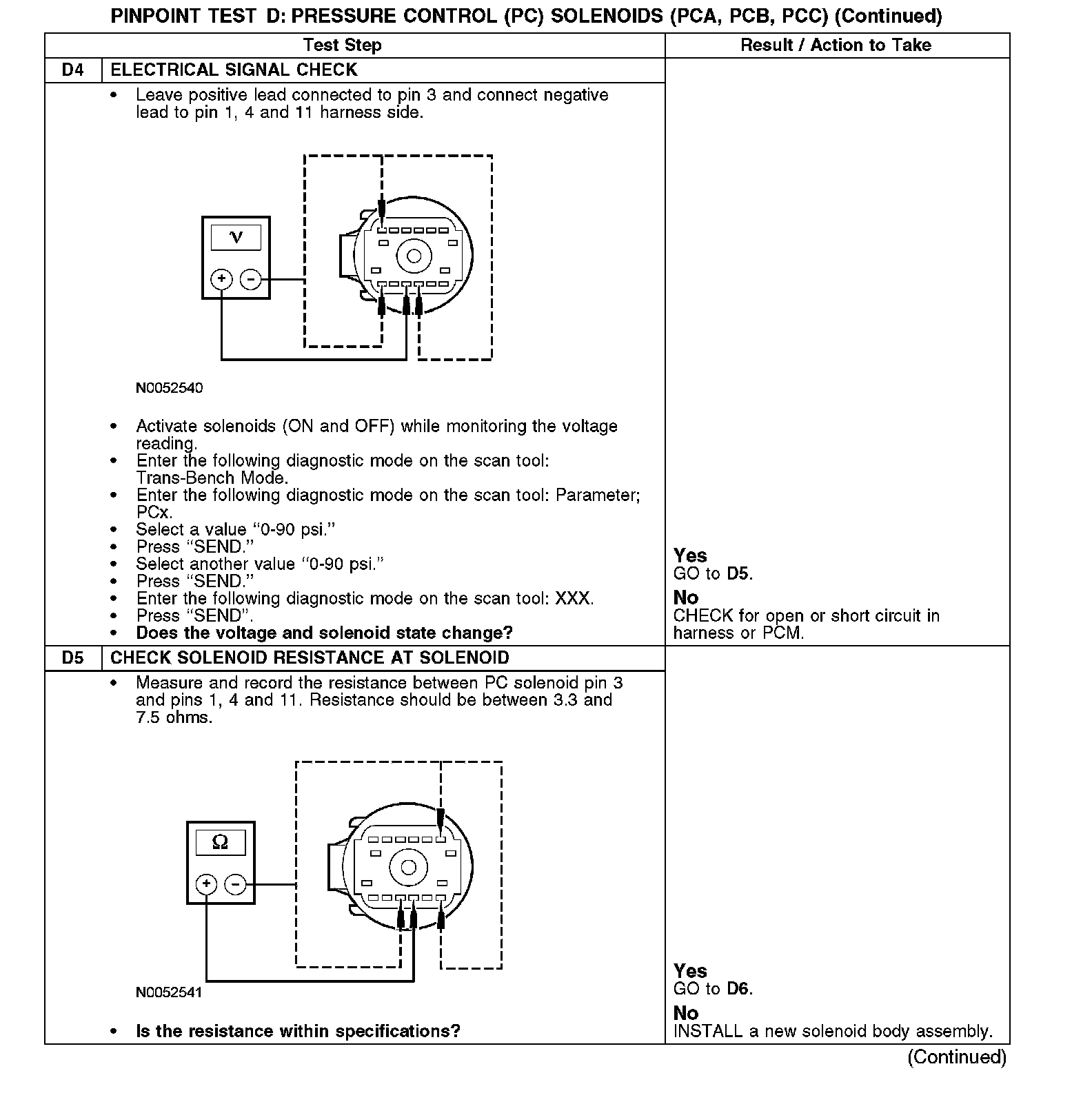

D4-D5:
D6:
