External Controls

Inspection and Verification
1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the chart:

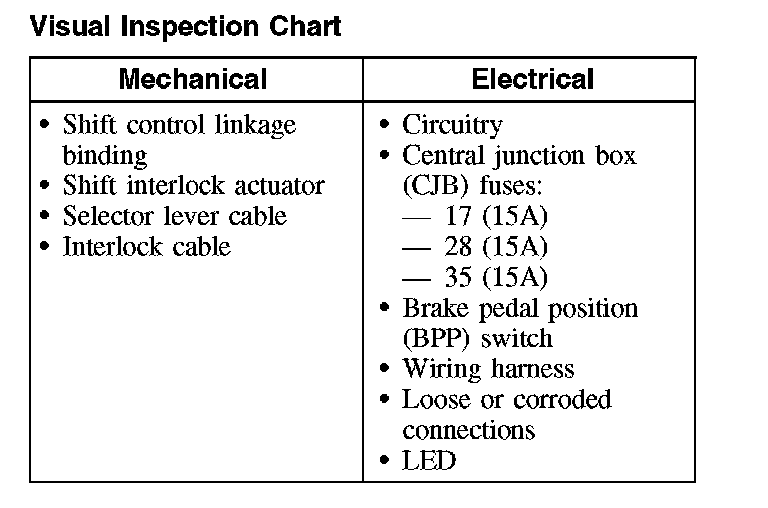

Visual Inspection Chart

Visual Inspection Chart:

3. If the concern is not visually evident, determine the symptom. GO to Symptom Chart.

Symptom Chart

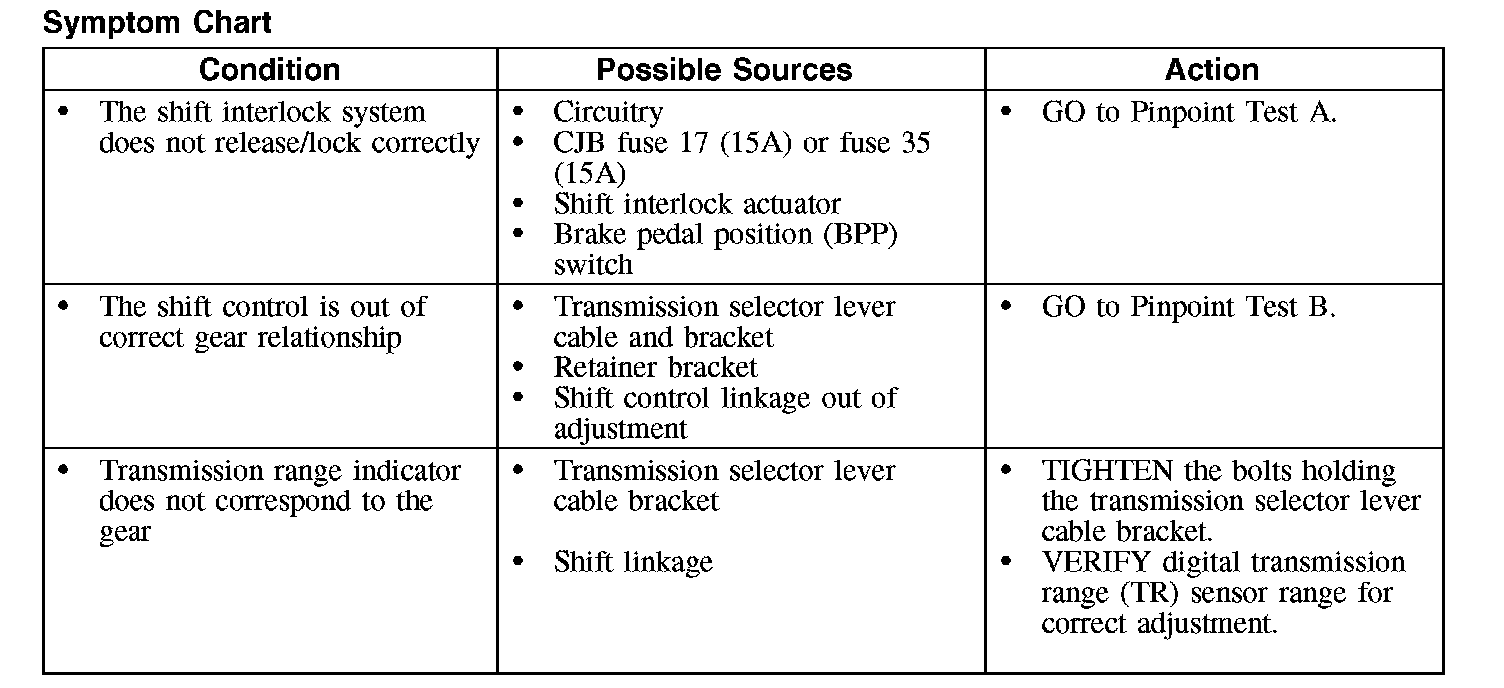

Symptom Chart (Part 1):

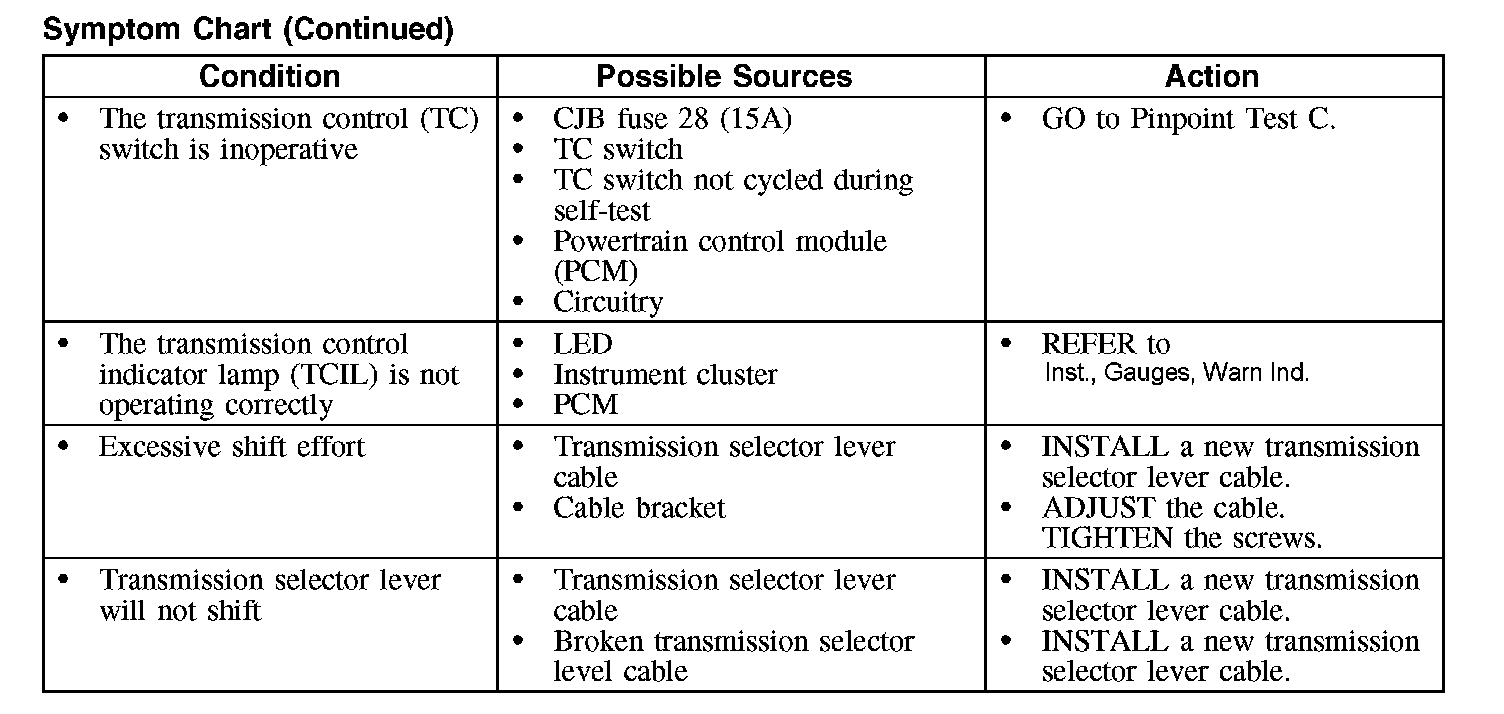

Symptom Chart (Part 2):
