Diagnostic Trouble Code (DTC) Charts

Diagnostic Trouble Code Chart

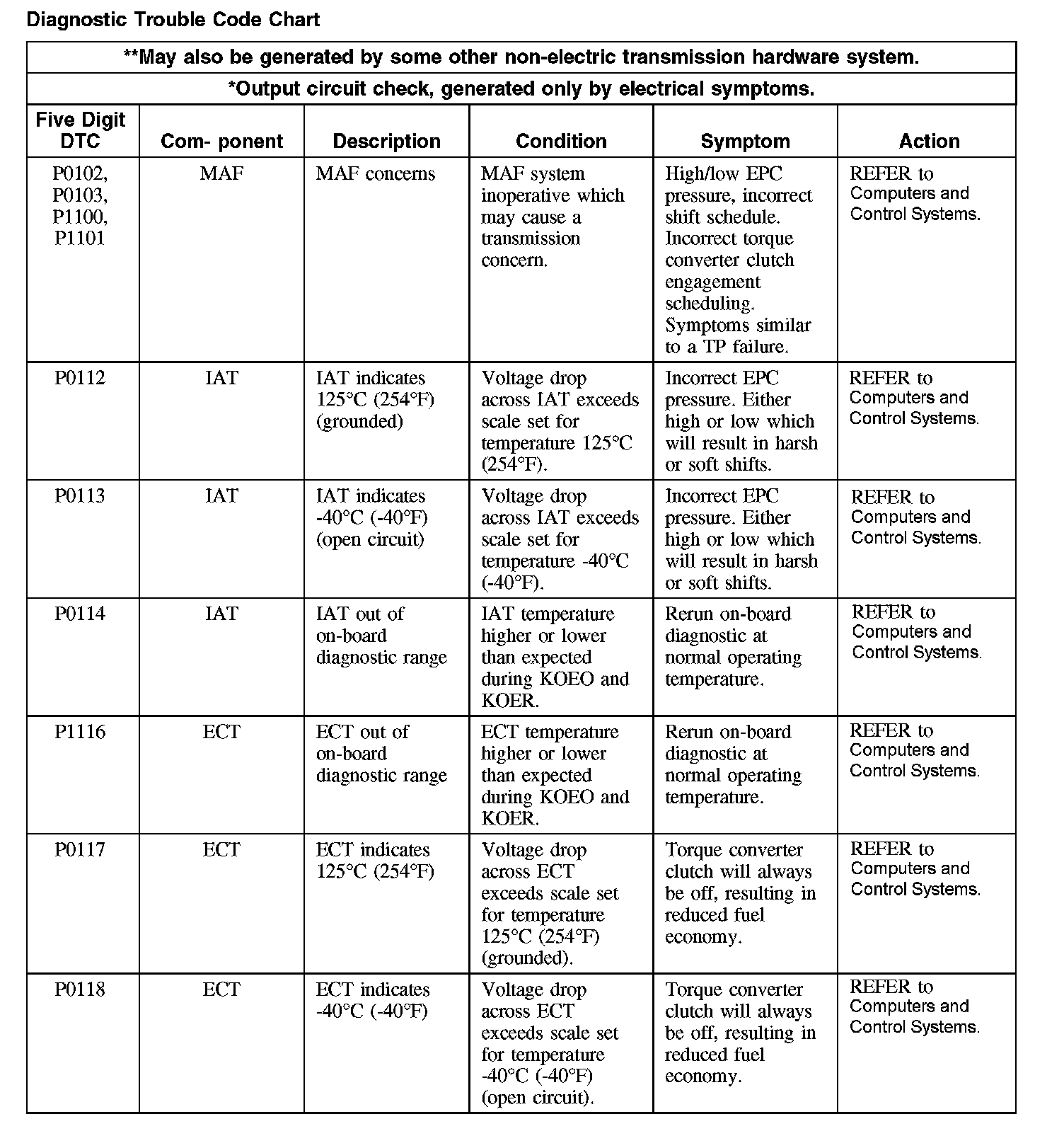

P0102-P1116:

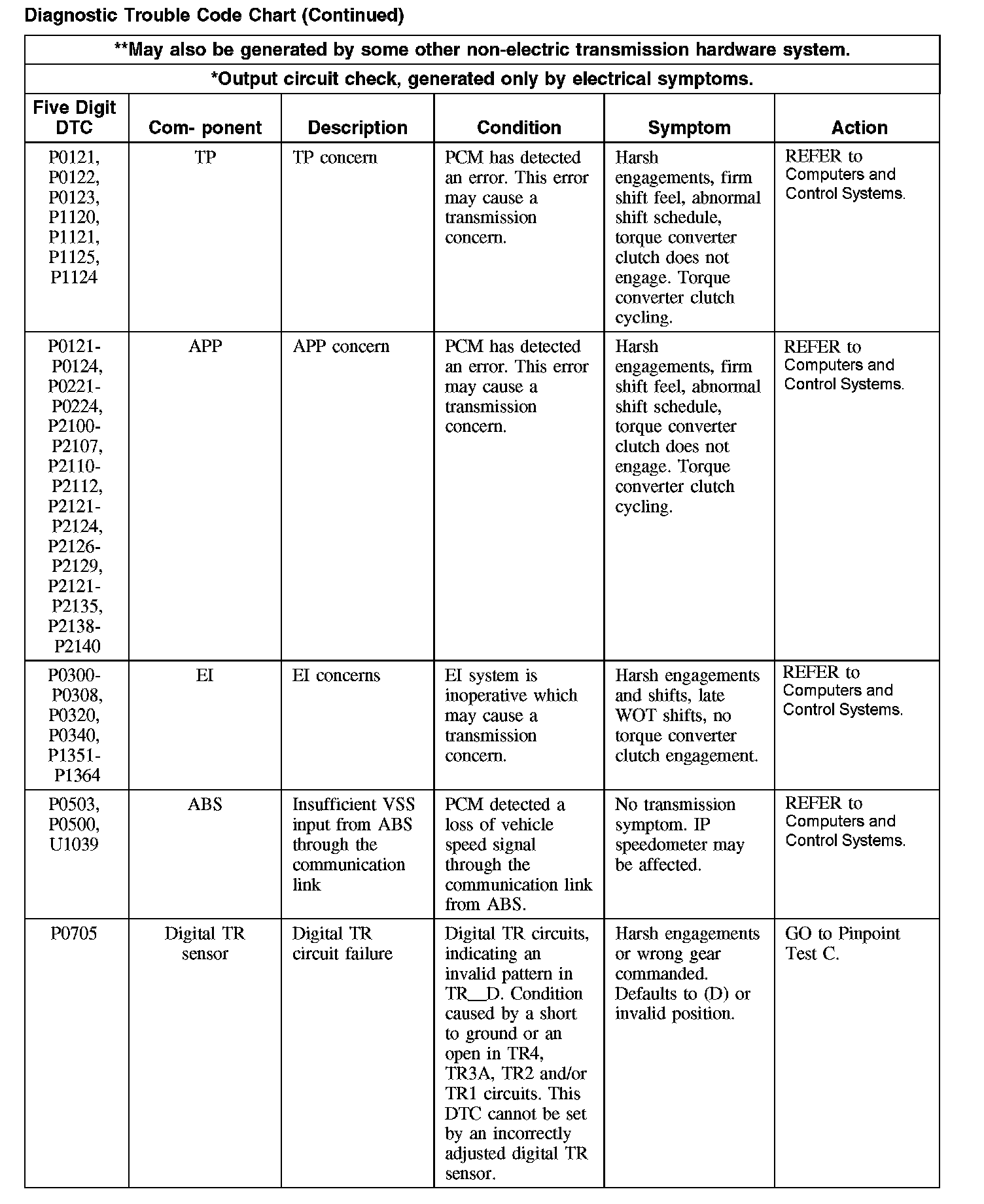

P0121-P2140 / U1039:

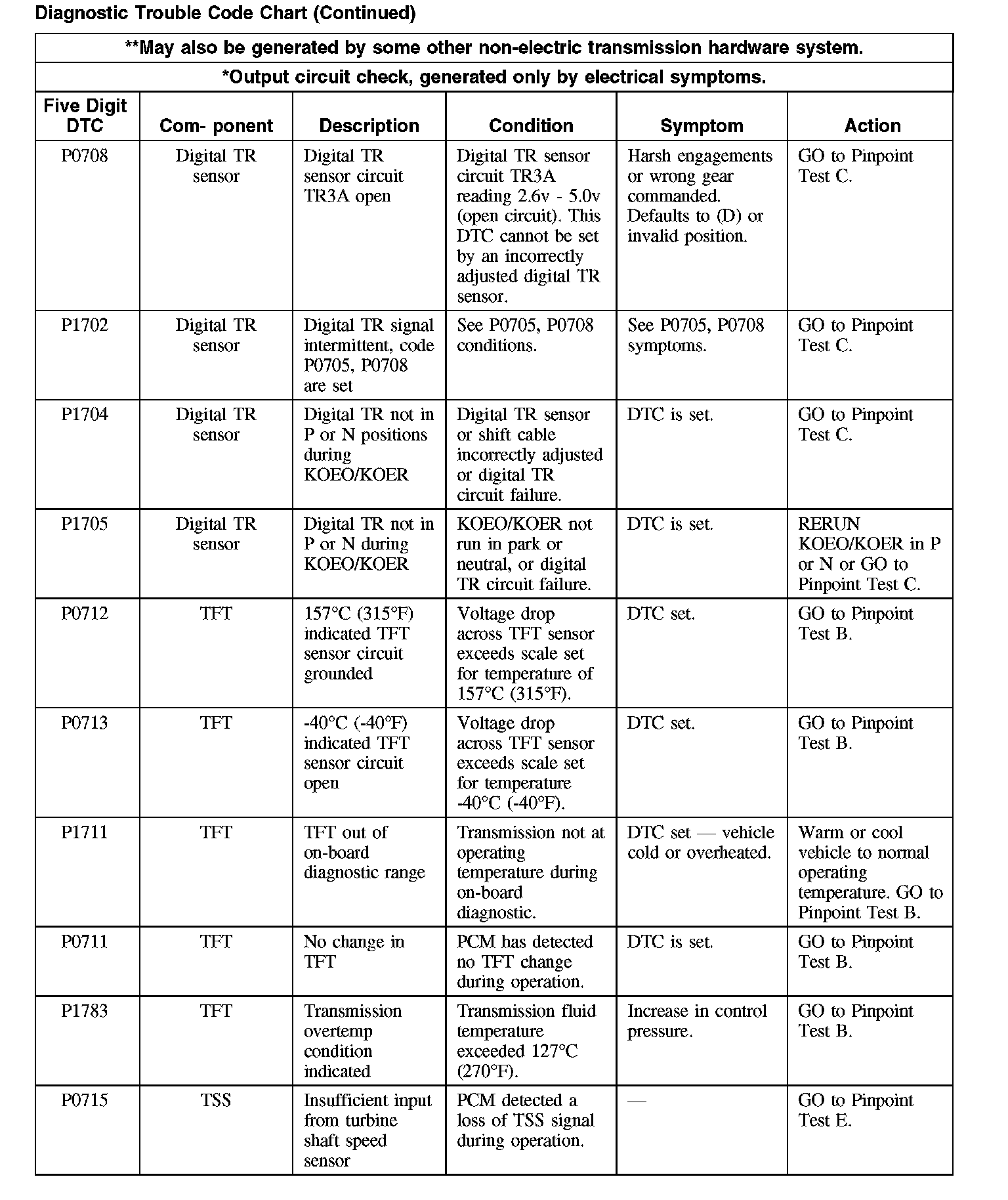

P0708-P1783:




P0717-P0732:

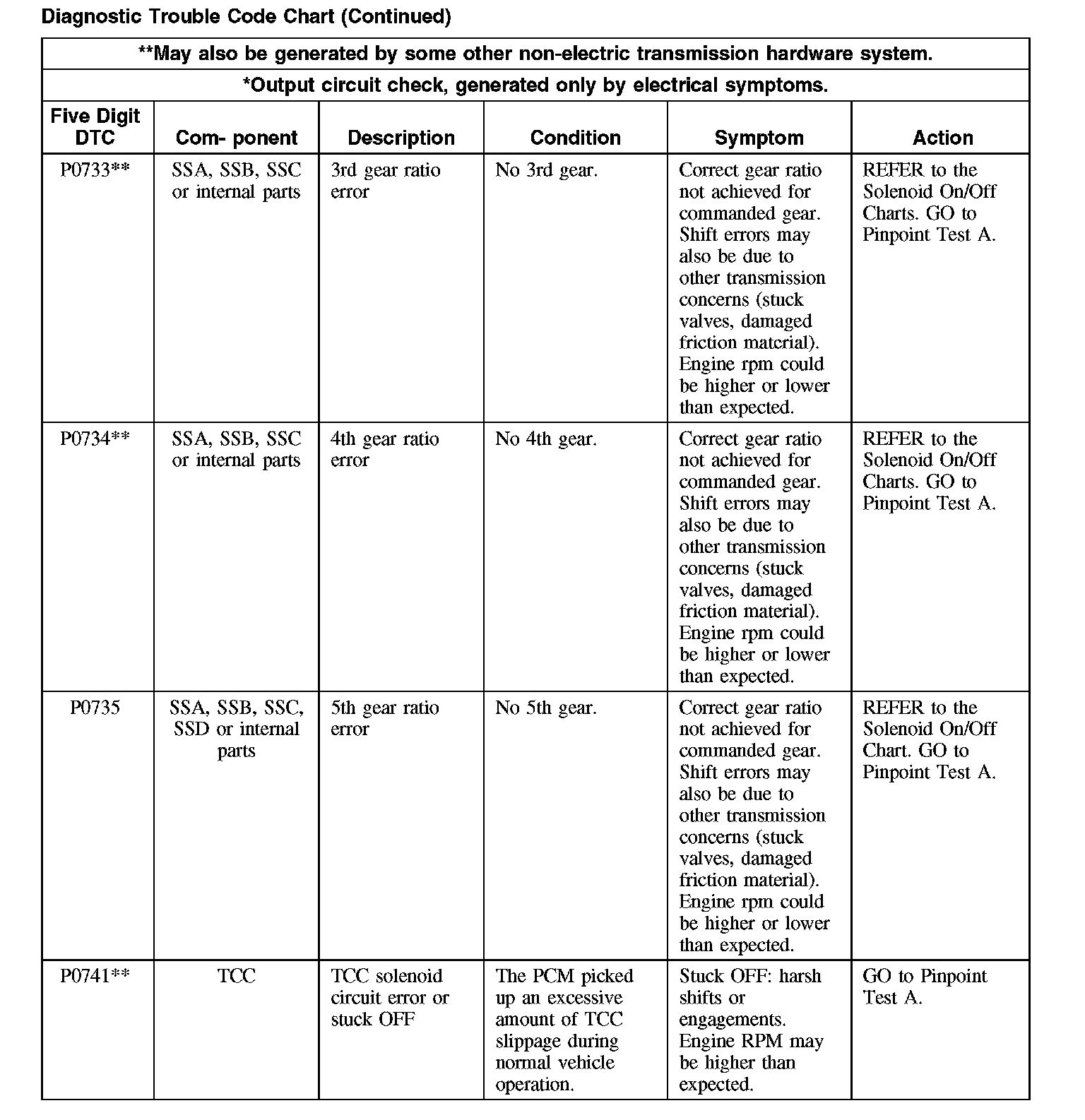

P0733-P0741:

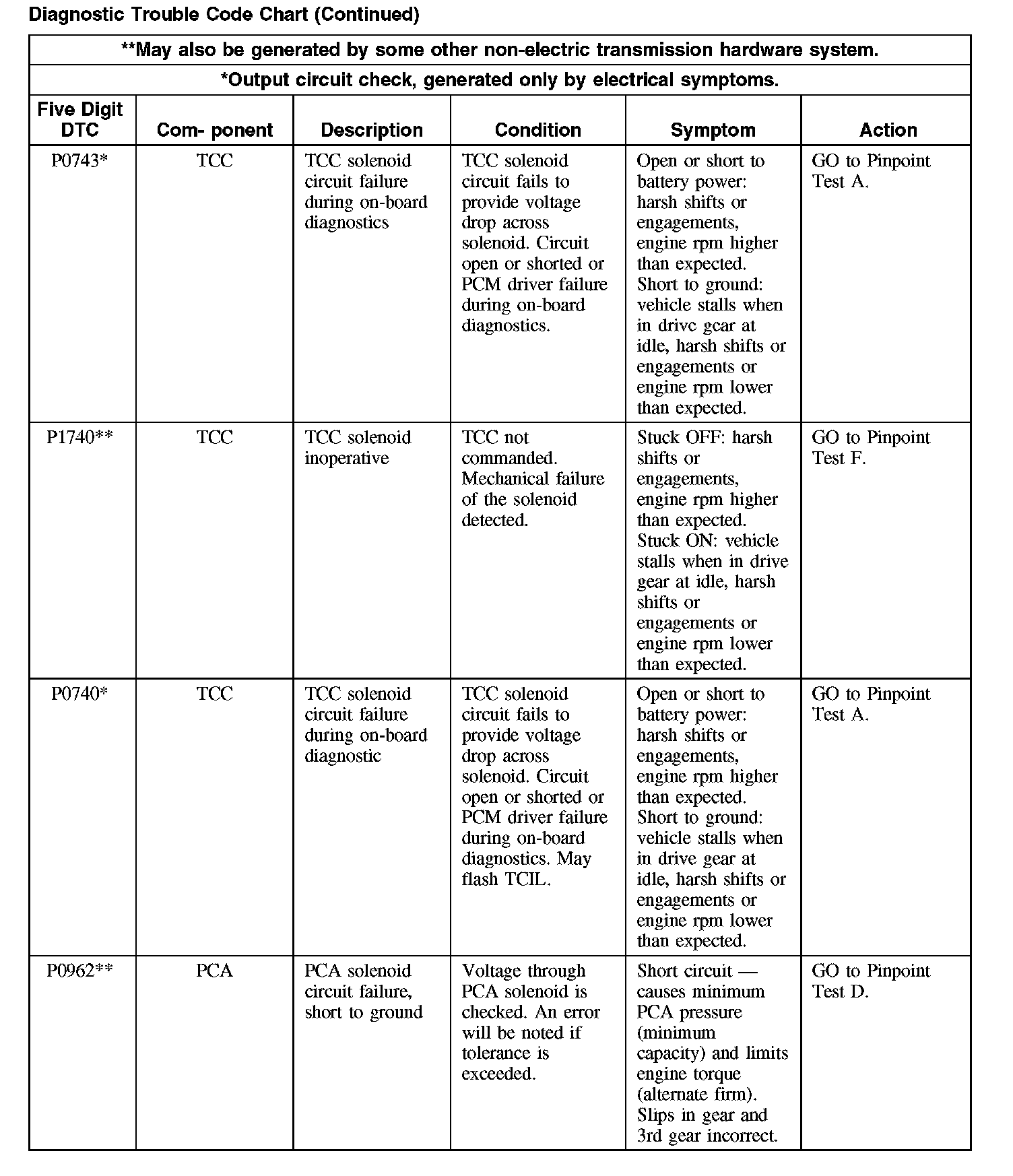

P0740-P1740:

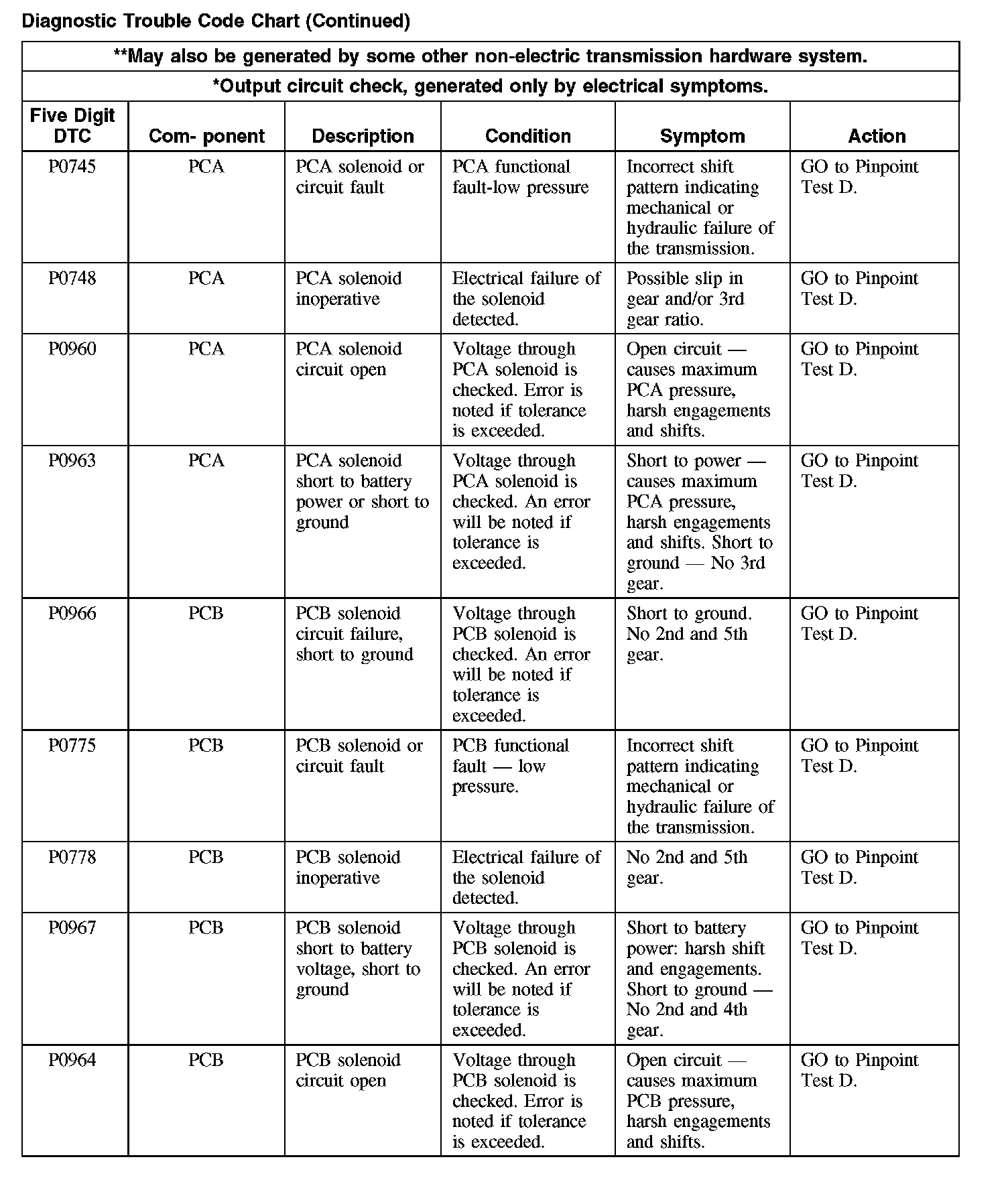

P0745-P0967:

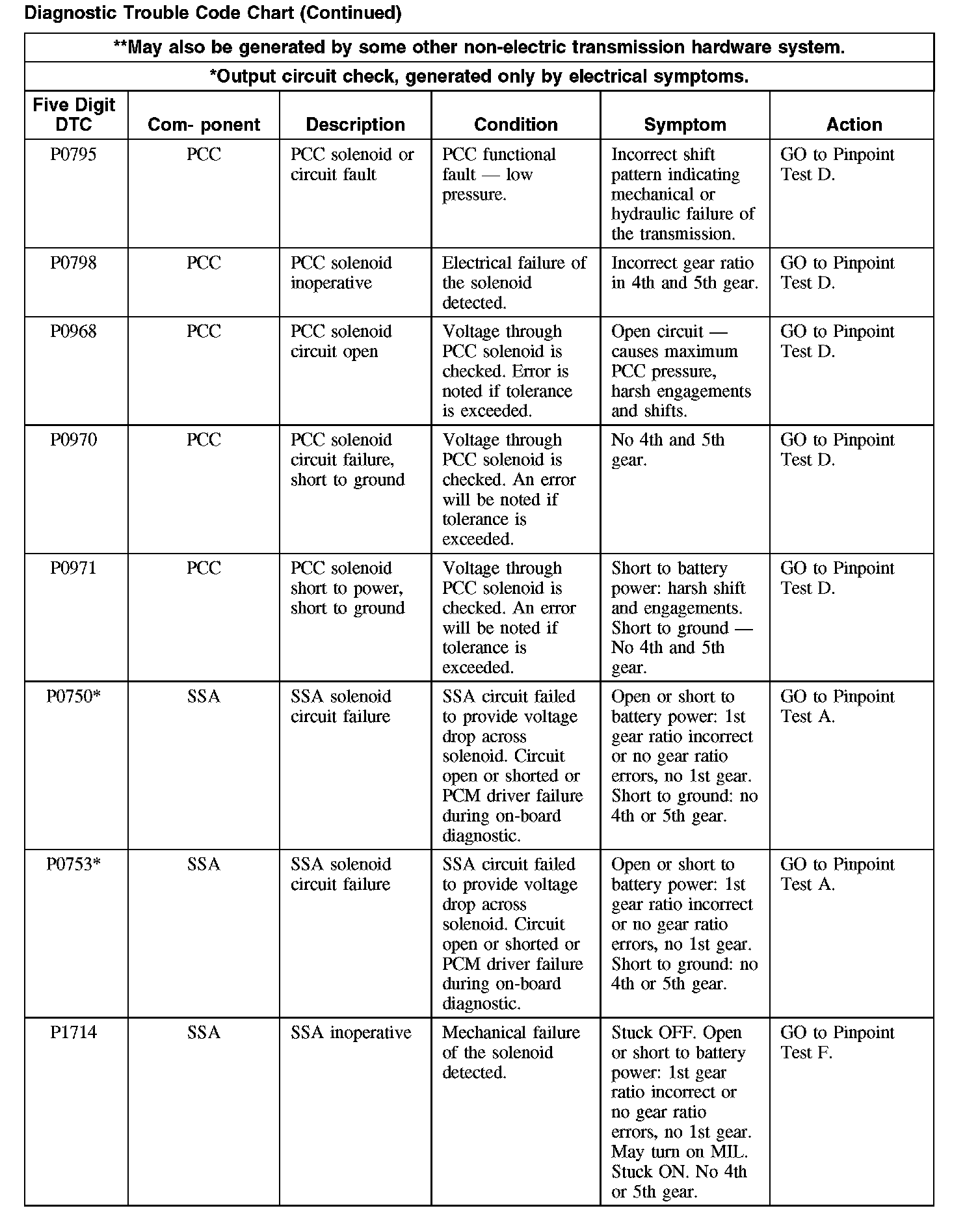

P0750-P1714:

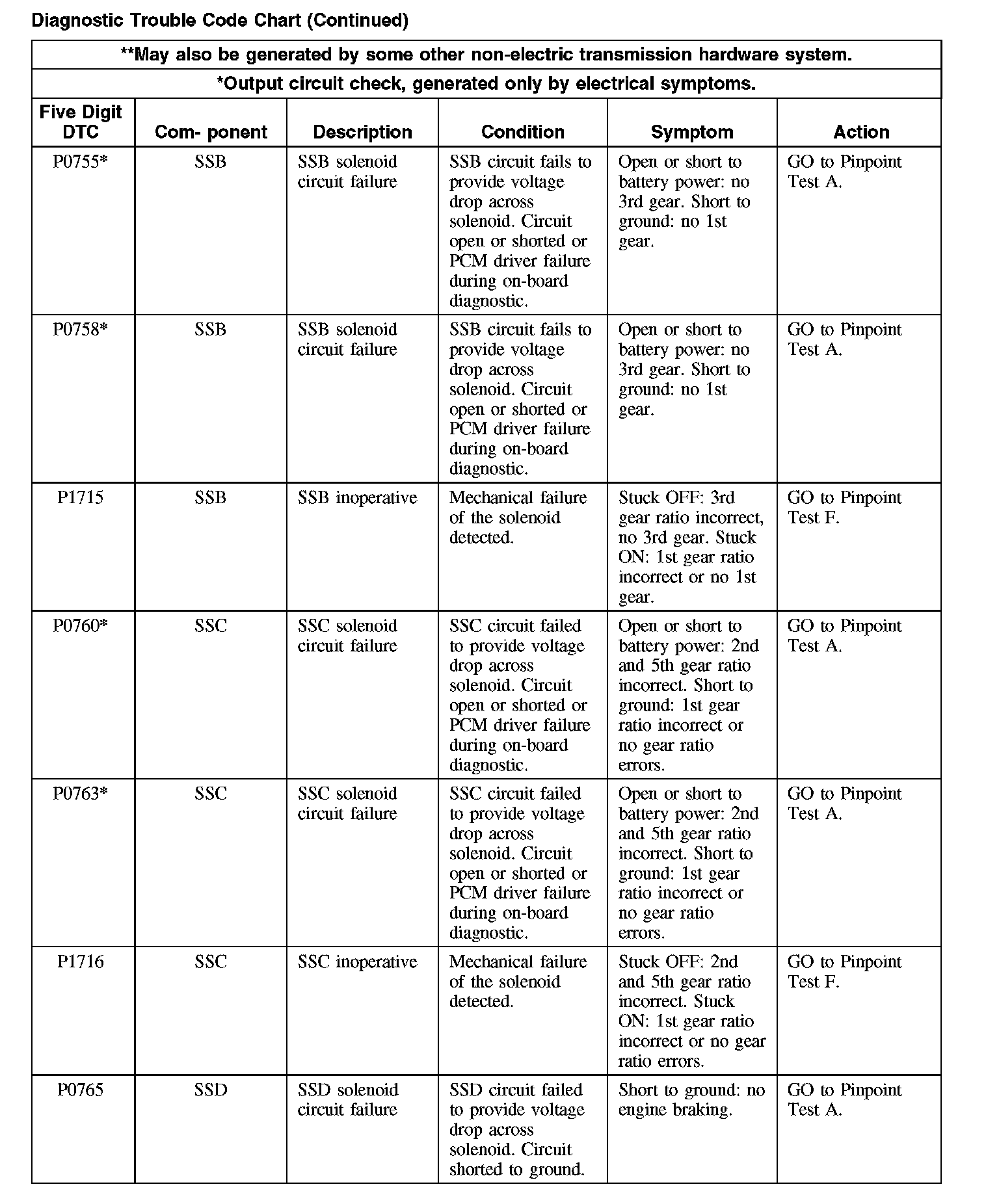

P0755-P1716:

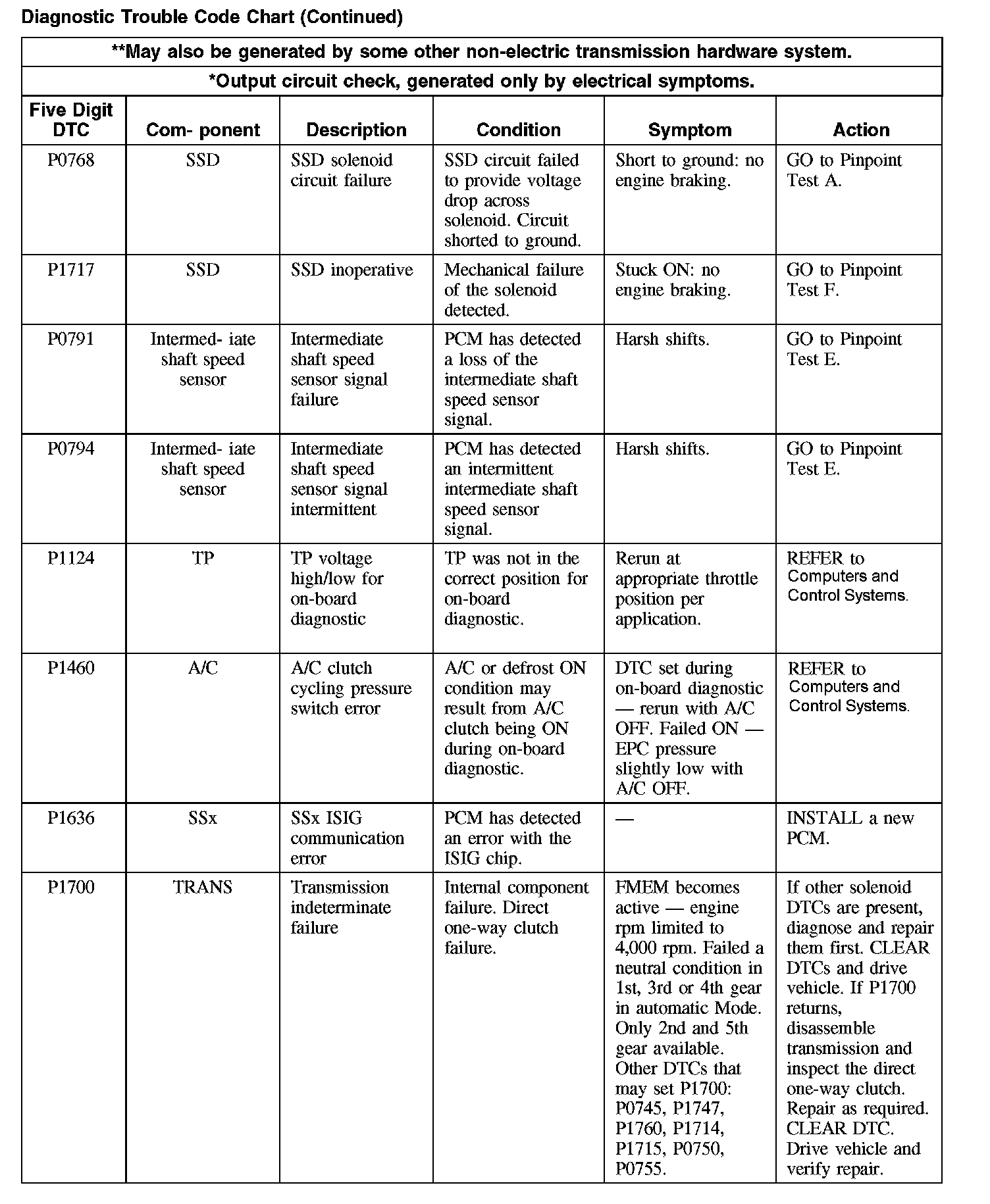

P0768-P1717:

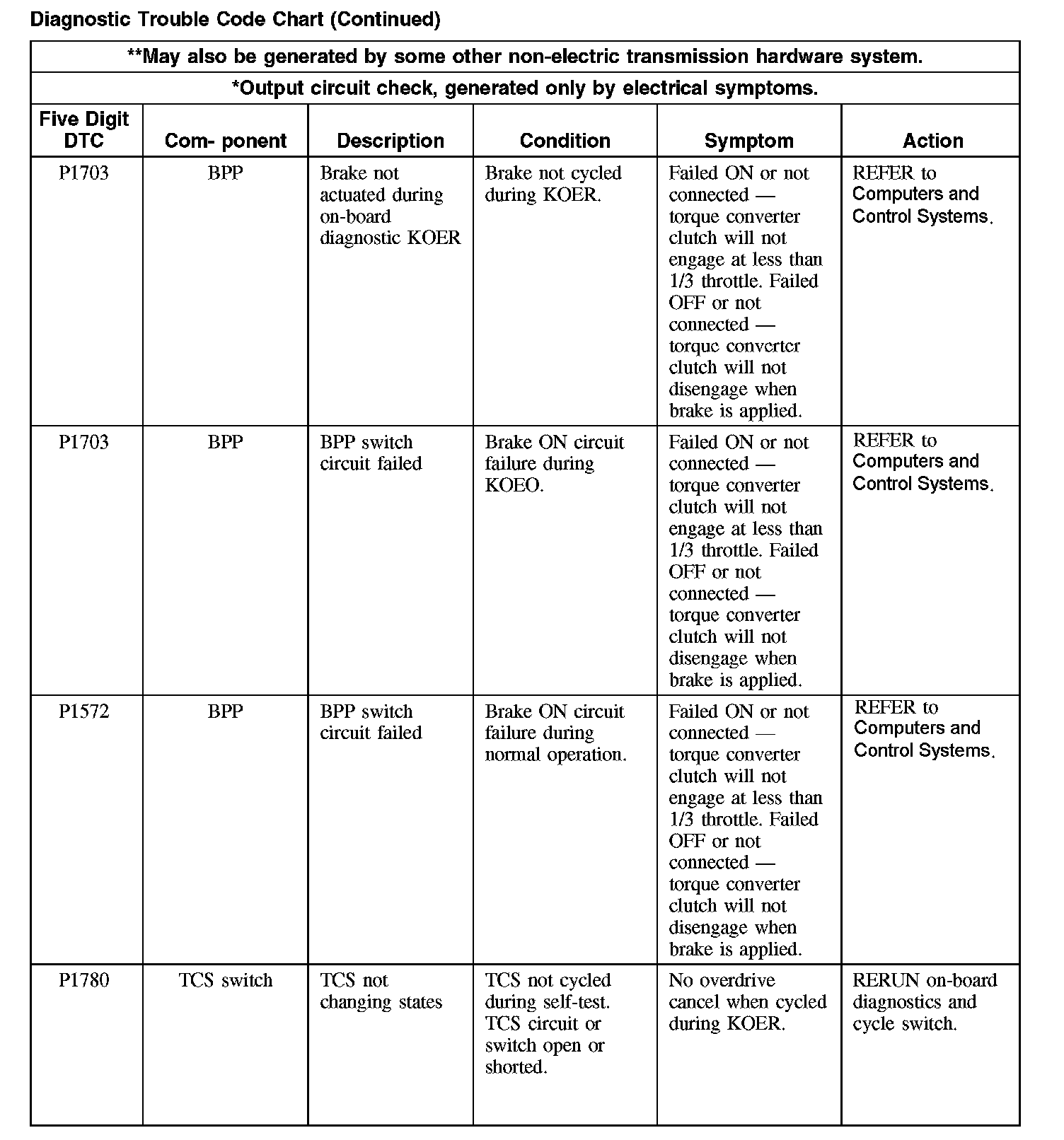

P1572-P1780:
