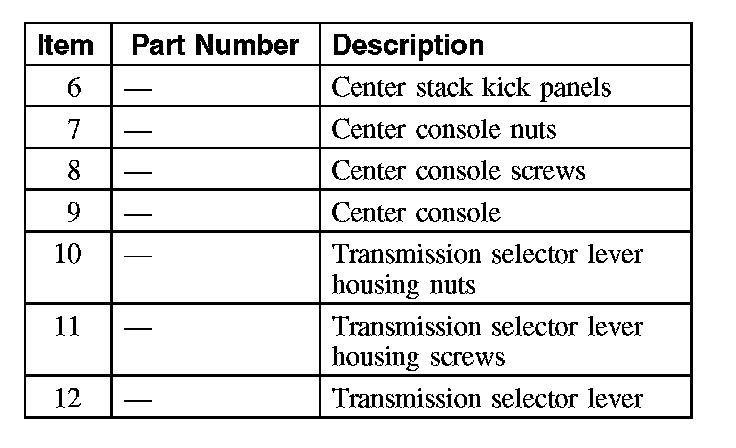

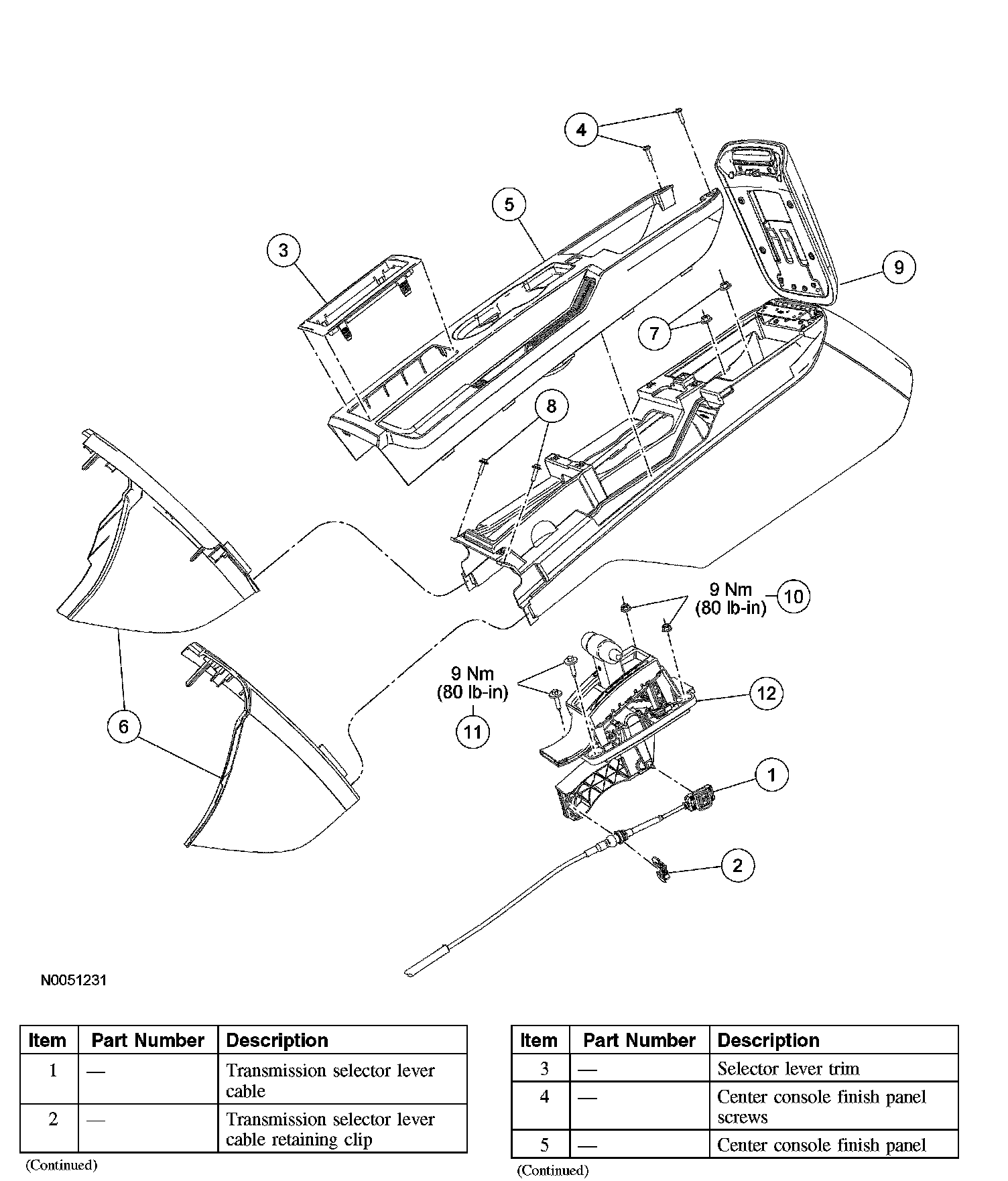

Removal








1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

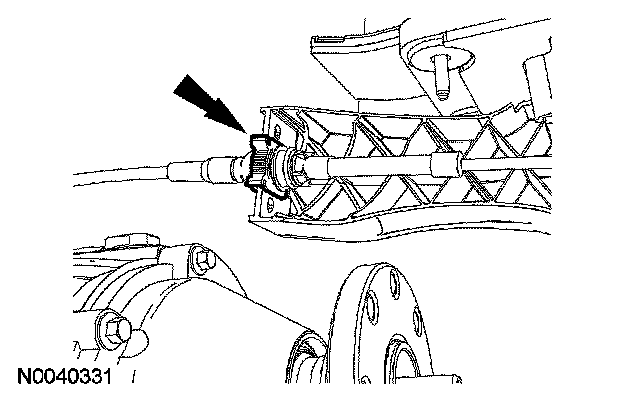

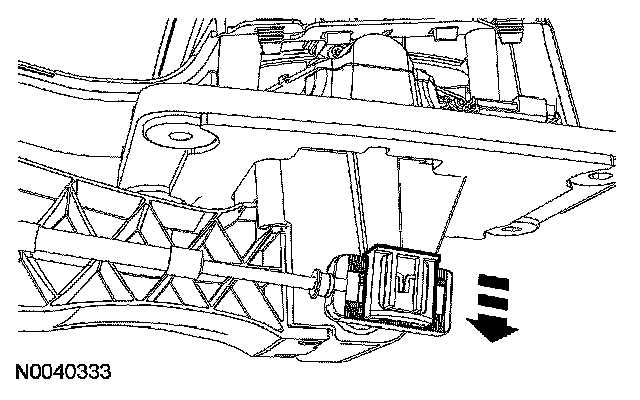

2. Remove the selector lever cable from the selector lever.





3. Remove the selector lever cable from the bracket and discard the clip.

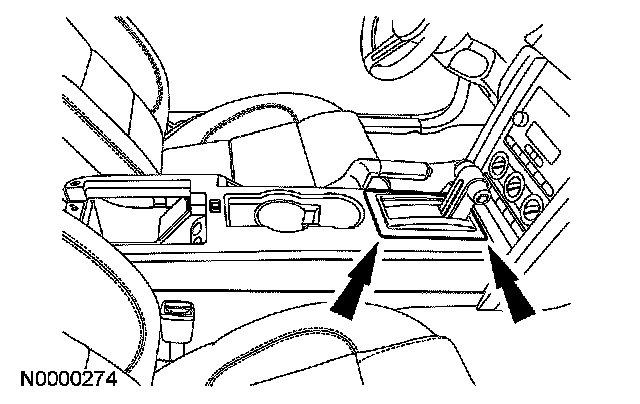

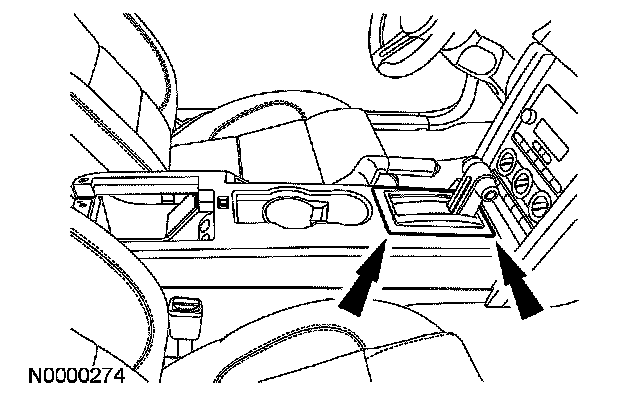

4. Remove the center console selector lever trim.





5. Remove the 2 screws and the center console top finish panel.





6. NOTE: Passenger side center console kick panel shown, driver side similar.

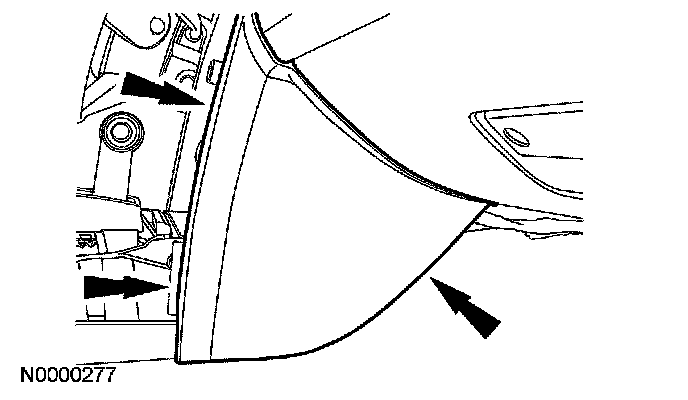

Remove the driver and passenger center console kick panels.

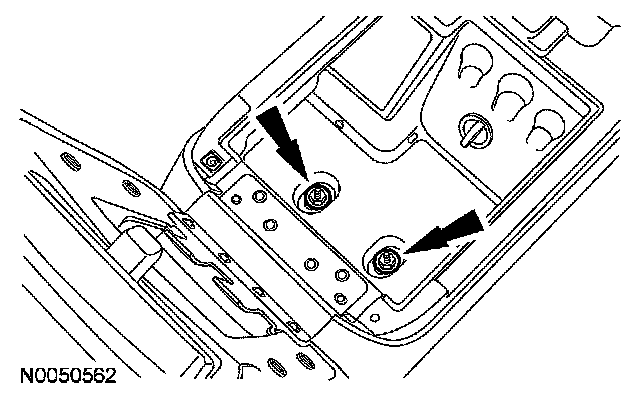

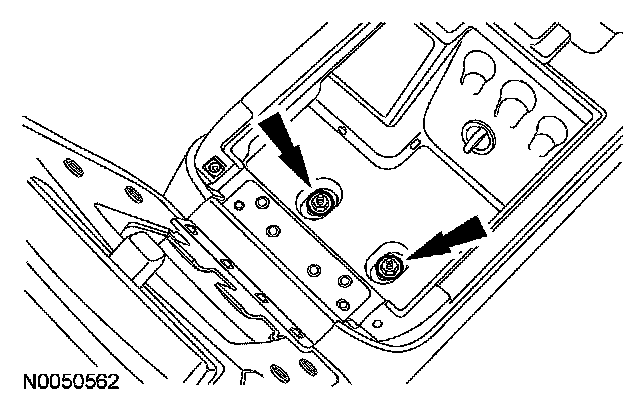

7. Remove the 2 screws in the bottom of the console bin.

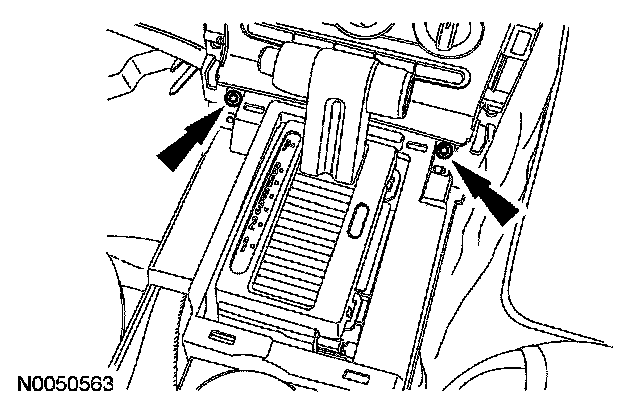

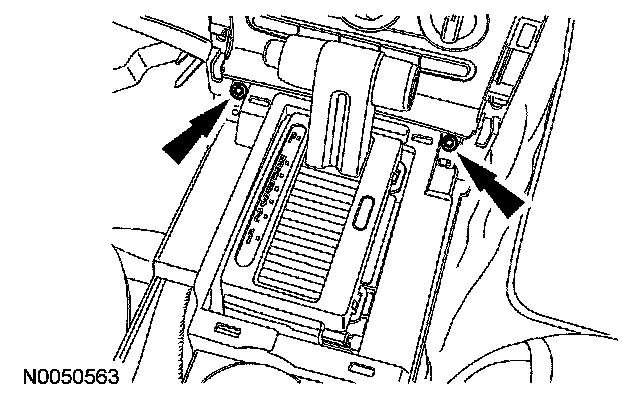

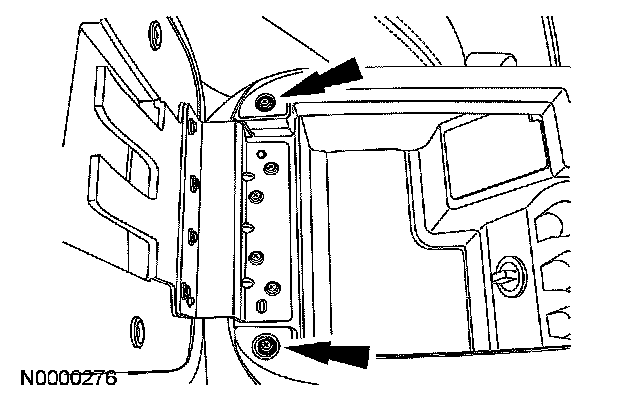

8. Remove the 2 screws from the front of the console.

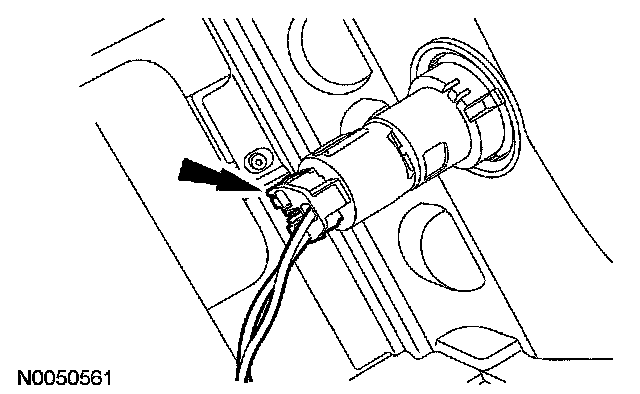

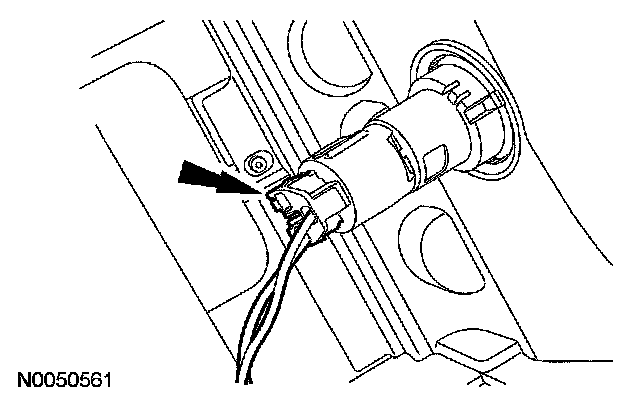

9. Lift up the console, disconnect the power point electrical connector and remove the console.

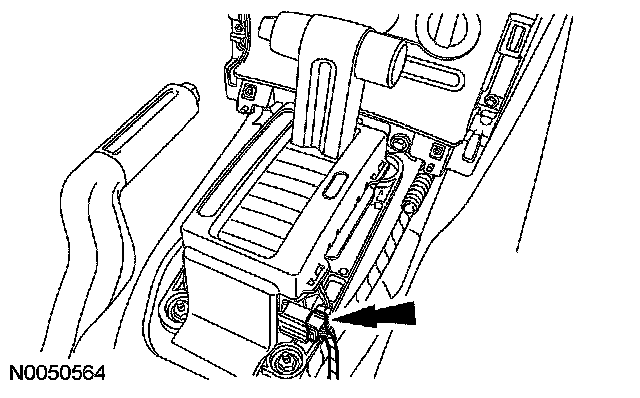

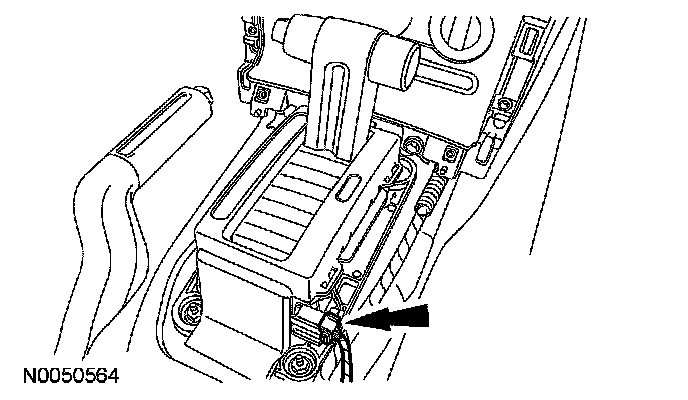

10. Disconnect the selector lever electrical connector.

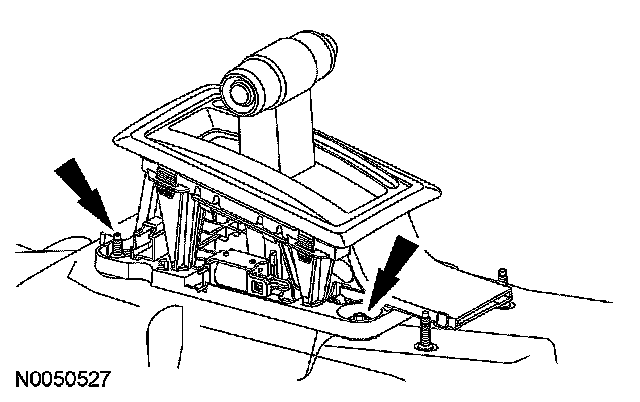

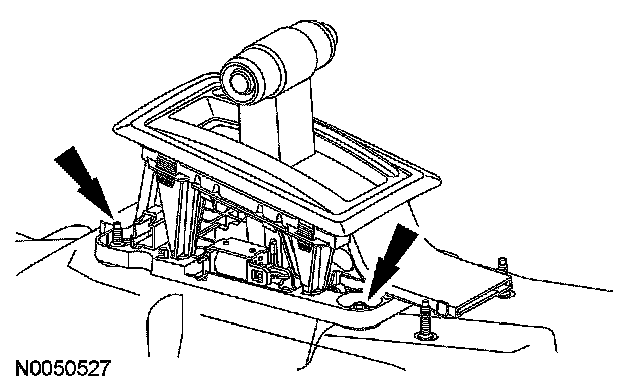

11. Remove the 2 nuts and the 2 screws and carefully lift the transmission selector lever assembly from the vehicle.





Installation
1. Position the transmission selector lever assembly in the vehicle and install the 2 nuts and the 2 screws.
^ Tighten to 9 Nm (80 inch lbs).





2. Connect the selector lever electrical connector.





3. Connect the power point electrical connector and install the console.





4. Install the 2 screws into the front of the console.





5. Install the 2 screws into the bottom of the console bin.

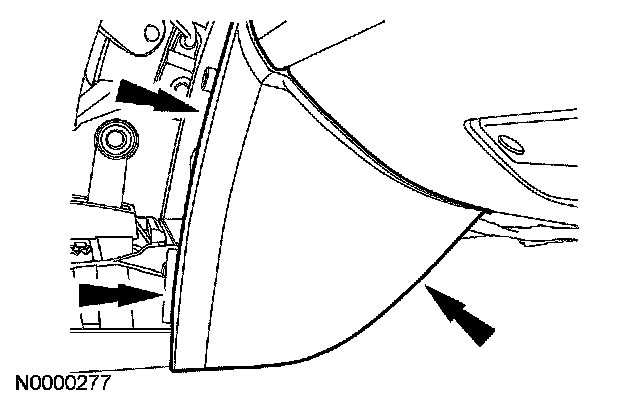

6. Install the driver and passenger side center console kick panels.





7. Install the center console top finish panel and the 2 screws.





8. Install the center console selector lever trim.





9. NOTE: It is necessary to install a new plastic clip prior to installation.

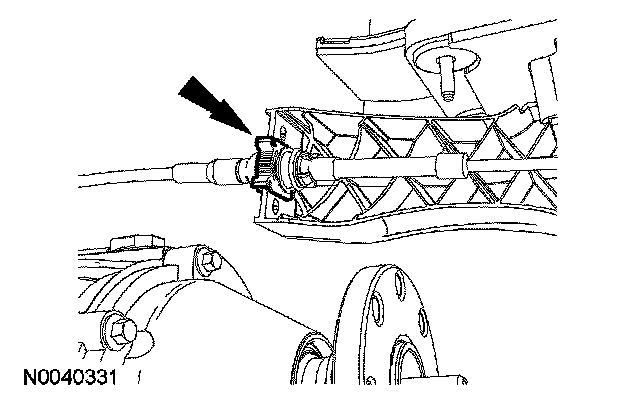

Install the selector lever cable into the bracket.

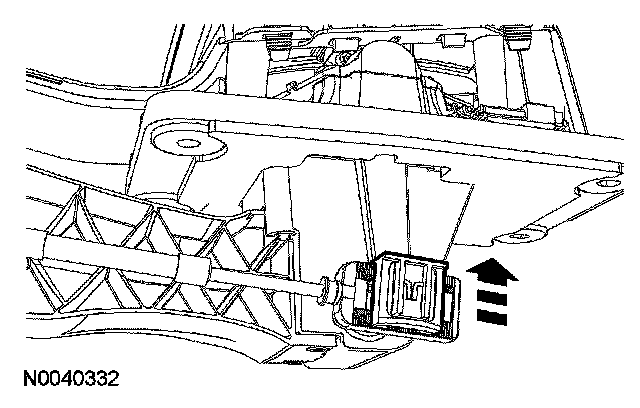

10. Install the selector lever cable onto the selector lever and lock the selector lever cable adjustment lock.





11. Verify the selector lever cable is adjusted correctly.
