Shift Cable: Service and Repair

Selector Lever Cable and Bracket

Removal





1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

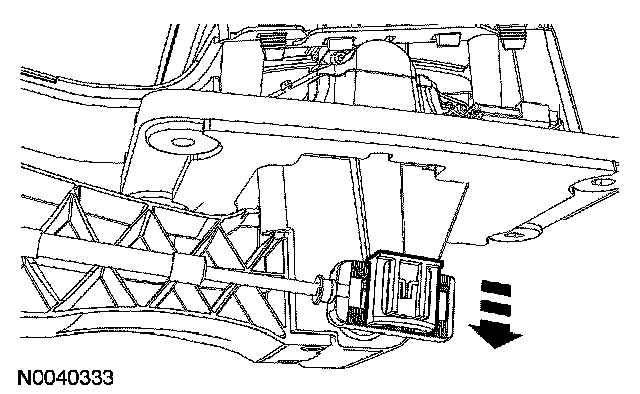

2. Remove the selector lever cable from the selector lever.

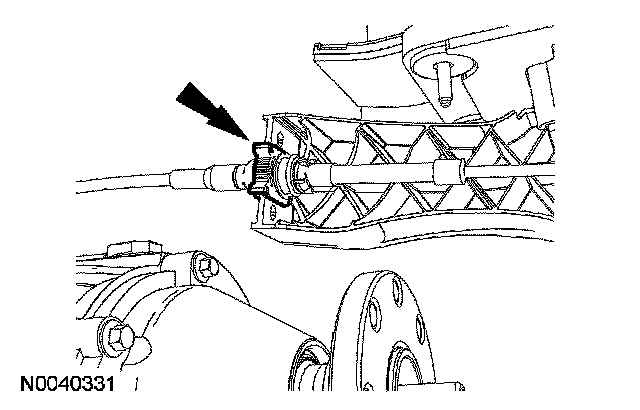

3. Remove the selector lever cable from the bracket and discard the clip.





4. Remove the selector lever cable from the transmission manual lever.

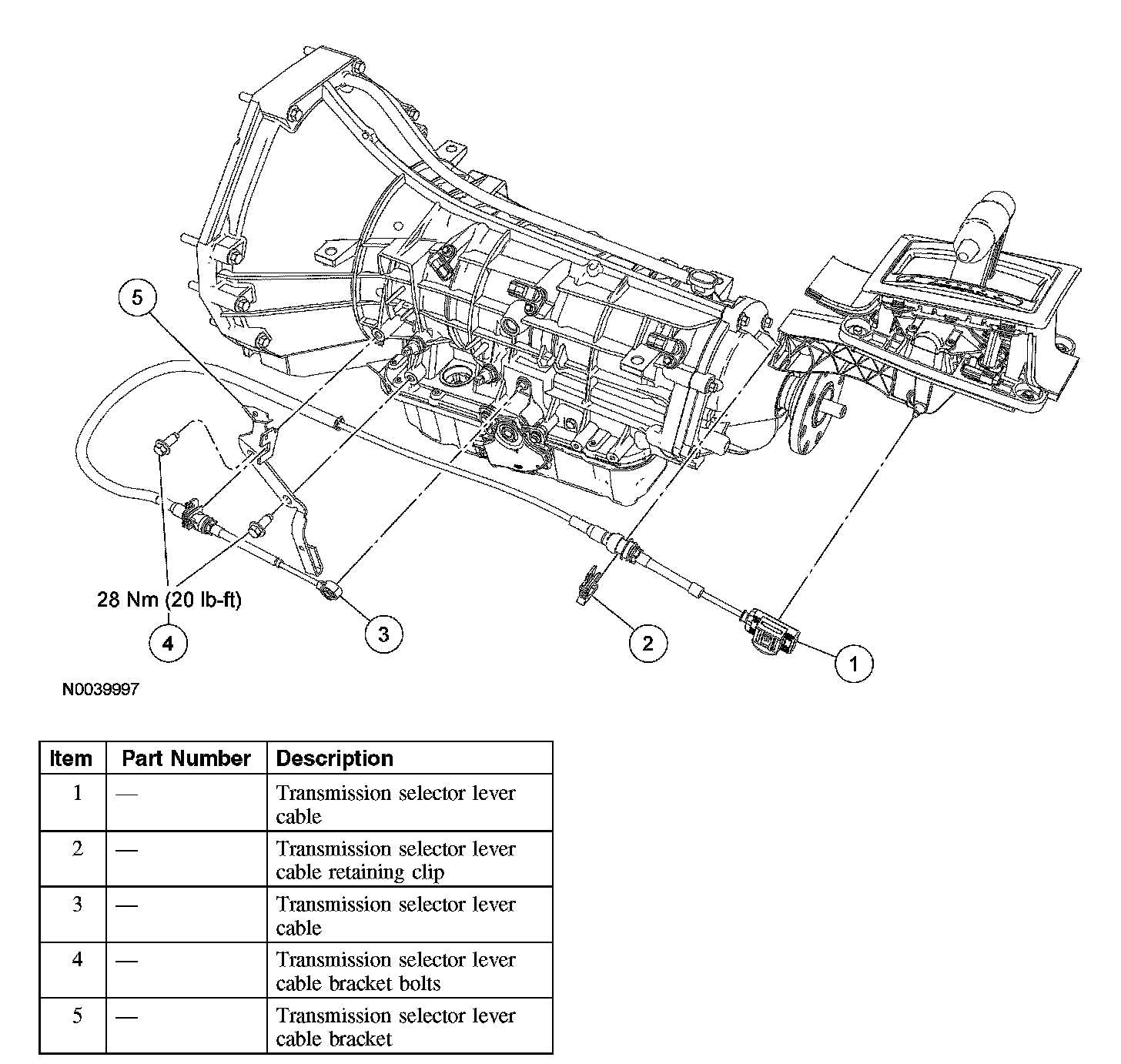

5. Remove the 2 transmission selector lever cable bracket bolts from the transmission and remove the bracket.





Installation
1. Install the selector lever cable bracket and install the 2 bolts.
^ Tighten to 28 Nm (20 ft. lbs).





2. Install the selector lever cable eyelet onto the transmission manual lever.





3. NOTE: It is necessary to install a new plastic clip prior to installation.

Install the selector lever cable into the selector lever cable bracket.

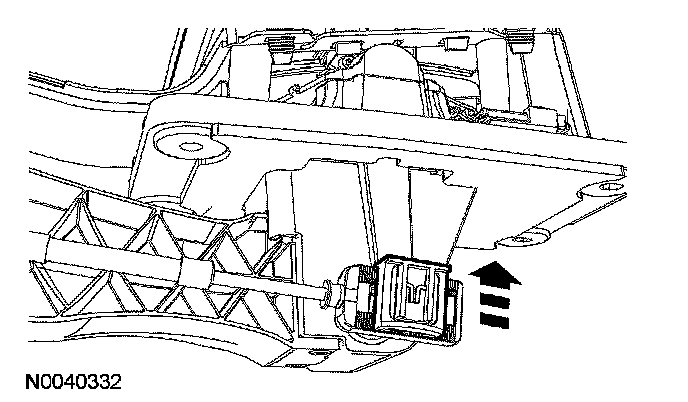

4. Install the selector lever cable onto the selector lever and lock the selector lever cable adjustment lock.





5. Verify the selector lever cable is adjusted correctly.
