Selector Lever Cable Adjustment
Selector Lever Cable Adjustment1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Place the transmission range selector lever in the D position.

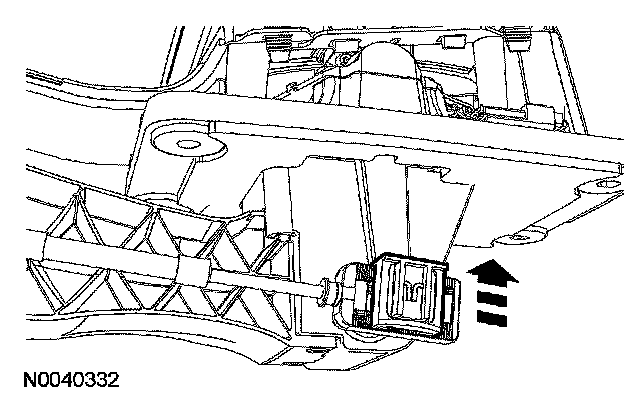

3. Lift the lock upward on the transmission selector cable lock and remove the cable from the selector lever.
4. Place the transmission manual control lever in the D position by rotating the manual lever clockwise to the extent of travel, then rotate counterclockwise 3 detents.

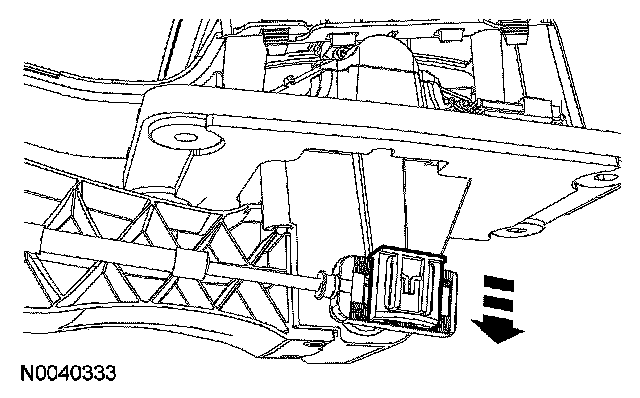

5. Install the transmission selector lever cable on the selector lever and push the lock downward to lock the selector lever cable adjustment lock.
